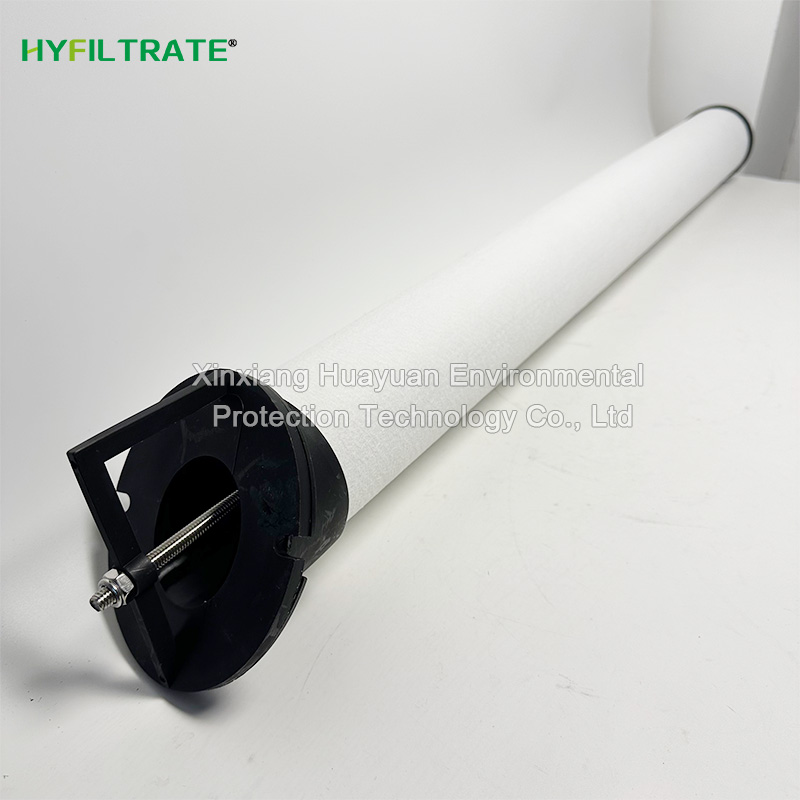

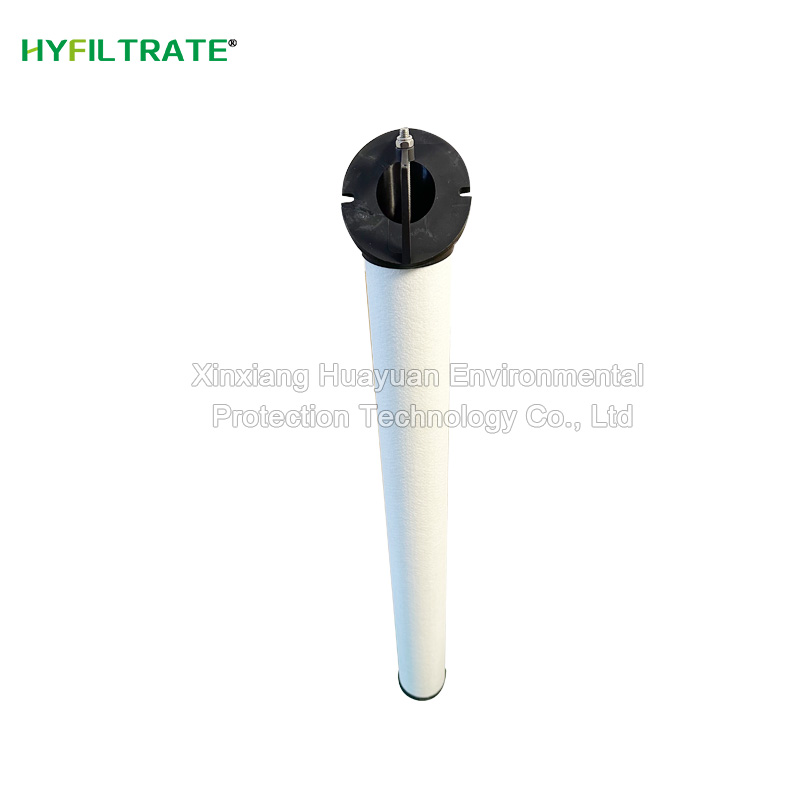

YQ-046A Air Filter cartridge offers a variety of filter materials to choose from, including fiberglass, filter paper, metal mesh, sintered mesh, etc. Specific filter materials include fiberglass filter paper, stainless steel woven mesh, wood pulp filter paper, stainless steel sintered mesh, etc. The precision filter has passed SGS authoritative testing, and its Filter Element performs excellently in filtering suspended oil and particulate matter. The compressed air oil concentration can be reduced from 10.2mg/m ³ to 0.0001mg/m ³, and the filtration efficiency is greater than 99.99%, reaching ISO8573-1 level 0 oil content grade and level 0 particle grade.

The YQ-046A air filter cartridge has the following characteristics:

Diverse filter materials: Various filter materials such as fiberglass, filter paper, metal mesh, sintered mesh, etc. can be selected, such as fiberglass filter paper, stainless steel woven mesh, wood pulp filter paper, stainless steel sintered mesh, etc., which can meet different working conditions and filtration needs.

Strong temperature adaptability: When the skeleton is made of polypropylene material, the temperature resistance is ≤ 70 ℃; When the skeleton is made of stainless steel material, the temperature resistance is ≤ 250 ℃, and the applicable temperature range is -20 ° C~150 ° C, which can be used in a wide temperature range.

Stable pressure resistance: Whether it is a polypropylene material skeleton or a stainless steel material skeleton, the pressure resistance is ≤ 0.4MPa, and it can withstand a certain amount of air pressure to ensure the stability of the filter element during operation.

High filtration efficiency: The precision filter of Youqiao brand has passed SGS authoritative testing, and its filter element performs excellently in the filtration of suspended oil and particulate matter. The compressed air oil concentration can be reduced from 10.2mg/m ³ to 0.0001mg/m ³, and the filtration efficiency is greater than 99.99%, reaching ISO8573-1 level 0 oil content grade and level 0 particle grade.

Filter cloth specification standard: The filter cloth specification is GLY - φ 80 * 925, which has relatively standard specifications for easy installation and replacement, and is also conducive to ensuring consistency in filtration effect.

Low pressure loss: The filter element adopts a pleated filter element design, ensuring a wider filtering surface, thereby reducing pressure loss, reducing compressed air costs, and also helping to extend the life of the filter element.
