Brand: HYFILTRATE
Model: 1625703600
Filtration accuracy: 40μm
Country of origin: China
Filter media: glass fibre
Filter element type: Air compressor oil filter element
Length: 185mm

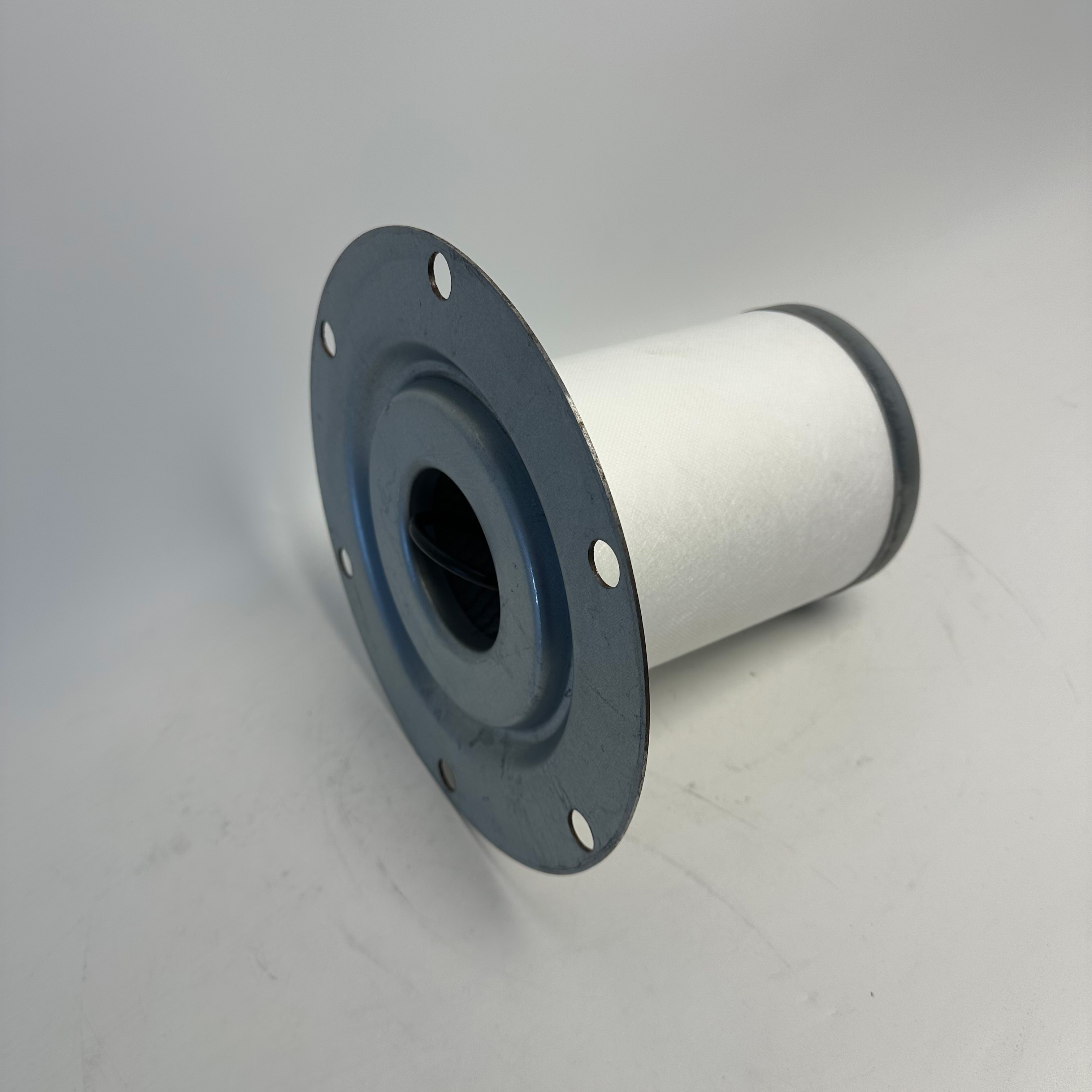

Replace 1625703600 Oil mist separator Filter Element uses micron sized glass fiber filter material (glass fiber filter material), which forms a dense interception layer through winding process, with a filtration accuracy of 1 μ m, and can efficiently capture suspended pollutants such as metal debris and carbon particles in lubricating oil.
The inner and outer composite metal mesh sheath enhances the compressive strength (pressure resistance ≥ 10 bar) and prevents deformation of the filter material.
Filter solid impurities (such as metal wear debris and glial carbides) in the circulating lubricating oil to protect the main engine bearings and rotors from abrasive damage.
Filtering accuracy
Main interception layer: using glass fiber filter material, with a filtration accuracy of 0.1 μ m (efficiently capturing metal debris and carbon particles)
Filtration efficiency: ≥ 99.99% (achieved through multi-layer fiberglass composite structure for deep interception of pollutants)
Pressure resistance and flow characteristics
Parameter value
Initial pressure difference ≤ 0.15MPa (to ensure the smoothness of the oil circuit)
Maximum pressure resistance ≥ 10 bar (metal mesh sheath enhances pressure resistance)
Pollutant carrying capacity ≥ 15g (compliant with ISO 4548-12 standard)
Environmental adaptability
Working temperature: -20 ℃ to 120 ℃ (covering the operating conditions from cold start to high temperature of the air compressor)
Sealing material: Fluororubber gasket (maintains elastic sealing at high temperatures)
