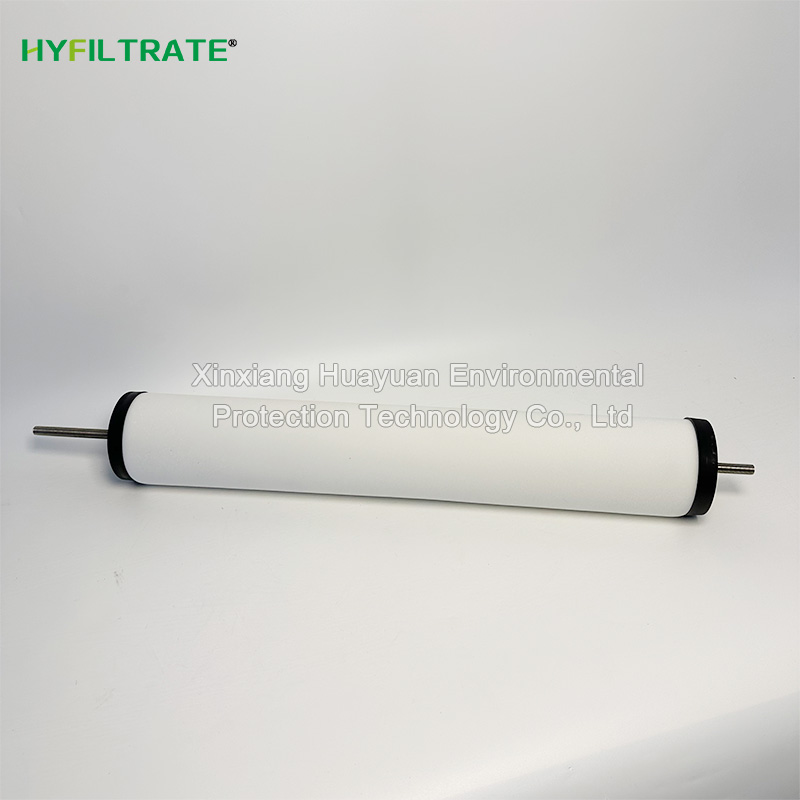

The CFE-31/50AN high-precision Filter Element with high-precision filtration, high pressure resistance, high temperature resistance, and strong compatibility, providing long-term protection for industrial hydraulic systems.
The main features of HYE-31/50AN Hydraulic Filter Element are as follows:
High precision filtering
Adopting a filtration accuracy of 31 μ m, it effectively intercepts particulate pollutants in hydraulic oil and protects precision components of the hydraulic system
High pressure resistance performance
The working pressure range covers 1.0~21.0MPa, and some models can be extended to 42MPa, suitable for industrial high-pressure hydraulic systems
Strong temperature resistance
Fiberglass material can work stably in an environment of -30~115 ℃, suitable for high or low temperature working conditions
Industrial grade applications
Specially designed for heavy industry fields such as rolling mills, continuous casting machines, power plants, and petrochemical equipment, with high pollution capacity and long maintenance cycles
Compatibility Design
Can be used as an alternative model for filter cartridges from brands such as HYDAC and Rexroth, reducing replacement costs
The technical parameters of CFE-31/50AN high-precision filter cartridge are as follows:
1. Core parameters
Filtration accuracy: 31 μ m, in compliance with ISO standard filtration ratio requirements (β value ≥ 200)
Working pressure: 1.0~21.0MPa, some models can be extended to 42MPa
Temperature resistance range: -30~115 ℃, glass fiber filter material ensures high temperature stability
2. Structure and Material
Filter material: imported fiberglass or stainless steel woven mesh, with strong corrosion resistance
Sealing material: fluorine rubber ring or nitrile rubber, excellent oil resistance
Design features: Corrugated folding structure, increased filtering area, low pressure difference
3. Performance indicators
Initial pressure difference: ≤ 0.1MPa (at rated flow rate)
Pollutant carrying capacity: high (specific value needs to refer to the manufacturer's measured data)
Compatible media: hydraulic oil, phosphate ester hydraulic oil, and emulsion
4. Compatible models
Can replace filter cartridges of the same specifications from brands such as HYDAC and Rexroth
