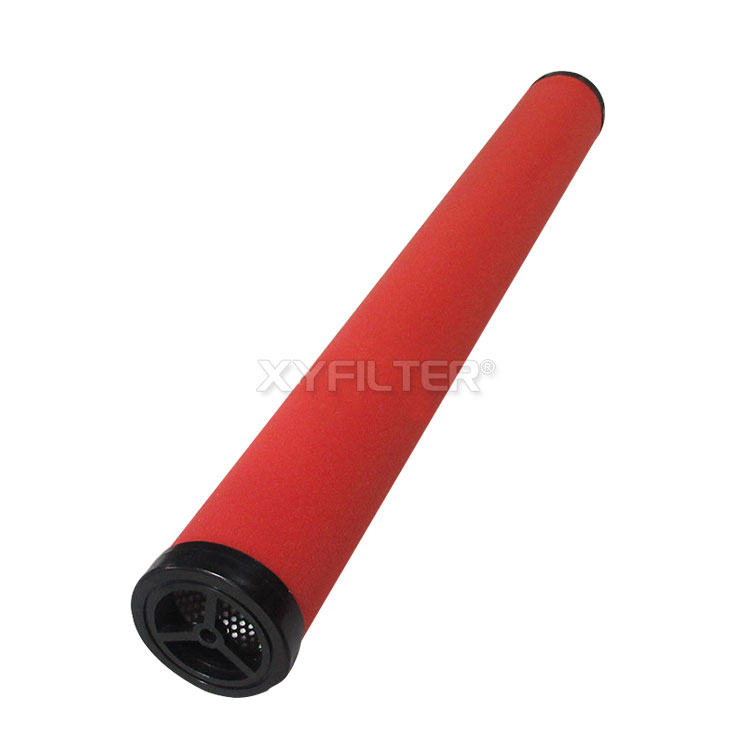

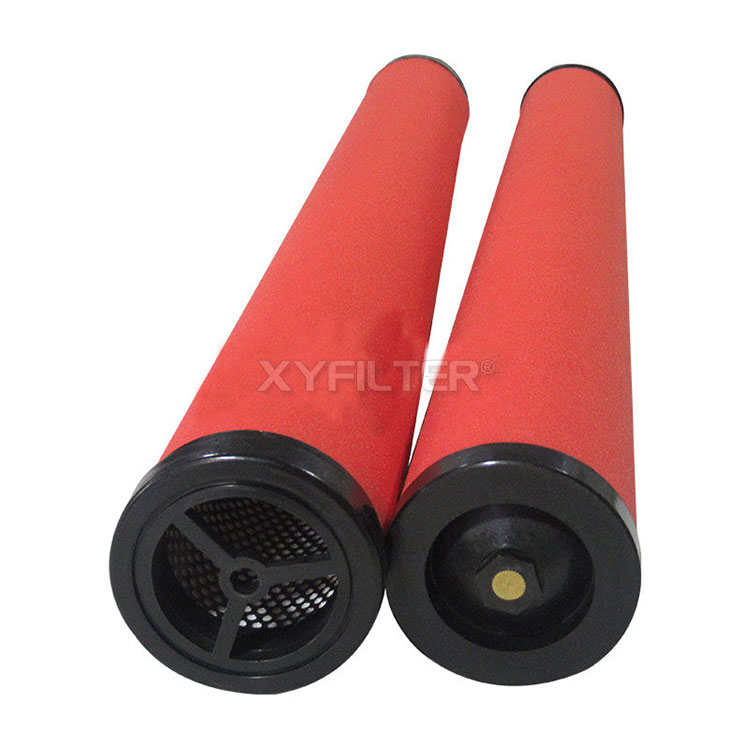

E9-28 Replace Hankison compressed air filter element, coalescing element

Xinyuan Environmental Protection E9-28 replaces the Hankison compressed air filter element for coalescing tiny water vapor and oil mist, which can filter out solid particles as small as 0.01 microns and reach a maximum residual oil content of 0.01ppmw/w. Almost all moisture, dust and oil have been removed. The first-stage multi-fiber media and media filter, filter out the larger particles in the air filter, enter the first two layers of bonded fiber media before the second-stage pre-filter, filt

Basic Barameters

Brand: HUAYUANFILTER

Model: E9-28

Filtration accuracy: 0.1μm

Country of origin: China

Filter media: Oil, water, air

Filter element type: Coalescing filter

Length: standard

jack@cnxyfilter.com

Features Parameters Related

Xinyuan Environmental Protection E9-28 replaces the Hankison compressed air Filter Element for coalescing tiny water vapor and oil mist, which can filter out solid particles as small as 0.01 microns and reach a maximum residual oil content of 0.01ppmw/w. Almost all moisture, dust and oil have been removed. The first-stage multi-fiber media and media filter, filter out the larger particles in the Air Filter, enter the first two layers of bonded fiber media before the second-stage pre-filter, filter out the small condensate of the E3 pre-filter and dryer , Play a protective role, after the dryer, make sure that there is no oil in the air.

Model Class FLOW Rate	E1	E3	E5	E7	E9	Filter Precision (μm)	Residual Oil Component (ppm)
NM3/min	Degreasing deodorant filter element	Super UF Degreasing Filter Element	UF Degreasing Filter Element	Ventilation Pipe Filter Element	Separate Filter Element	Filter Precision (μm)	Residual Oil Component (ppm)
0.57	E1-12	E3-12	E5-12	E7-12	E9-12	E1:0.01	0.001
1	E1-16	E3-16	E5-16	E7-16	E9-16	E3:0.01	0.001
1.72	E1-20	E3-20	E5-20	E7-20	E9-20	E5:0.01	0.01
2.9	E1-24	E3-24	E5-24	E7-24	E9-24	E7:1	1
4.9	E1-28	E3-28	E5-28	E7-28	E9-28	E9:3	5
7.2	E1-32	E3-32	E5-32	E7-32	E9-32
11	E1-36	E3-36	E5-36	E7-36	E9-36
14	E1-40	E3-40	E5-40	E7-40	E9-40
18	E1-44	E3-44	E5-44	E7-44	E9-44

Technical Parameter

This series of compressed air filters is our replacement Hankison air filter. It adopts our new design and technology, with high efficiency and precision. It is widely used in profile air filters for different machines and industries.

Replace Hankison compressed air filter (E9-28) ----Specifications

Filter code: C-level, T-level, A-level, H-level

Filtration accuracy: 3μm, 1μm, 0.01μm, 0.01μm

Residual oil content: 5ppm, 1ppm, 0.01ppm, 0.001ppm
