Brand: HUAYUANFILTER
Model: P-SRF 05/25
Filtration accuracy: 0.1μm
Country of origin: China
Filter media: air
Filter element type: Micron precision filter
Length: 128mm

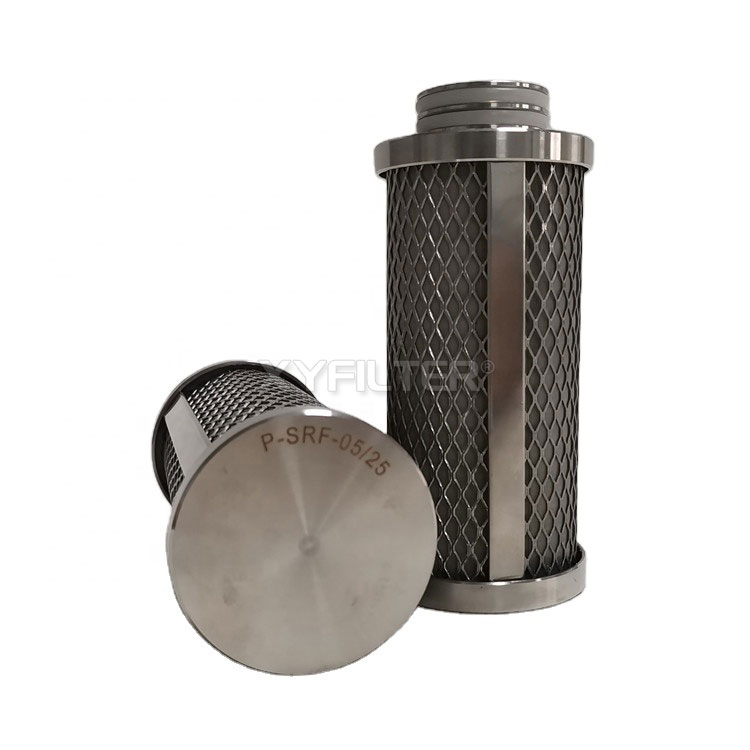

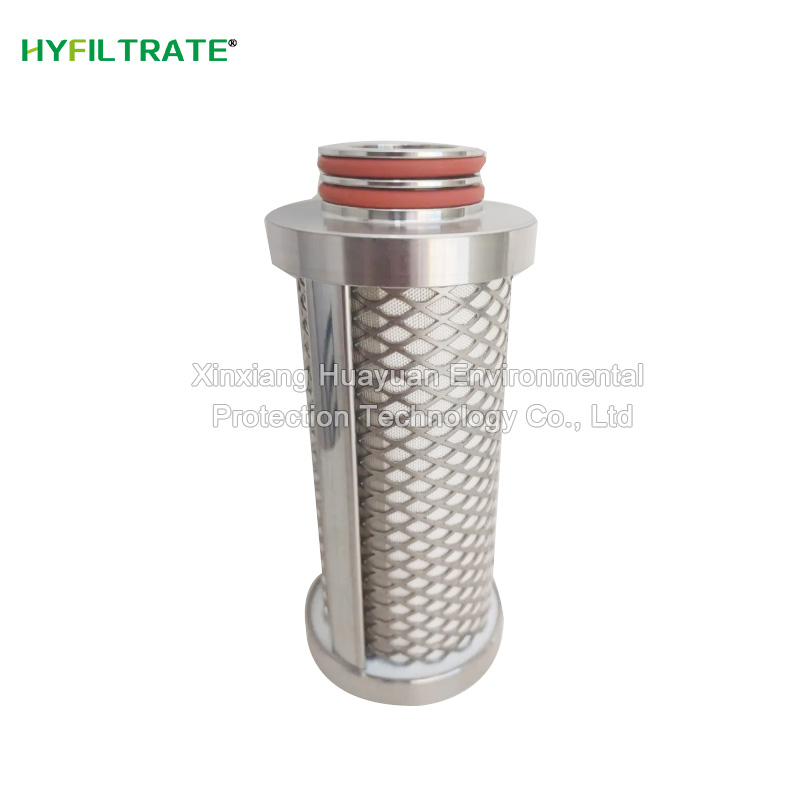

HUAYUANFILTER compressed air depth Filter Element P-SRF 05/25 is used for high efficiency aseptic filtration of compressed air, process air and technical gas. P-SRF series filter element is a kind of depth filter element. The inner and outer lining plates and end caps are made of stainless steel. The filter material we provide is glass fiber. For all particles of 0.01 µm and larger, our replacement P-SRF Air Filter element has a retention rate of ≥99.99998% to ensure safe and sterile filtration of process gases. P-SRF has low pressure drop, high dirt holding capacity, high strength and long service life.
Related models
| P-SRF 03/10 | P-SRF 07/30 |
| P-SRF 04/10 | P-SRF 10/30 |
| P-SRF 04/20 | P-SRF 15/30 |
| P-SRF 05/20 | P-SRF 20/30 |
| P-SRF 05/25 | P-SRF 30/30 |
| P-SRF 07/25 | P-SRF 30/50 |
| P-SRF 05/30 |
Specification
Maximum temperature: 150
Particle retention rate: 99.9999% (0.01 μm)
Replace the filter element within 12 months or when the pressure drop reaches 600 mbar or the specified number of disinfection cycles.
size
Diameter: 62 mm
Length: 128 mm
application:
1. Electronic products
2. Food and beverages
3. Chemical
4. Petrochemical
5. General industrial applications
