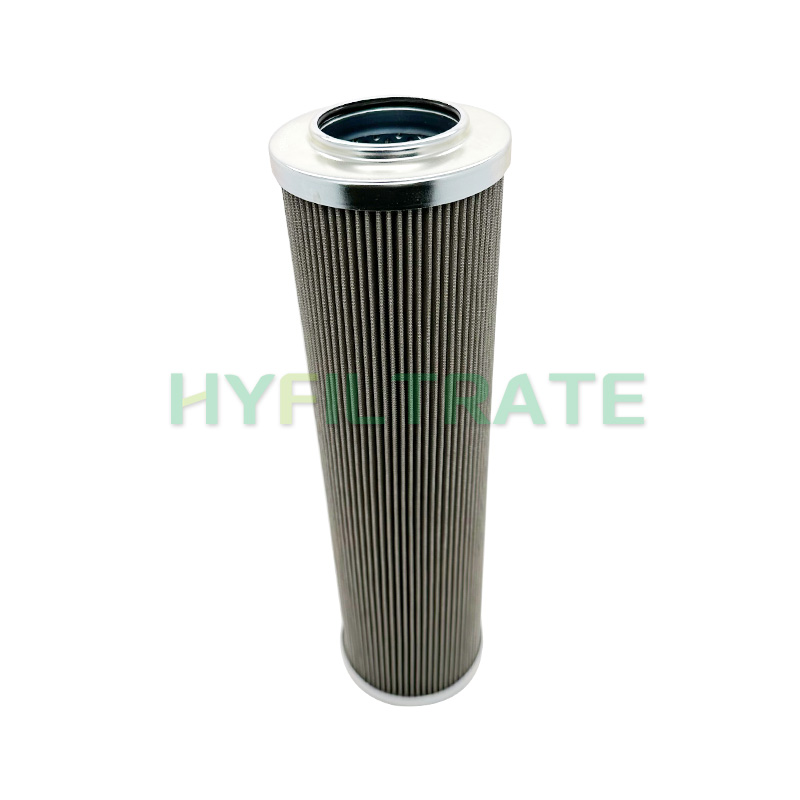

1300 R 010 ON /-B6 Replaces HYDAC oil filter element

The 1300 R 010 ON/- B6 replacement HYDAC oil filter element uses 10 micron glass fiber filter material, which has good demulsification performance and long service life. It can be used to filter metal particles, adhesive substances, and other impurities in hydraulic oil.According to the applicable environment of the filter, we can simply classify it into several categories: D series high-pressure filter, DN series medium pressure filter, R series return oil filter, S series oil suction filter, e


Basic Barameters

Brand: HUAYUAN FILTER

Model: 1300 R 010 ON /-B6

Filtration accuracy: 10um

External diameter: 143.5

Length: 483

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: pleated filter element

Country of origin: China

The 1300 R 010 ON/- B6 replacement HYDAC oil Filter Element uses 10 micron glass fiber filter material, which has good demulsification performance and long service life. It can be used to filter metal particles, adhesive substances, and other impurities in hydraulic oil.


According to the applicable environment of the filter, we can simply classify it into several categories: D series high-pressure filter, DN series medium pressure filter, R series return oil filter, S series oil suction filter, etc. The filter elements of the same series are basically the same in appearance, but there are differences in size and size. The 1300R010ON domestic alternative Hedeke hydraulic Oil Filter Element is the R series low-pressure filter element, and the working pressure in the general use environment is between 3-16Mpa, The filter material is 25 microns of glass fiber filament, with high pollution capacity, high breathability, and good demulsification performance as its main characteristics. It replaces the Hedek filter element and produces high-quality substitute products with high quality. Customers from all walks of life are welcome to call and order!


Technical Parameter

Product model: 1300R010ON

Filter element type: hydraulic oil filtration

Height: 483mm

Outer diameter: 143.5mm

Inner diameter of upper cover: 95.5mm

Inner diameter of lower cover: 96.5mm

Height without steps: 458.5mm

Step height: 24.5mm

Bypass valve type: SI type

Sealing ring type: NBR


Alternative HYDAC filter element models are complete:

1264140 1300R020ON/-B1

1263755 1300R020ON/-B6

1263062 1300R020ON/-KB

R020ON/-SFREE

R020ON/-SFREE

R020ON/-SFREE-B6

1300R020ON/-SFREE-B6

R020ON/-SFREE-KB

1300R020ON/-SFREE-KB

1263058 1300R020ON/-V

1263767 1300R020ON/-V-B6

1263767 1300R020ON/-V-B6

1263763 1300R020ON/-V-KB

R020ON/PO

1300R020ON/PO

R020ON/PO/-V

1300R020ON/PO/-V

301449 1300R020P

311299 1300R020P/-B6

311299 1300R020P/-B6

314846 1300R020P/-KB

314846 1300R020


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
