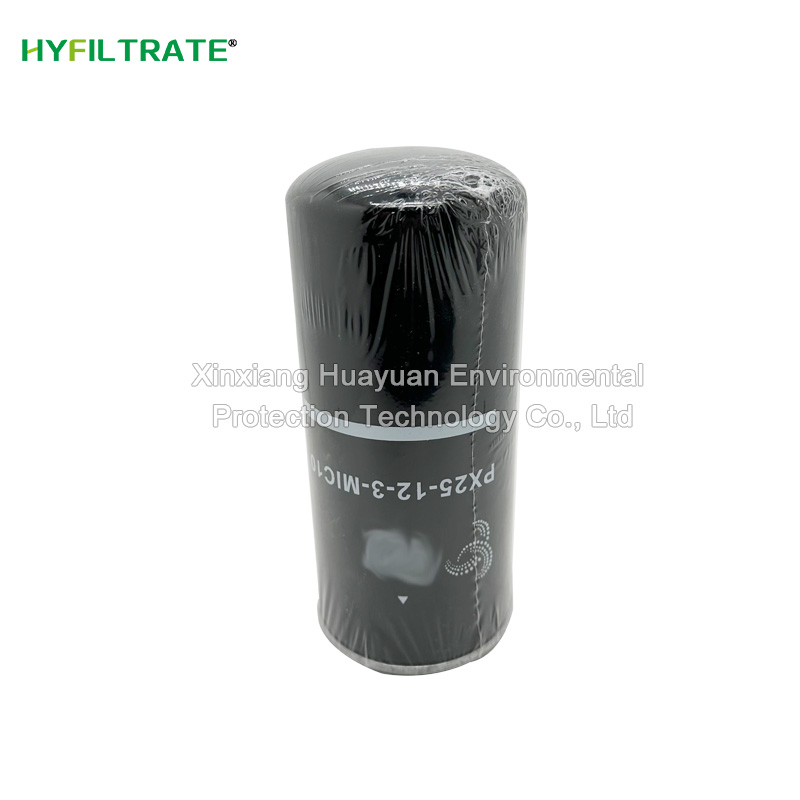

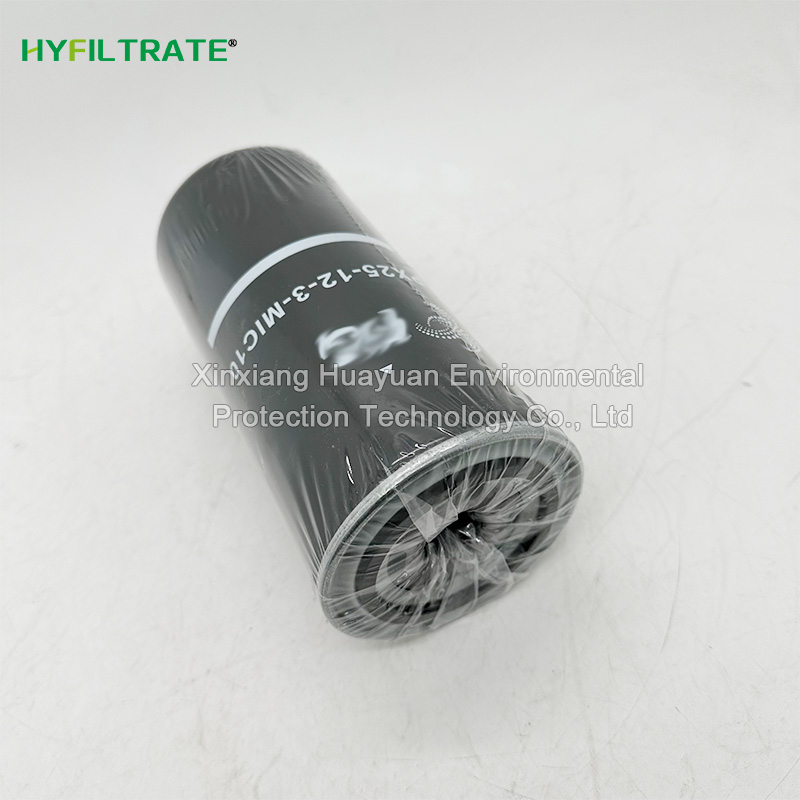

Replace FG PX25-12-3-MIC10 hydraulic oil filter element

This PX25-12-3-MIC10 hydraulic oil filter has the following characteristics:-High filtration accuracy: capable of filtering out impurities of 10 microns, effectively ensuring the cleanliness of hydraulic systems, reducing component wear, and extending equipment service life.-Strong dirt absorption capacity: can accommodate a large amount of dirt and impurities, reduce the frequency of filter replacement, and improve the continuous operation time of the equipment.-Good pressure difference stabili

Basic Barameters

Brand: HYFILTRATE

Model: PX25-12-3-MIC10

Filtration accuracy: 10μm

External diameter: Standard size

Length: Standard size

Filter media: glass fibre

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

This PX25-12-3-MIC10 hydraulic oil filter has the following characteristics:

-High filtration accuracy: capable of filtering out impurities of 10 microns, effectively ensuring the cleanliness of hydraulic systems, reducing component wear, and extending equipment service life.

-Strong dirt absorption capacity: can accommodate a large amount of dirt and impurities, reduce the frequency of filter replacement, and improve the continuous operation time of the equipment.

-Good pressure difference stability: During operation, it can maintain a relatively stable pressure difference, ensure stable flow of the hydraulic system, and guarantee the normal operation of the system.

-Compact structure: The rotary design makes installation and disassembly more convenient, saving installation space and facilitating maintenance and replacement.

-Wide applicability: In addition to being suitable for hydraulic oil filtration, it can also be used for lubricating oil filtration and can be used in lubrication and hydraulic systems of various mechanical equipment.

Technical Parameter

-Filtering accuracy: 10 microns, can effectively intercept particles and impurities of 10 microns and above, ensuring the cleanliness of hydraulic oil.

-Rated flow rate: Generally, this specification of filter element may have a rated flow rate of around 25 liters per minute (slightly different manufacturers), which can meet the oil flow requirements of a certain scale of hydraulic system.

-Work pressure: The typical range of work pressure that can be withstood is around 1-3MPa, which is suitable for the pressure environment of most conventional hydraulic systems.

-Filter material: It is highly likely to use cellulose filter media (MIC), which has good filtration performance and a certain pollutant holding capacity.

-Interface size: The specific interface size should refer to the product manual and is generally compatible with common hydraulic system pipeline connection methods.
