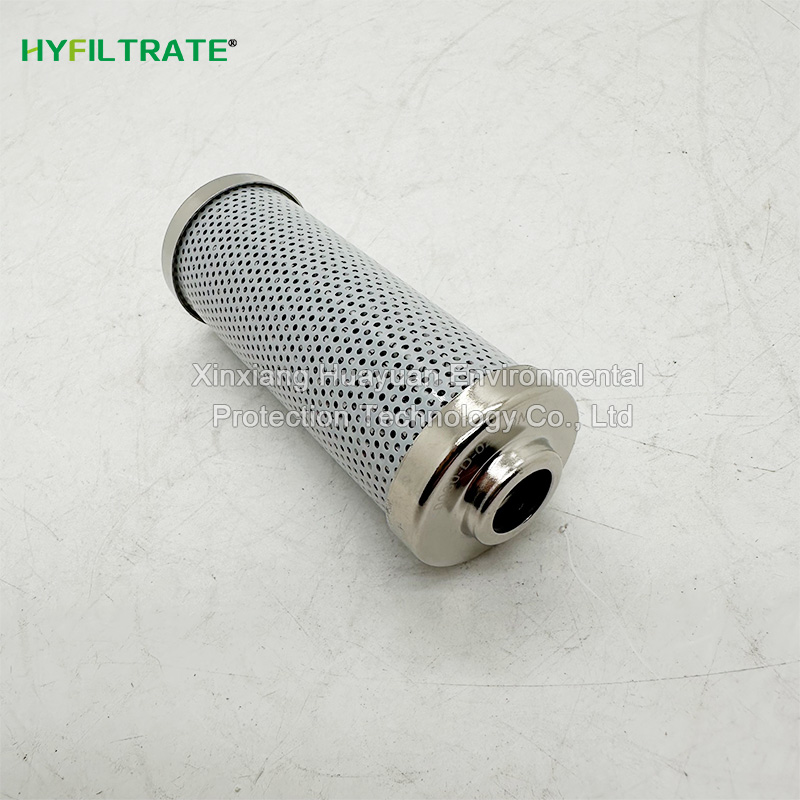

Replace HYDAC 0030-D-020-ON hydraulic oil Filter Element is mainly used in the oil circuit of hydraulic systems, which can remove metal powder and other mechanical impurities generated by the wear of various components in the hydraulic system, keep the oil circuit clean, and extend the service life of the hydraulic system.

-Precise filtration: The filtration accuracy reaches 20 μ m, using Optimicron low-pressure filter material (glass fiber), which can efficiently intercept pollutants such as metal particles and mechanical impurities in hydraulic oil, ensuring the cleanliness of the oil.

-High pressure adaptation: The "D" in the model represents the high-pressure property, which can adapt to high-pressure environments such as 100bar, 210bar, 420bar, etc. The structure has strong stability and is not easily damaged due to pressure fluctuations.

-Excellent pollutant holding capacity: The foldable filter design increases the filtration area, enhances the pollutant holding capacity, extends the replacement cycle, and reduces maintenance frequency.

-Reliable material: The filter material is glass fiber, and the sealing material is nitrile rubber (NBR), which has good oil resistance and is suitable for oil media. The working temperature range is -10 ℃ -100 ℃, and the adaptability is strong.

-Convenient replacement: As a standardized replacement filter element, the size specifications are clear (inner diameter 12mm, outer diameter 35mm, length 94mm), easy installation and replacement, and high adaptability.
