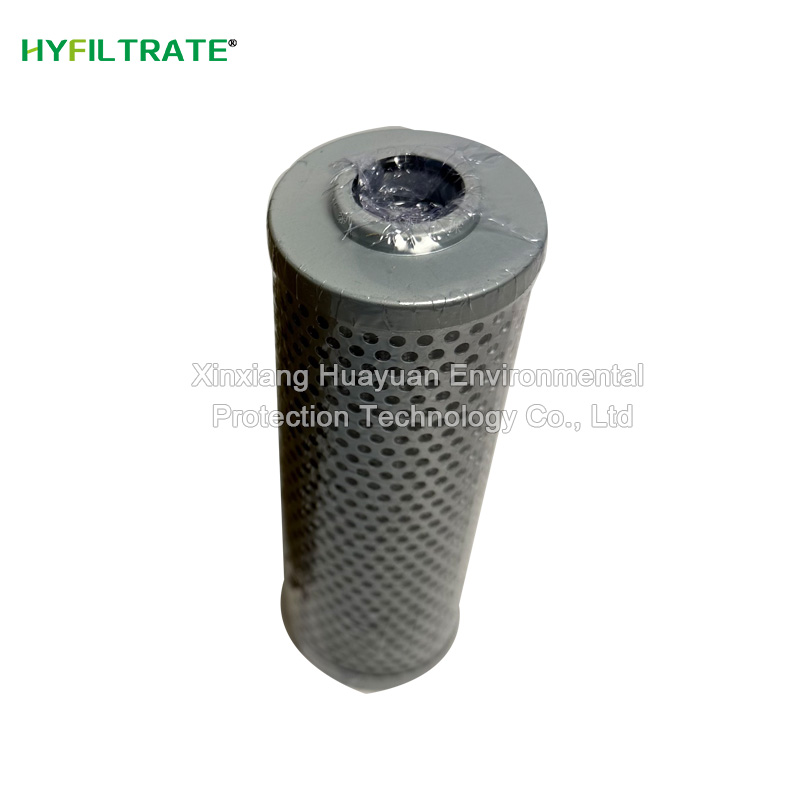

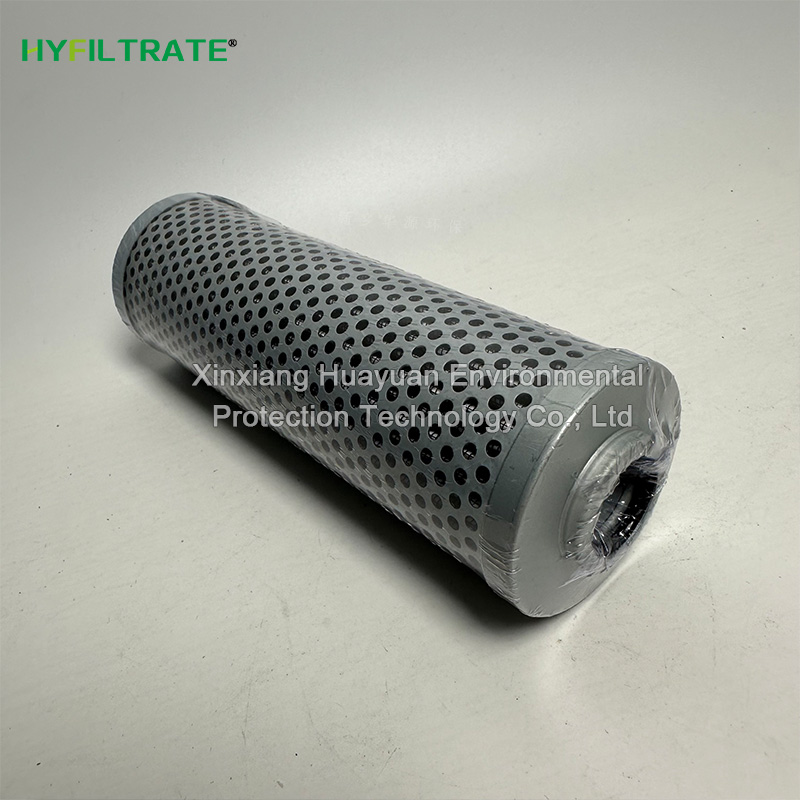

HX-25x20P is a hydraulic oil Filter Element used in hydraulic lubrication systems to filter out mechanical impurities, aged gum, etc. in the system, ensuring normal operation of the system.

The HX-25x20P hydraulic Oil Filter Element has the following characteristics:

-High filtration accuracy: The filtration accuracy is usually 20 μ m, which can effectively filter out impurities such as solid particles and gel like substances in hydraulic oil, ensuring the cleanliness of the hydraulic system.

-Strong oil flow capacity: The rated flow rate is generally 25L/min, which can meet the filtering requirements of the corresponding hydraulic system, allowing hydraulic oil to pass smoothly without affecting the normal operation of the system.

-Large pollutant capacity: High quality filter materials such as imported glass fiber are often used, with a deep filtration structure that can accommodate more impurities and extend the replacement cycle.

-Good compressive performance: The end cap and skeleton are often made of carbon steel, which has a certain strength, can withstand certain pressure, is not easily deformed or damaged, and can work stably in hydraulic systems.

-Wide working temperature range: The applicable temperature is generally between -10 ℃ and+110 ℃, which can play a normal filtering role in a wide temperature range and adapt to different working environments.

-Differential pressure transmission protection: Some filter elements are equipped with differential pressure transmission devices. When the filter element is contaminated and blocked to a pressure difference of 0.35MPa at the inlet and outlet, a switch signal will be sent to remind users to replace the filter element in a timely manner and protect the safety of the system.
