HX-100 * 20Q hydraulic oil filter element

Features Parameters Related

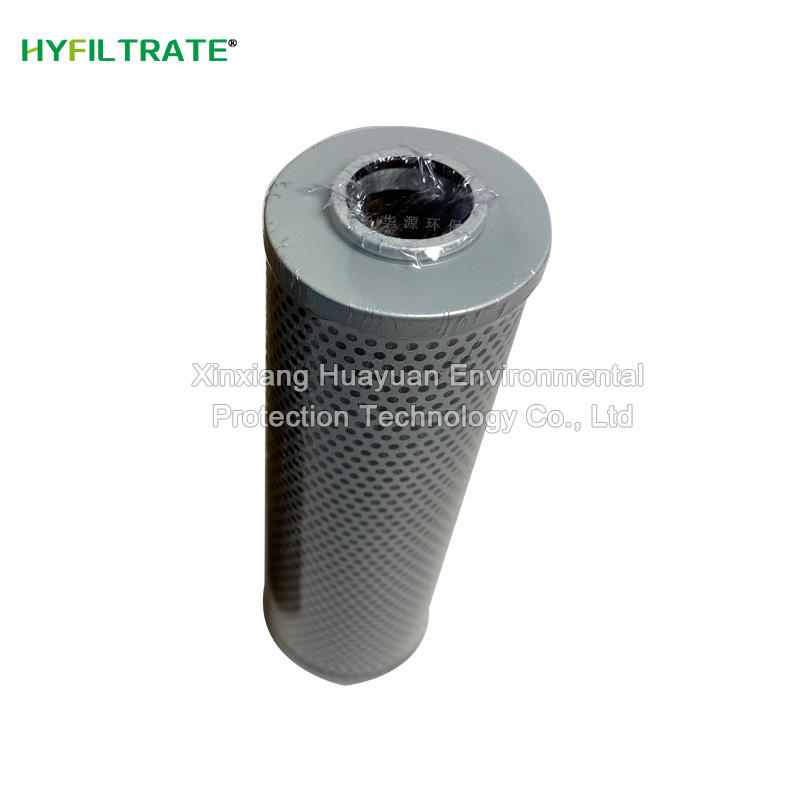

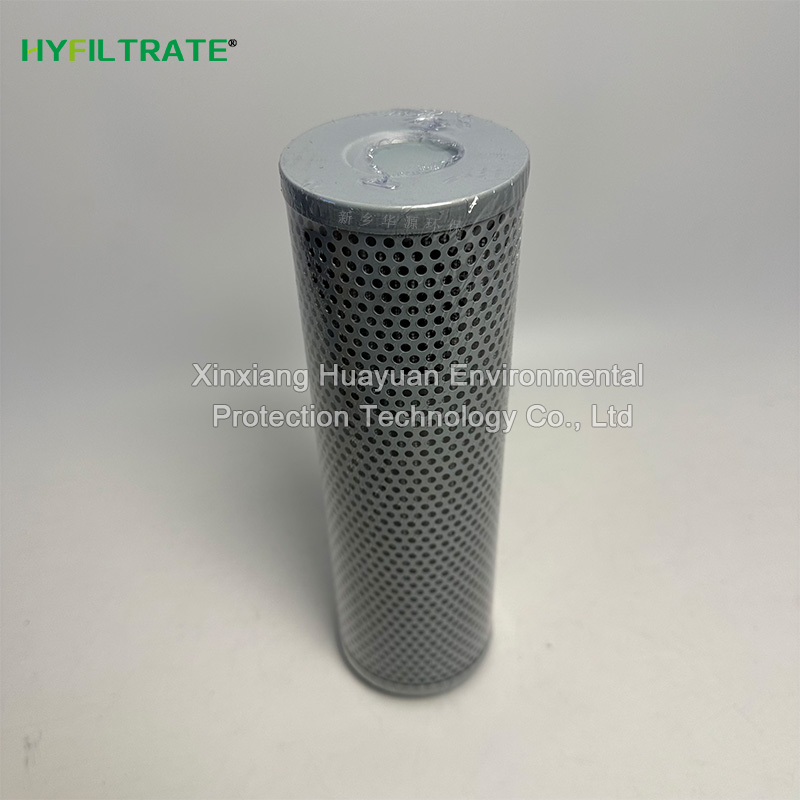

The HX-100 * 20Q hydraulic oil Filter Element is composed of filter material (mostly glass fiber, stainless steel mesh, etc., responsible for filtering impurities), skeleton (providing support for the filter material to ensure that the filter element does not deform under certain pressure, common materials include carbon steel, stainless steel, etc.), end cap (used to seal both ends of the filter element and connect with the hydraulic system pipeline, generally made of metal or engineering plastic), and other parts.

The HX-100 * 20Q hydraulic Oil Filter Element has the following characteristics:

Excellent filtering performance

-Accuracy standard: The filtration accuracy reaches 20 μ m, which can effectively intercept impurities larger than 20 microns in size such as metal particles, dust, and gum in hydraulic oil, ensuring the cleanliness of the hydraulic system.

-Efficient filtration: High quality filter materials, such as glass fiber or stainless steel filters, have a large specific surface area and complex pore structure, strong deep filtration ability, can efficiently adsorb and intercept impurities, high pollutant holding capacity, and extend the service life of filter cartridges.

Good traffic adaptability

The rated flow rate is 100L/min, which can meet the corresponding flow requirements and ensure the smooth operation of the hydraulic system, ensuring that the hydraulic oil passes through the filter element smoothly without pressure fluctuations caused by filter element flow limitation, and ensuring stable operation of the system.

Durable and sturdy structure

-Strong compression resistance: Supported by a sturdy skeleton, such as carbon steel or stainless steel, it can withstand the pressure of hydraulic systems during operation, is not easily deformed or damaged, and ensures that the filter element can perform its filtering function normally.

-Good sealing performance: The end cap adopts reliable sealing design and high-quality sealing materials, which are tightly connected to the hydraulic system pipeline to prevent unfiltered oil from bypassing and ensure the filtering effect.

Wide applicability

-Environmental adaptability: It can work within a wide temperature and pressure range, adapt to hydraulic systems under different working conditions and environmental conditions, such as engineering machinery, industrial equipment, etc., and meet the filtration needs of various hydraulic systems.

-Media compatibility: It has good compatibility with various hydraulic media such as common mineral based hydraulic oil and synthetic hydraulic oil, and will not undergo chemical reactions with the media, affecting filtration performance and oil quality.

Convenient maintenance

The structural design is easy to install and disassemble. When the filter element reaches saturation after a period of use, the replacement operation is simple, and a new filter element can be quickly installed, reducing equipment downtime, maintenance costs, and labor workload.

Technical Parameter

The common technical parameters for the HX-100 * 20Q hydraulic oil filter element are as follows:

Filter relevant parameters

-Filtering accuracy: 20 μ m, capable of effectively intercepting solid particles, impurities, etc. with a diameter greater than 20 microns, ensuring the cleanliness of the oil entering the hydraulic system.

-Pollutant carrying capacity: Depending on the quality and structure of the filter material, this specification of filter element is generally made of high-quality filter material. It has a higher pollutant carrying capacity and can accommodate more impurities, extending the replacement cycle. Usually, it can reach several grams to tens of grams.

-Filter material type: commonly used as glass fiber filter material, with efficient filtration performance and large pollutant holding space; Stainless steel woven mesh filter material may also be used, which has good strength and corrosion resistance.

Flow and pressure parameters

-Rated flow rate: 100L/min, which means that under normal working conditions, the volume of hydraulic oil that can pass through the filter element per minute is 100 liters, ensuring the supply of oil to the hydraulic system.

-Initial pressure difference: The pressure difference between the inlet and outlet of the filter element when it is newly put into use is generally small, usually around 0.03-0.05MPa, to ensure smooth passage of oil.

-Maximum working pressure: The maximum pressure that the system can withstand, generally between 1-3 MPa, depends on the structural strength and material of the filter element.

-Blockage message pressure difference: When the filter element is blocked by impurities to a certain extent and the pressure difference between the inlet and outlet reaches the set value (such as 0.3-0.4MPa), the blockage message device will be triggered to remind the user to replace the filter element in a timely manner.

Working environment parameters

-Working temperature range: generally between -10 ℃ and+110 ℃, can adapt to different temperature environments under different working conditions, but the specific range may vary due to different materials such as filter materials and end caps.

-Applicable media: Suitable for various common hydraulic working media such as mineral oil-based hydraulic oil and synthetic hydraulic oil.

External structural parameters

-External dimensions: including the diameter, length, etc. of the filter element. Specific dimensions may vary slightly depending on the manufacturer and should refer to the product specifications.

-Interface form: Common interface forms include threaded interfaces, flange interfaces, etc., which facilitate connection with hydraulic system pipelines.
