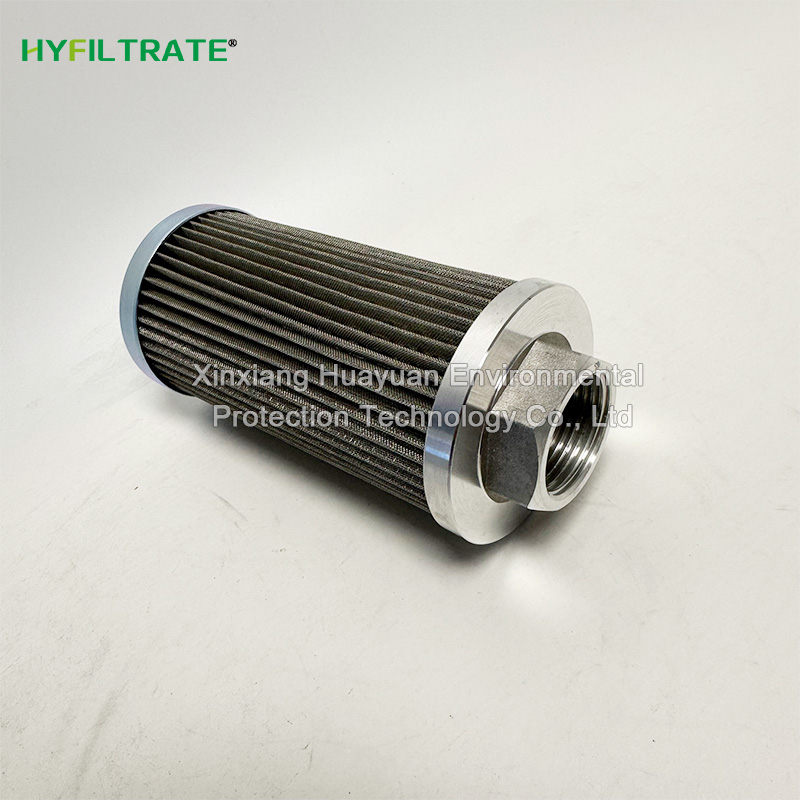

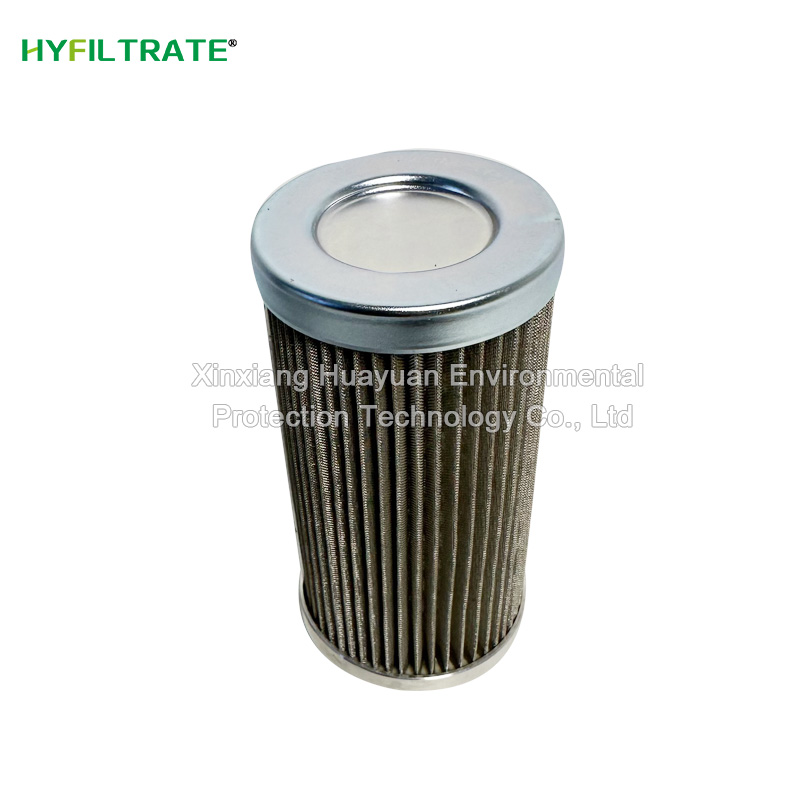

The replacement MP STR0704SG1M250P01 hydraulic oil Filter Element is made of washable metal mesh with a filtration accuracy of 250 μ m. It can be installed in the oil tank or on the side wall of the tank, and can be connected with BSP, NPT pipe threads, etc.

The STR0704SG1M250P01 filter element has the following characteristics:

High filtration accuracy: It can effectively filter out solid particles and gel like substances in hydraulic oil. The filtration accuracy of this series of filter elements can reach 250 μ m, which can effectively control the pollution level of the working medium and protect the precision components in the hydraulic system.

High quality and durable material: Made of stainless steel material, it has good corrosion resistance and wear resistance, can be used for a long time in harsh working environments, and is easy to clean and reuse.

Strong pollutant holding capacity: It may adopt a folding or multi-layer structure design, with a larger filtering area, thus having a higher pollutant holding capacity, which can reduce the frequency of filter element replacement and lower maintenance costs.

Large flow processing capacity: The nominal flow rate can reach up to 900L/min, which can meet the needs of high flow hydraulic systems and ensure the normal oil supply of the system.

Wide working temperature range: suitable temperature range is -25 ℃ to+110 ℃, and can operate stably under different environmental temperatures and working conditions.

There are various connection methods: including BSP, NPT pipe threads, etc., which facilitate the connection with various hydraulic system pipelines and have strong adaptability.

Equipped with safety protection function: It can be optionally equipped with a bypass valve. When the filter element is blocked and the pressure difference is too large, the bypass valve will open to prevent the system from being damaged due to high pressure and ensure the safe operation of the system. It can also be equipped with visual or electronic transmitters to facilitate users to timely understand the blockage of the filter element, so as to replace the filter element in a timely manner.
