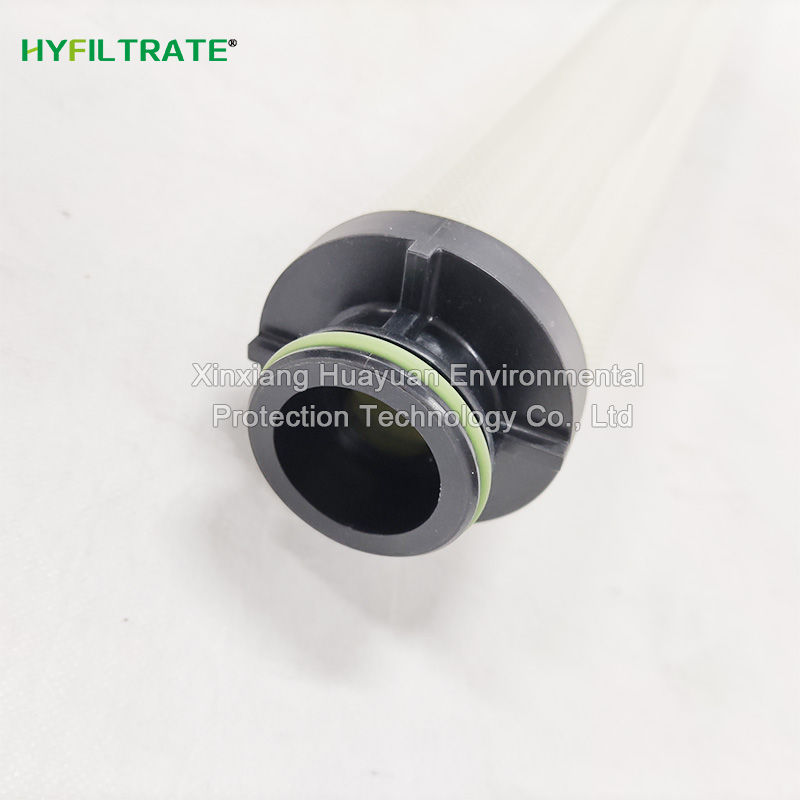

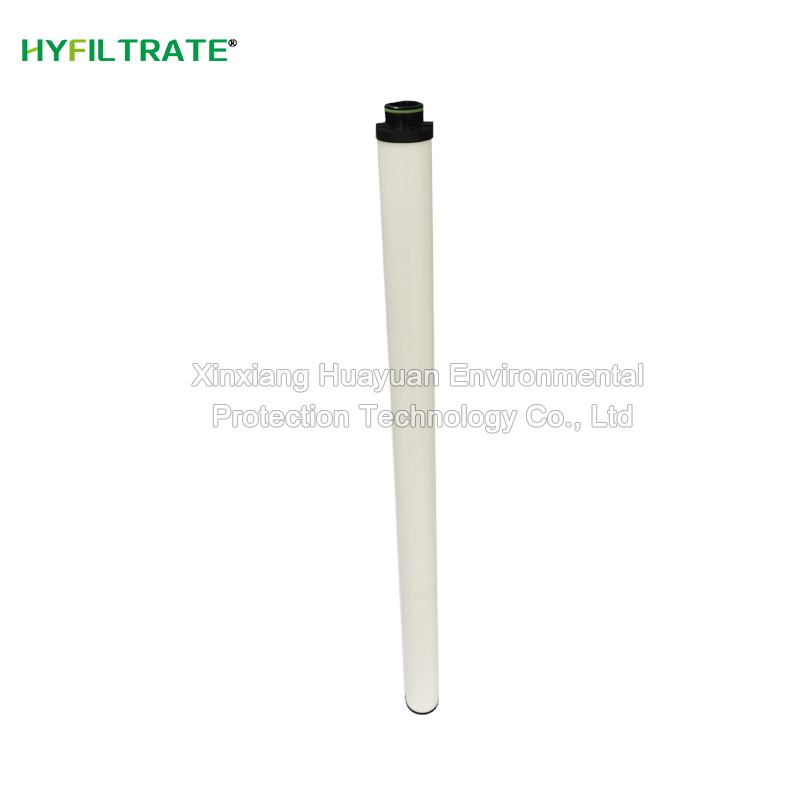

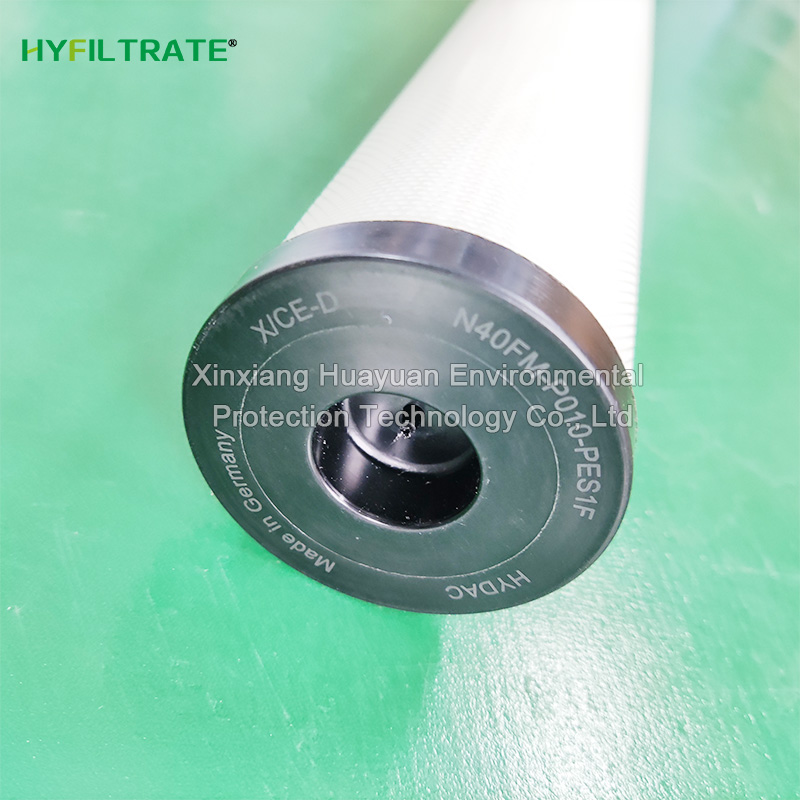

Replace HYDAC N40FM-P010-PES1F hydraulic oil filter element

Features Parameters Related

Replacing HYDAC N40FM-P010-PES1F hydraulic oil Filter Element effectively removes solid particles, colloids, pollutants and other impurities in the oil, maintains the cleanliness of the hydraulic oil, and protects various components in the hydraulic system, such as pumps, valves, cylinders, etc., avoiding wear, jamming and other faults caused by impurities, ensuring stable and efficient operation of the hydraulic system.

The N40FM-P010-PES1F Hydraulic Filter Element has the following characteristics:

Excellent filtering performance

High precision filtration: With a filtration accuracy of 10 μ m, it can effectively intercept particles and impurities larger than 10 microns in hydraulic oil, such as metal debris, dust, oxides, etc., ensuring the cleanliness of the oil entering the hydraulic system and providing reliable protection for system components.

High filtration efficiency: Using high-quality polyether sulfone (PES) filter material, it has a large specific surface area and a fine and uniform microporous structure, which can quickly capture impurities and allow hydraulic oil to pass through the filter element efficiently. The filtration efficiency far exceeds similar products and can process a large amount of oil in a short period of time, ensuring stable operation of the system.

High pollutant holding capacity: The special structure of the filter material endows it with a high pollutant holding capacity, which can accommodate more impurities without quickly clogging, extending the service life of the filter element, reducing replacement frequency, lowering maintenance costs and downtime.

High quality and durable materials

Strong chemical stability: Polyether sulfone filter material has good chemical resistance to various hydraulic oil media, such as mineral oil, synthetic oil, water ethylene glycol, etc. It is not easily corroded by additives, solvents, etc. in the oil and can maintain stable filtration performance in different chemical environments.

High mechanical strength: The filter housing is made of high-strength engineering plastic or metal, which can withstand high working pressure and maintain structural integrity even under hydraulic system pressure fluctuations or high-pressure conditions, avoiding filter failure caused by filter damage. At the same time, the filter material also has a certain mechanical strength and is not easily damaged by high-pressure oil flushing.

Good adaptability and universality

Compatible with multiple systems: Designed to meet industry standards, it can adapt to various brands and models of hydraulic systems, whether it is hydraulic equipment on industrial production lines, or hydraulic devices in engineering machinery, ships, aerospace and other fields, with a wide range of applications.

Easy to install and replace: The structural design is reasonable, the installation interface meets universal specifications, making it easy to quickly install and replace on different devices, reducing installation difficulty and time costs, and facilitating equipment maintenance.

Technical Parameter

The technical parameters of N40FM-P010-PES1F hydraulic filter element are as follows:

Filtering accuracy related

Absolute filtration accuracy: 10 μ m, which means that the filter element can intercept more than 98.7% of particles larger than 10 microns, effectively ensuring the cleanliness of hydraulic oil and protecting hydraulic system components from larger particle wear.

Traffic parameters

Rated flow rate: Based on similar products from Hedeke, the rated flow rate of this type of filter element is estimated to be around 40L/min, which means that under standard operating conditions, the volume of hydraulic oil that can be smoothly filtered per minute is about 40 liters. But the actual flow rate will be affected by factors such as the viscosity, temperature, and degree of filter blockage of the oil.

Pressure parameters

Work pressure: The working pressure range that can usually be withstood is between 0-35MPa, which can adapt to the pressure environment of most conventional hydraulic systems, ensuring that the filter element can still work normally and maintain structural integrity when the system pressure fluctuates.

Initial pressure difference: When the filter element is brand new and clean, the initial pressure loss generated by the oil passing through the filter element is relatively small, generally ≤ 0.03MPa. As impurities accumulate during use, the pressure difference will gradually increase. When the specified replacement pressure difference (such as 0.7MPa) is reached, the filter element needs to be replaced.

Structural parameters of filter element

Filter material: Made of polyethersulfone (PES) material, it has good chemical stability and mechanical strength, strong resistance to various hydraulic oil media, and excellent filtration performance.

Filter size: The specific external dimensions may vary depending on the installation location and equipment, but the general length is about 200-300mm and the outer diameter is around 80-120mm (for reference only, actual dimensions should refer to the product manual or consult the supplier).

Interface types: Common interface types include threaded interfaces, quick change interfaces, etc., which are convenient for connecting with hydraulic system pipelines. The specific interface specifications need to be determined according to the actual situation of the product.
