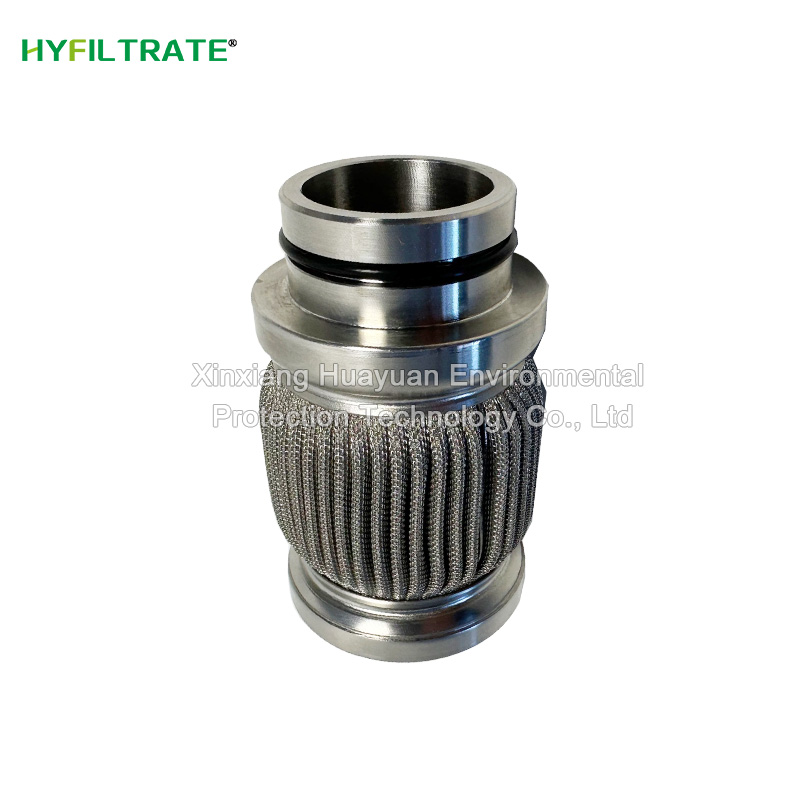

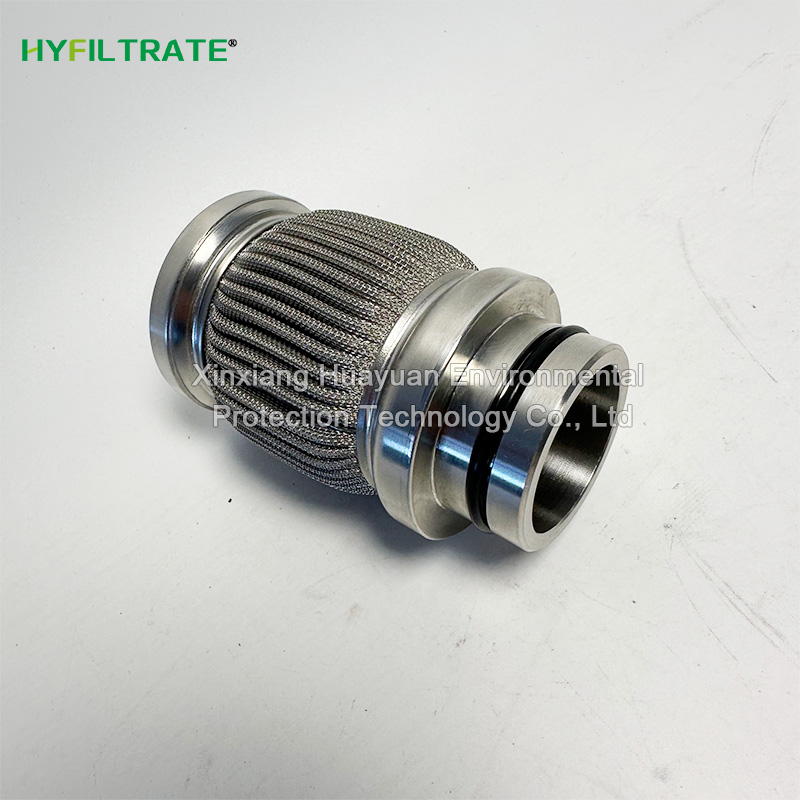

SZ-0-50-D-V-2403001 Filter Element integrates high-precision filtration, high pressure resistance, strong compatibility, and intelligent maintenance, and is an efficient and reliable guardian of industrial hydraulic systems

The characteristics of SZ-0-50-D-V-2403001 hydraulic Oil Filter Element are as follows

1. High precision filtering performance

Filter range: Supports particle filtration of 2-200 μ m, some models can reach precision level of 1-5 μ m

Filtration efficiency: β value ≥ 200 (interception rate for specific particle size pollutants ≥ 99.5%)

2. High pressure resistance and strong mechanical properties

Working pressure: Maximum pressure resistance of 21MPa, suitable for high-pressure hydraulic systems

Structural strength: supported by stainless steel frame or thickened steel plate, resistant to differential impact pressure

3. Material and process advantages

Filter material: Glass fiber (efficient dirt absorption) or stainless steel woven mesh (corrosion-resistant, washable and reusable)

Sealing design: Fluorine ring sealing, some models include bypass valve to prevent blockage

4. Wide environmental adaptability

Temperature range: -30 ℃~110 ℃ (compatible with hydraulic oil, water ethylene glycol and other media)

Application areas: covering heavy industry scenarios such as metallurgy, petrochemicals, power, engineering machinery, etc

5. Intelligence and maintenance convenience

Differential pressure monitoring: Some models integrate a transmitter, which automatically alarms when blocked (such as triggered by 0.35MPa)

Long life design: large filtering area+anti-aging filter material, reducing replacement frequency
