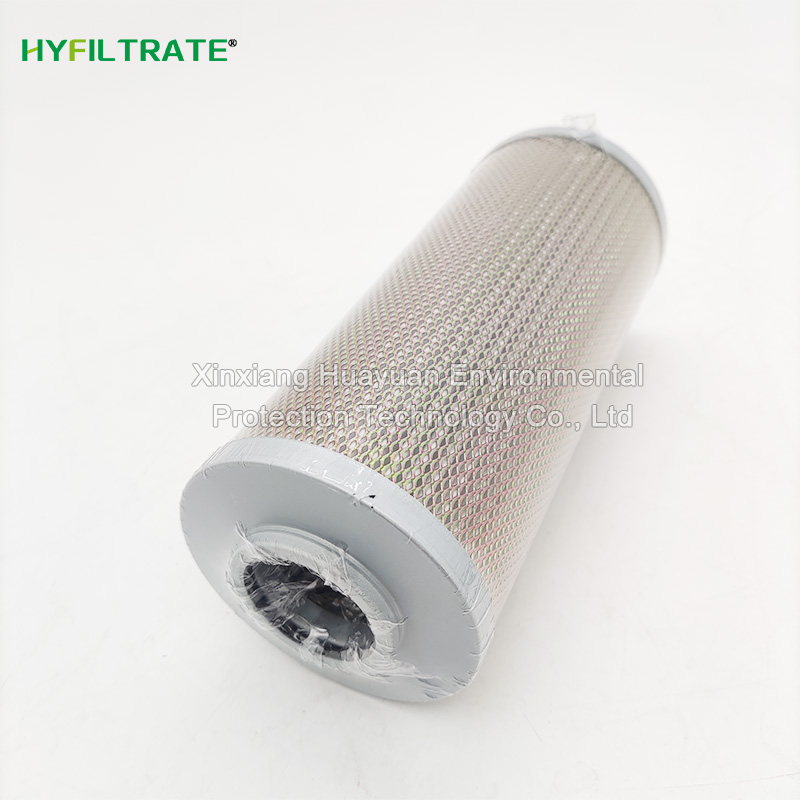

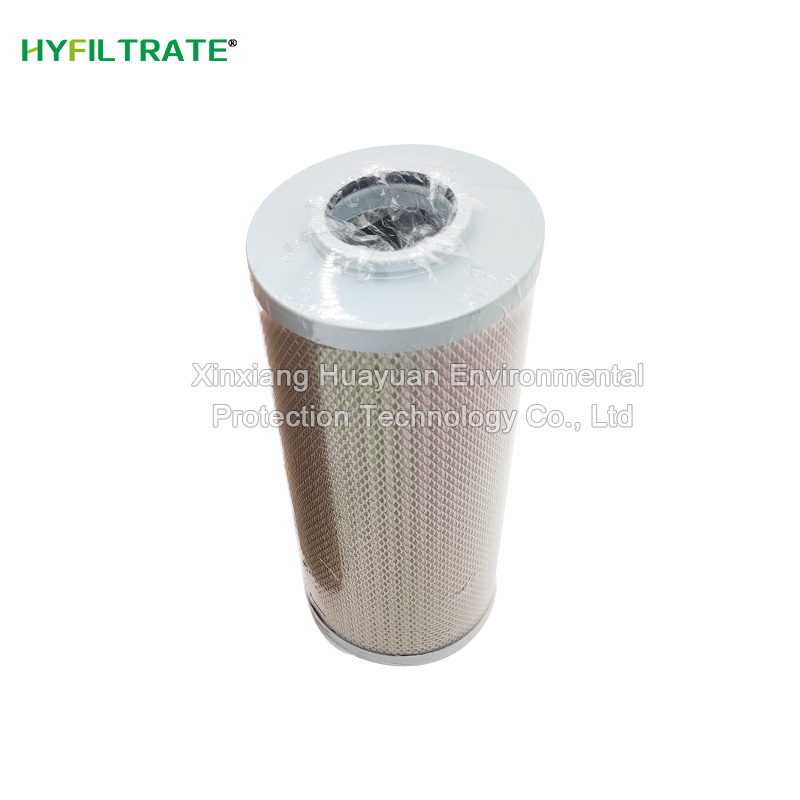

HX63X10 is a high-pressure pipeline Filter Element with a filtration accuracy of 10 μ m, a stainless steel frame pressure bearing capacity of 21MPa, and suitable for hydraulic systems in construction machinery.

1、 Structural design characteristics

Folding glass fiber filter material

Capable of high temperature resistance (-30 ℃~+110 ℃) and acid alkali corrosion resistance, suitable for various media such as hydraulic oil, water ethylene glycol, etc

The filtration area reaches 6 square meters, with strong pollutant holding capacity and extended replacement cycle

Stainless steel skeleton support

The compressive strength can reach up to 21MPa (some models have a nominal value of 38MPa), suitable for high-pressure pipeline systems

Structural error ≤ 0.01mm, ensuring sealing and stability

2、 Performance parameters

Filtering accuracy

Standard accuracy of 10 μ m (optional 5 μ m/20 μ m variants), β value ≥ 100, filtration efficiency ≥ 99.5%

Flow rate and pressure difference

Original pressure difference ≤ 0.07MPa, suitable for hydraulic systems with flow rates of 100-1200L/min

3、 Application advantages

Compatibility

Can replace imported brand filters such as PALL and HYDAC, suitable for scenarios such as construction machinery and metallurgical equipment
