Brand: HYFILTRATE
Filtration accuracy: 1-50um
External diameter: 189mm
Length: 560
Filter media: Hydraulic oil, lubricating oil, glycol, water
Filter element type: Pleated filter element
Country of origin: China

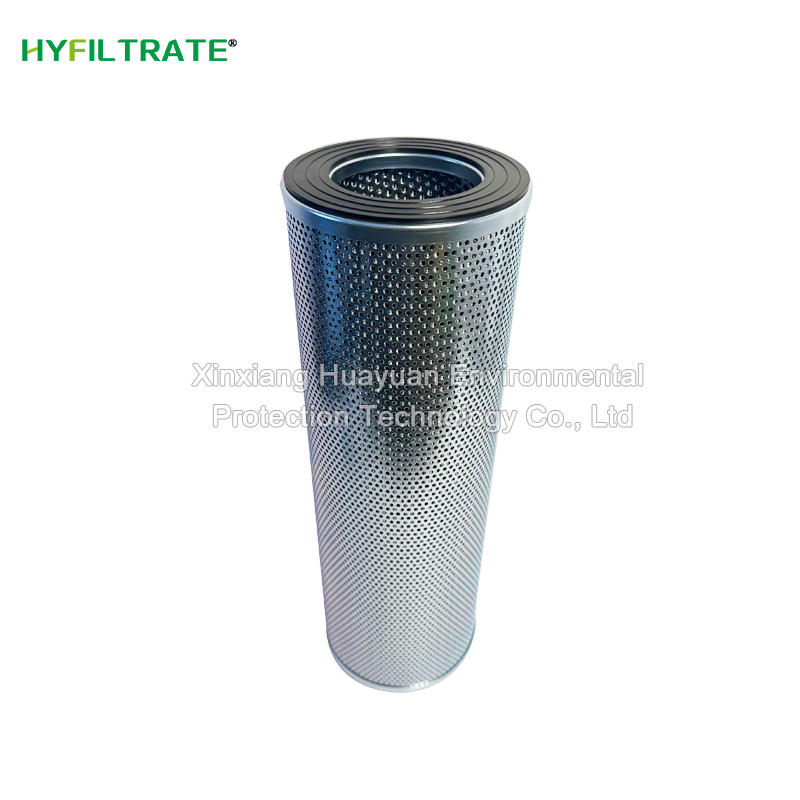

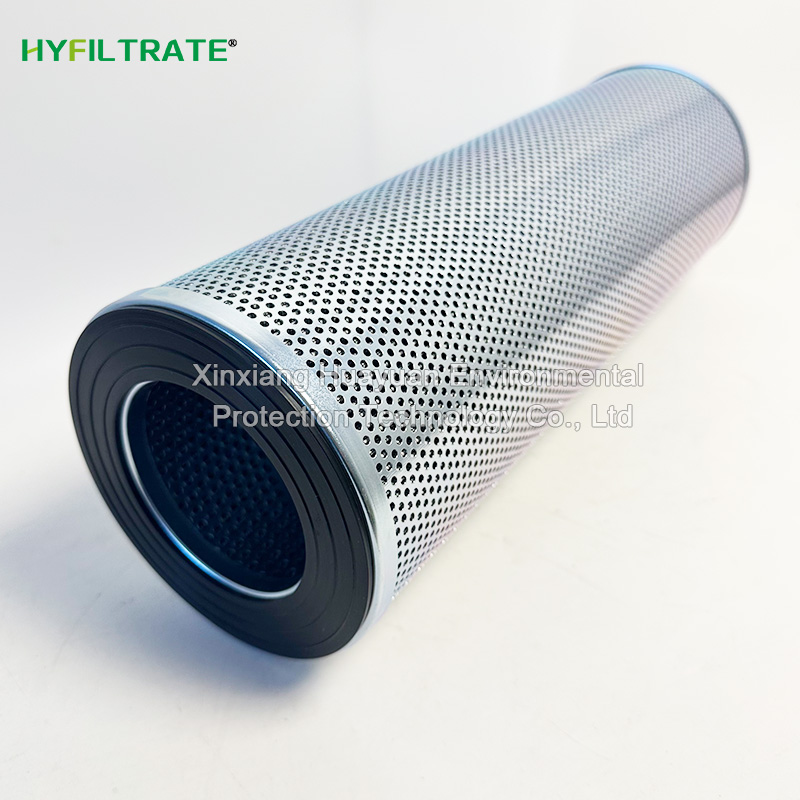

Replacing P568575 fuel Filter Element is a key component used in hydraulic or fuel systems to filter hydraulic oil impurities. Its function is to protect hydraulic components from contamination and extend system life. Hydraulic Oil Filter Element is usually composed of filter material, skeleton and end cap. The filter material is mostly stainless steel mesh, glass fiber or paper material, which can effectively intercept particles, moisture and other pollutants
Total length: 22.06 inches (560.37 millimeters)
Efficiency β 200:18 microns
Outer diameter: 7.44 inches (188.98 millimeters)
Inner diameter: 4.85 inches (123.2 millimeters)
Length: 22.00 inches (558.8 millimeters)
D. E: 6.50 inch (165 mm) gasket
Seal: 4.86 inches (123.4 millimeters)
Filter material: Types of cellulose media
Type: Water separator type
