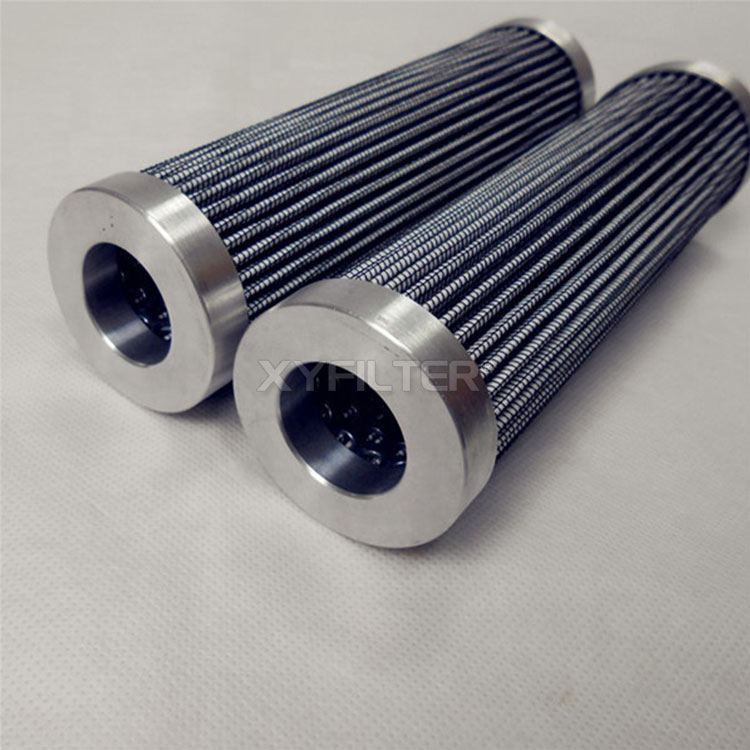

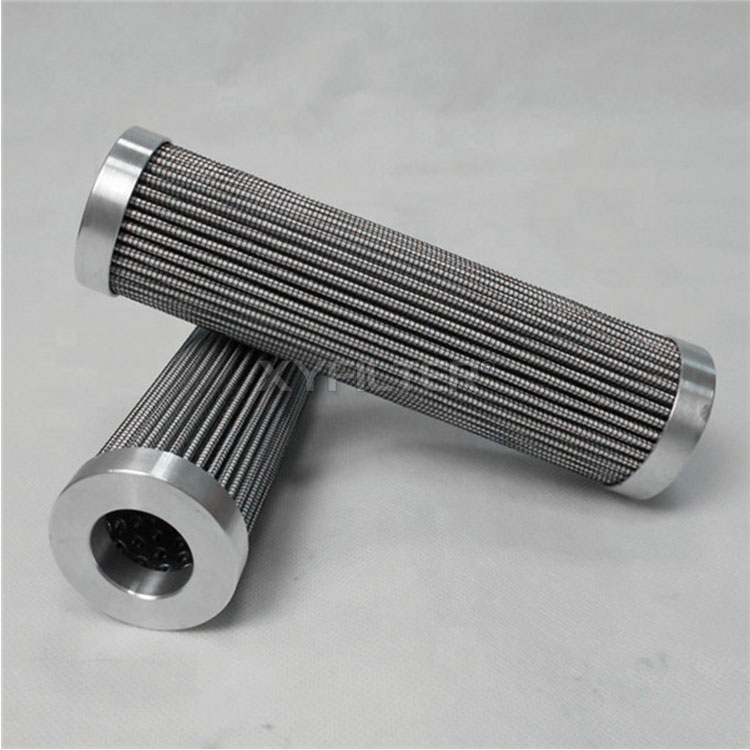

Xinyuan Environmental Protection replaces the STAUFF shield machine Filter Element SL-020F10B directly installed in the fuel tank, which simplifies the system pipeline, saves space, and makes the system layout more compact.

With self-sealing valve: When the system is overhauled, the oil in the oil tank will not flow back. When replacing the Hydraulic Filter Element, the contaminants in the hydraulic filter element can be taken out of the oil tank together, so that the oil will not flow out.

With bypass valve: When the hydraulic filter element is blocked by contaminants and the pressure difference reaches 0.35MPa, if the hydraulic filter element cannot be replaced immediately, the bypass valve on the top of the hydraulic filter element will automatically open (the pressure difference is 0.4MPa) , In order to protect the normal operation of the system.

With magnetic device: it can filter out ferromagnetic particles above 1LJm in the return oil.

Features:

1. High porosity and excellent permeability, low pressure loss, large flow

2. Large dirt holding capacity, high filtration accuracy, long replacement cycle

3. Excellent temperature and corrosion resistance, can be used for a long time at 480°C, resistant to corrosion by nitric acid, alkali, organic solvents, and chemicals

4. The wave can be folded to increase the filtering area and can be welded

5. High strength, even if the liquid is strongly washed and vibrated, the fiber will not fall off

6. It can be cleaned and regenerated, and can be used multiple times
