Oil filter element P2.0933-01 high pressure hydraulic oil return filter element

The P2.0933-01 high-pressure hydraulic oil return filter element uses high-quality glass fiber and stainless steel mesh, which has the advantages of convenient sewage discharge, large circulation area, small pressure loss, simple structure, small size, light weight, and uniform filter material. The filter has good compatibility and is suitable for general hydraulic oil filtration. It is supported by solid filter media on both sides and stable filter materials. It conforms to the verification of

Basic Barameters

Brand: HUAYUANFILTER

Model: P2.0933-01

Filtration accuracy: 1μm~100μm

External diameter: Standard

Length: Standard

Filter media: General hydraulic oil, mineral oil, lubricating oil, phosphate ester hydraulic oil, etc.

Filter element type: Pleated filter element

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

The P2.0933-01 high-pressure hydraulic oil return Filter Element uses high-quality glass fiber and stainless steel mesh, which has the advantages of convenient sewage discharge, large circulation area, small pressure loss, simple structure, small size, light weight, and uniform filter material. The filter has good compatibility and is suitable for general hydraulic oil filtration. It is supported by solid filter media on both sides and stable filter materials. It conforms to the verification of the flow fatigue characteristics of ISO3724/76 hydraulic filters.

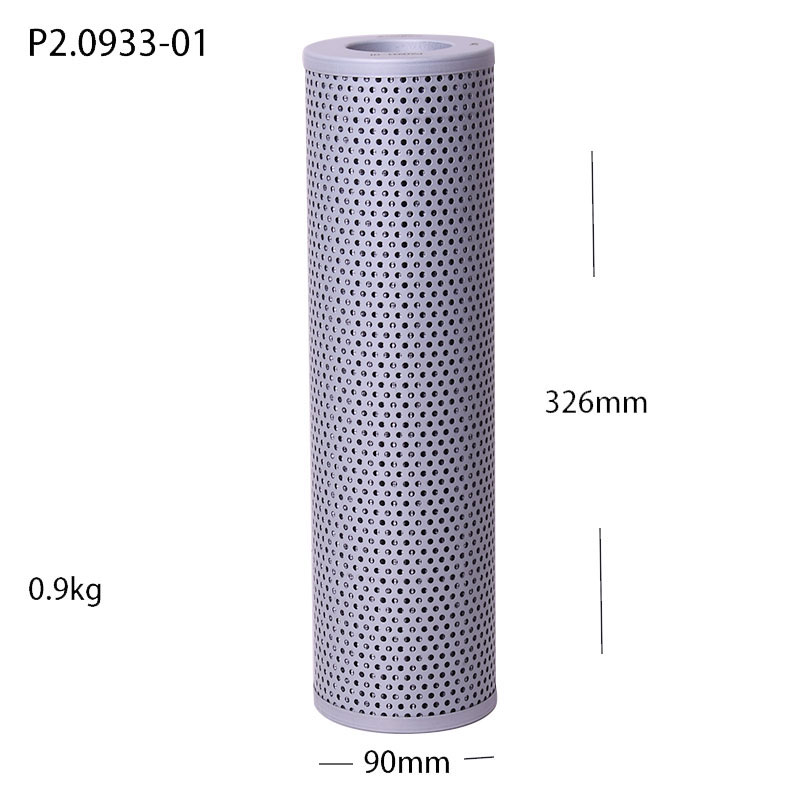

Oil filter element P2.0933-01 high pressure hydraulic oil return filter element(图1)

Technical Parameter

model	P2.0933-01
Types of	Hydraulic oil filter
size	standard
Operating temperature	-10 ~ +100℃
Different working pressure	21bar ~ 210bar
material	Glass fiber, filter paper
Filtration accuracy	1μm~100μm
life	1000-2000h
package	In PP bag, carton, wooden box or according to your requirements
Mailing method	Sea, air, express
