-Material: Usually made of 304 or 316L stainless steel. 304 stainless steel has good corrosion resistance and cost-effectiveness; 316L stainless steel contains molybdenum element and has stronger corrosion resistance, especially suitable for use in high-temperature and highly corrosive environments such as chemical and seawater.

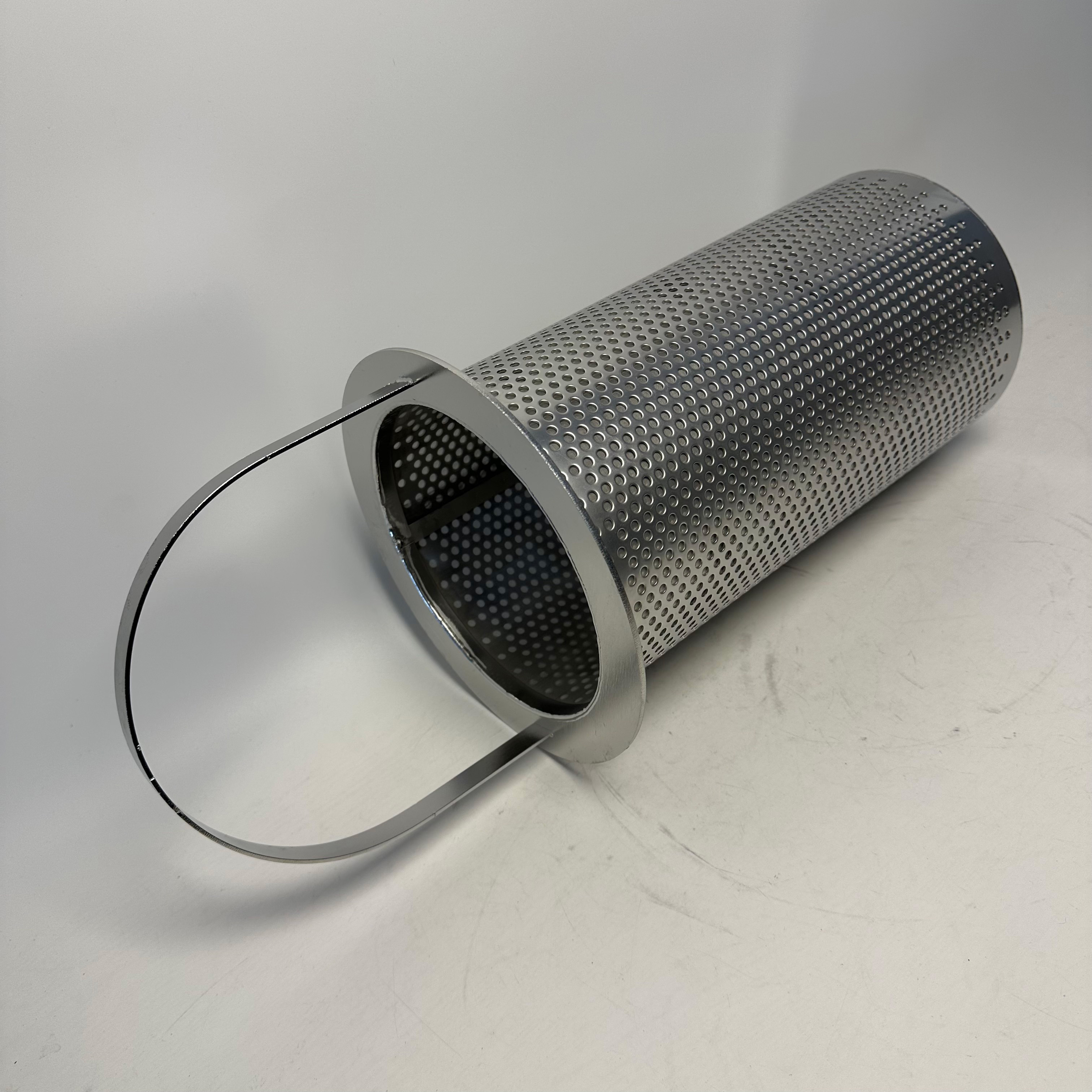

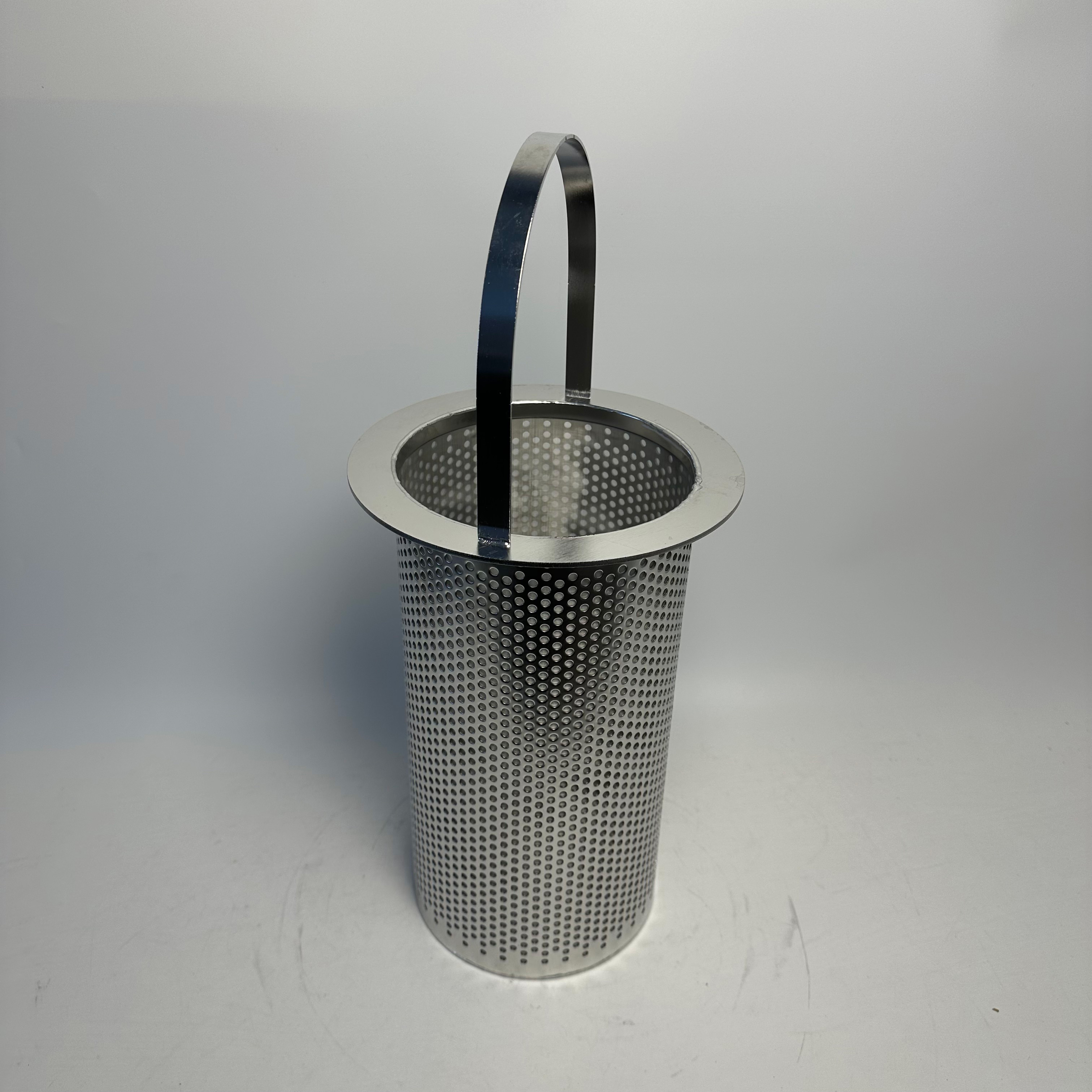

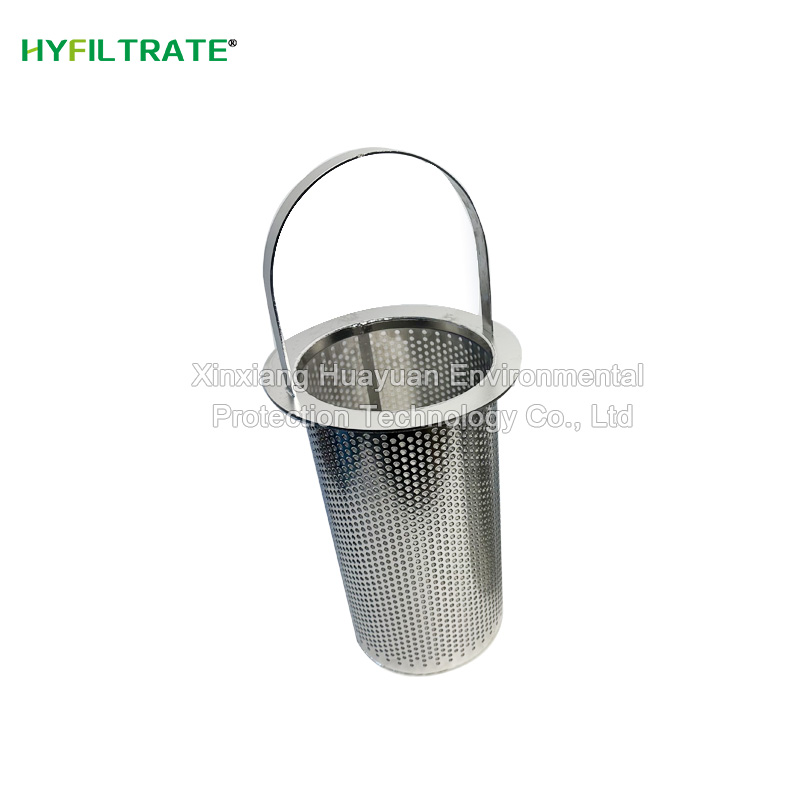

-Structure: Generally, stainless steel punched mesh baskets are used as pressure differential carriers, and some parts are equipped with sintered multi-layer stainless steel filter screens according to filtration accuracy requirements. The appearance includes basket style designs, some with double ear designs for easy access, and the bottom may have anti slip pads or feet.

-Specification and size: There are various sizes available, which can replace standard filter bags 1 #, 2 #, 4 #, and 5 #, and can also be customized according to customer needs. For example, some filter baskets have an outer diameter of up to 186 millimeters and a plate thickness of 1.5 millimeters.

-Filtration accuracy: The accuracy range is wide, reaching 1-300 µ m, which can meet different filtration needs, such as the requirements of high-precision filtration in industries such as fine chemicals and food and beverage.

-Working principle: After the fluid enters the filter, impurities are trapped by the filter basket, and the cleaning medium flows out from the outlet. When there are a lot of impurities trapped in the filter basket, it can be removed and cleaned to restore the filtering performance.

-Application areas: Widely used in industries such as petroleum, chemical, food, beverage, water treatment, etc., it can be used to filter crude oil, chemical media, remove pipeline impurities, etc., and protect equipment such as compressors, pumps, and instruments from working normally.

-Product features: Strong durability, easy to clean, environmentally friendly and hygienic. Stainless steel material is wear-resistant and not easy to rust, with a smooth surface that is not easily contaminated. It is non-toxic, odorless, and will not cause secondary pollution to the filter medium. Moreover, it can be reused and has a long service life.
