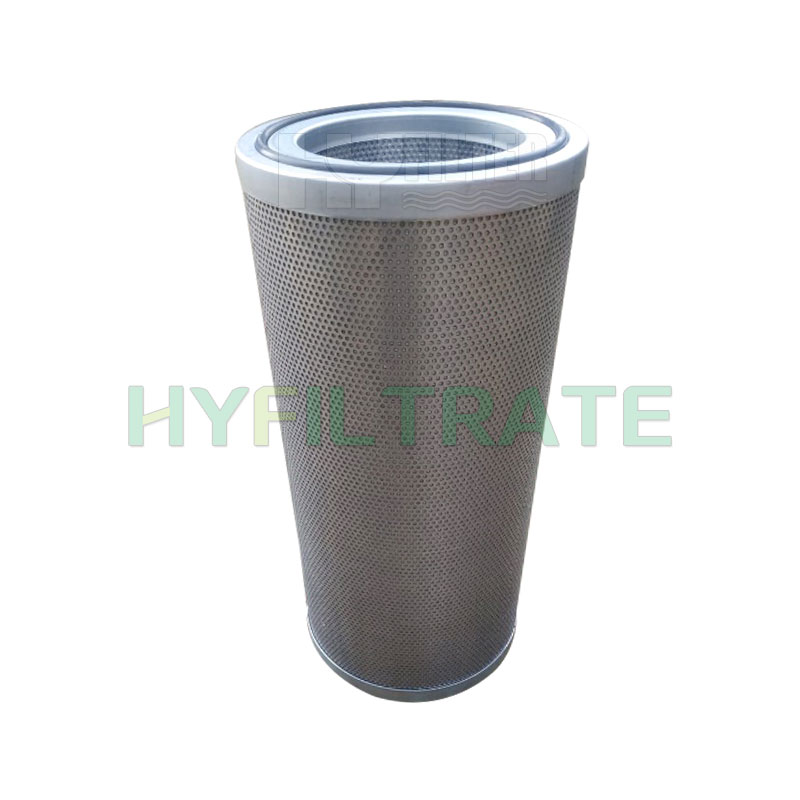

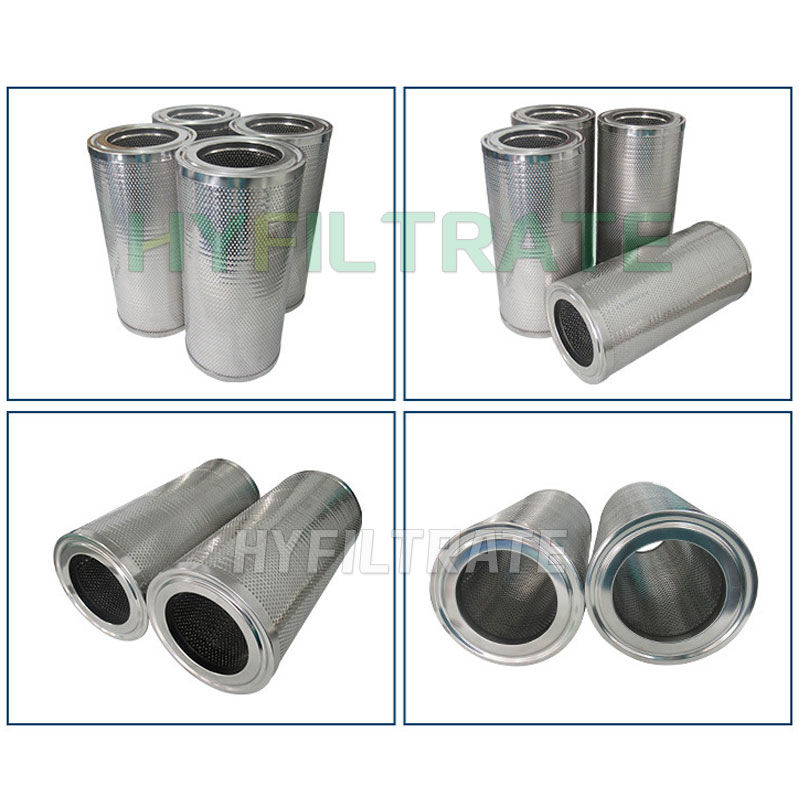

ELT-620 separation filter element

The ELT-620 separation filter element is made of new filter materials and stainless steel frame processing. HUAYUANFILTER specializes in the production of various coalescing filter elements and separation filter elements, which can be customized according to user requirements.The element consists of two layers of fiberglass media, supported by galvanized steelSupport upstream and downstream grids.The end caps and the (perforated) inner and outer cores are made of galvanized steel.The filter mate


Basic Barameters

Country of origin: China

Brand: HUAYUANFILTER

Model: ELT-620

Filtration accuracy: 1um,5um,10um,25um,50um,100um

External diameter: 240 mm

Inside diameter: 155 mm

Specifications: 6 pcs/box

The ELT-620 separation Filter Element is made of new filter materials and stainless steel frame processing. HUAYUANFILTER specializes in the production of various coalescing filter elements and separation filter elements, which can be customized according to user requirements.


The element consists of two layers of fiberglass media, supported by galvanized steel

Support upstream and downstream grids.

The end caps and the (perforated) inner and outer cores are made of galvanized steel.

The filter material is sealed at the two end caps using high temperature epoxy sealant.

Sealing at both ends is provided by Viton O-rings.




Technical Parameter

Component model: ELT-620

Inner diameter: 155 mm

Outer diameter: 240 mm

Total height: 500 mm

Element type: Separate filter element

Medium: natural gas/associated gas

Medium pressure: up to 100 barg

Design temperature: 150℃

Collapse pressure: differential pressure> 3 bar

Efficiency: 99,99%

Remaining oil volume: 3 ppm W


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
