Country of origin: China
Brand: HYFILTRATE
Model: PK22610
Filtration accuracy: 1-50µm
External diameter: 105mm
Inside diameter: Standard size
Filter media: Hydraulic oil, lubricating oil, ethylene glycol and water
Specifications: 8022 filter element is about 298mm×101.6mm (height× diameter), 8021 filter element is about 247mm×101.6mm, the size of a single package is about 16×16×27cm, and the gross weight of a single package is about 1 kg.
Replacing Parker PK22610 fuel Filter Element is often used in various diesel engine equipment, such as trucks, tractors, excavators and other construction machinery equipment, as well as the engine system of ships. Through multi-stage filtration of fuel
RK22610 fuel filter element kit has the following features:
-Multi-stage filtration: It contains filter elements with different filtration accuracy, which can realize multi-stage filtration. First, the low-precision filter element intercepts large particles of impurities, and then the high-precision filter element removes tiny particles and moisture, which effectively improves the cleanliness of fuel and provides more pure fuel for the engine.
-Efficient water removal: It has excellent separation ability for water in fuel, which can reduce the water content in fuel, avoid problems such as engine corrosion, wear and insufficient combustion caused by water, and ensure the stable operation of the engine.
-Strong durability: High-quality filter materials and solid structural design can withstand the pressure in the fuel system, which is not easy to be damaged, and has a long service life, reducing the frequency of filter element replacement and reducing maintenance costs.
-Good compatibility: it is suitable for various types of diesel engines, and can be well adapted in the fuel systems of trucks, construction machinery, ships and other equipment, with high versatility.
-High-precision filtration: it can accurately filter out fine particles and impurities, reach a higher filtration accuracy standard, effectively protect the precise components such as engine oil nozzle and oil pump, reduce wear and improve the reliability and working efficiency of the engine.
The technical parameters of RK22610 filter element kit are as follows:
-Filtering accuracy: including 40 microns and 10 microns, which are realized by 8021 and 8022 filter elements respectively.

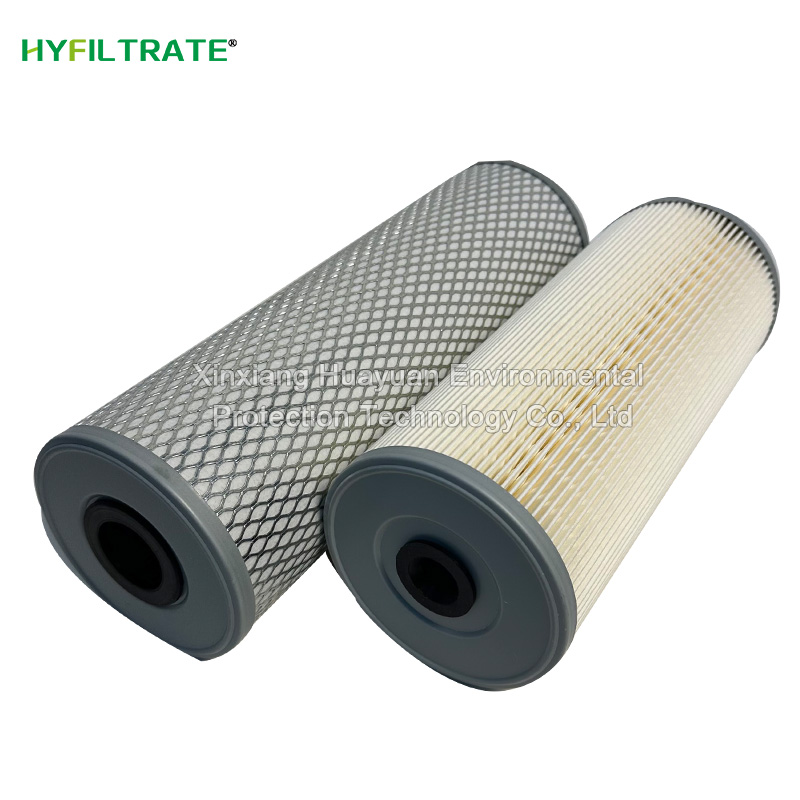

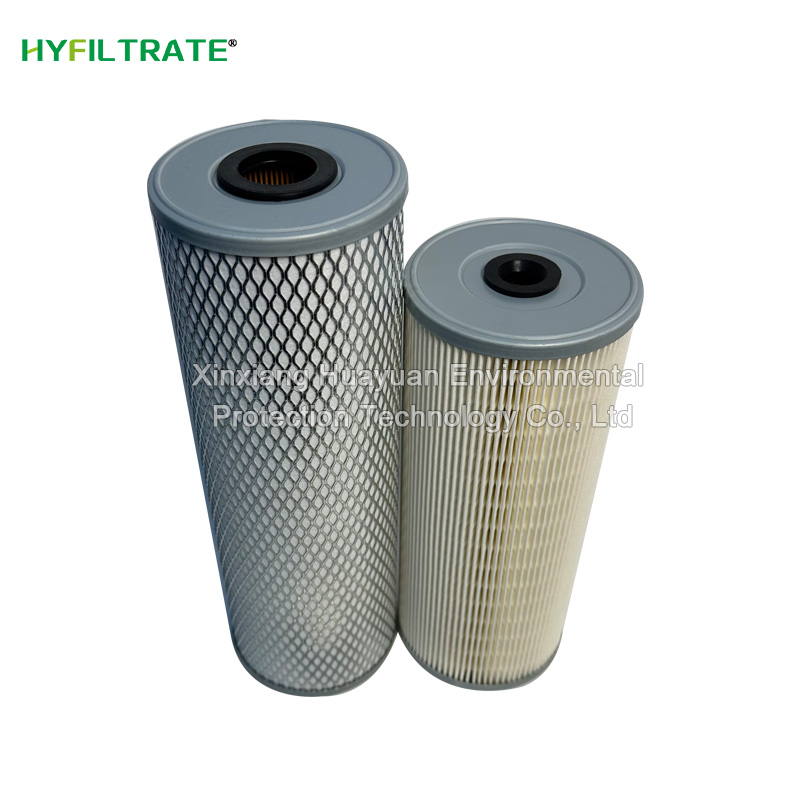

-Dimensions: the dimension of element 1(8022) is about 298mm×101.6mm (height× diameter), and that of element 2(8021) is about 247mm×101.6mm (height× diameter).
-Weight: about 5.75 pounds (about 2.61 kilograms).
-Applicable series: applicable to Racor 812 series filters.
-Filter media: it can filter hydraulic oil, lubricating oil, glycol, water, etc., mainly used for fuel filtration.
-Filter element type: pleated filter element.
