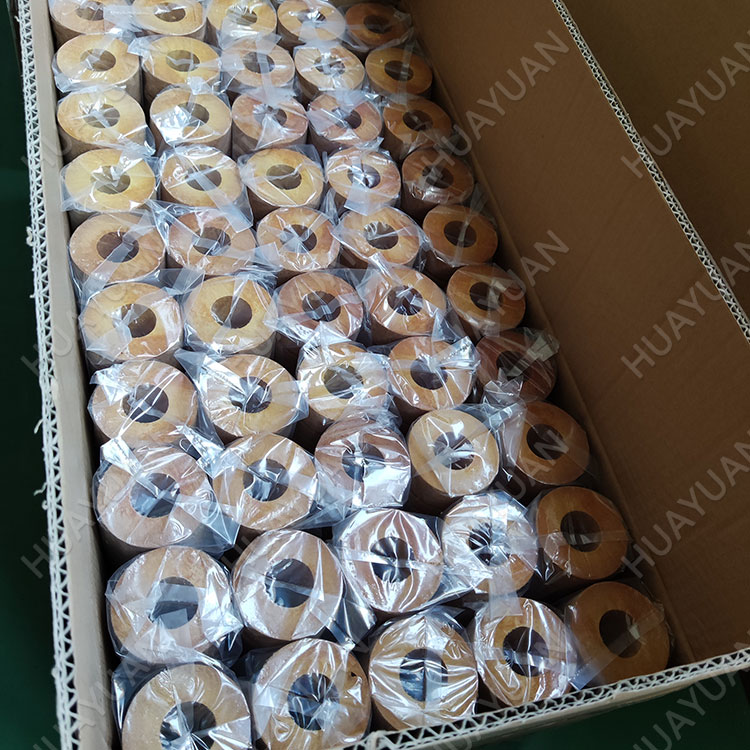

Phenolic resin fiber filter element

The phenolic resin fiber filter element produced by HUAYUANFILTER is used in chemical coatings, paint filtration, and latex industry organic matter dissolution, automotive topcoat ink, electrophoretic paint, printing ink, can coating, printing ink, coil coating, concave and convex ink, enamel paint, newspaper ink, varnish, flat ink, various latex, color paste Liquid dyes, phenolic curing agents, cut oil-eliminating resin adhesives, petroleum products waxes, etc.;This product can directly replace


Basic Barameters

Country of origin: China

Brand: HUAYUANFILTER

Model: Accept size and precision customization

Filtration accuracy: 1um,5um,10um,25um,50um,100um

External diameter: 65mm

Inside diameter: 28mm

Filter media: High-quality paints, coatings, spray coatings, PU coatings, resins, architectural coatings, UV curing inks, conductive inks, inkjets, product packaging and transportation

Specifications: 25 pcs/box

The phenolic resin fiber Filter Element produced by HUAYUANFILTER is used in chemical coatings, paint filtration, and latex industry organic matter dissolution, automotive topcoat ink, electrophoretic paint, printing ink, can coating, printing ink, coil coating, concave and convex ink, enamel paint, newspaper ink, varnish, flat ink, various latex, color paste Liquid dyes, phenolic curing agents, cut oil-eliminating resin adhesives, petroleum products waxes, etc.;


This product can directly replace the 3M phenolic resin fiber filter element. We provide global filter and filter element export service, welcome to email us for inquiries.

Features of phenolic resin fiber filter element:

1. The external winding structure increases the surface area while reducing the loose debris and pollution of machine-made products

2. The extremely long acrylic fiber increases the fiber length and can resist other competitive products. Use short fibers to do the damage and fiber movement of the phenolic resin filter element.

3. The injection of phenolic resin enhances the viscosity of the filter element that can be used for fluids up to 15,000 SSU (3200 cks)

4. Silicone structure ensures no medium pollution

5. Flow rate up to 5 gpm (about 2.3T/H) per 10 inch long filter element

6. The phenolic resin composite filter element has a unique and patented two-layer structure filter design to ensure a larger particle removal effect and the life of viscous fluid filtration.

(The accuracy range of 2 to 150um is optional)

(10~40 inches in length)

(2.56 inches in diameter)

(Adapt to high temperature and high viscosity fluid filtration containing phenolic or resin raw materials)


Technical Parameter

                Model                Size                Filtration accuracy
                G78A81N                10 inches                3um
                G78B81N                10 inches                5um
                G78C81N                10 inches                10um
                G78F81N                10 inches                25um
                G78L81N                10 inches                50um
                G78Q81N                10 inches                75um
                G78V81N                10 inches                100um
                G78W81N                10 inches                125um
                G78Y82N                20inches                1um
                G78B82N                20inches                5um
                G78B83N                30inches                5um
                G78C83N                30inches                10um
                G78F83N                30inches                25um
                G78B8-1N                10 inches                5um
                G78F8-1N                10 inches                25um
                G78L8-1N                10 inches                50um
                G78Q8-1N                10 inches                75um
