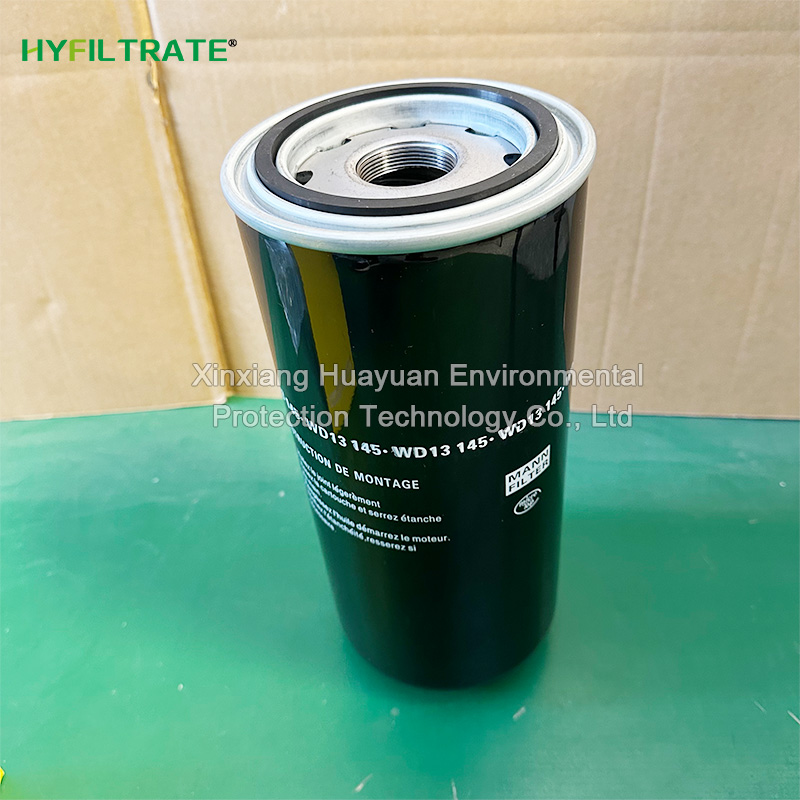

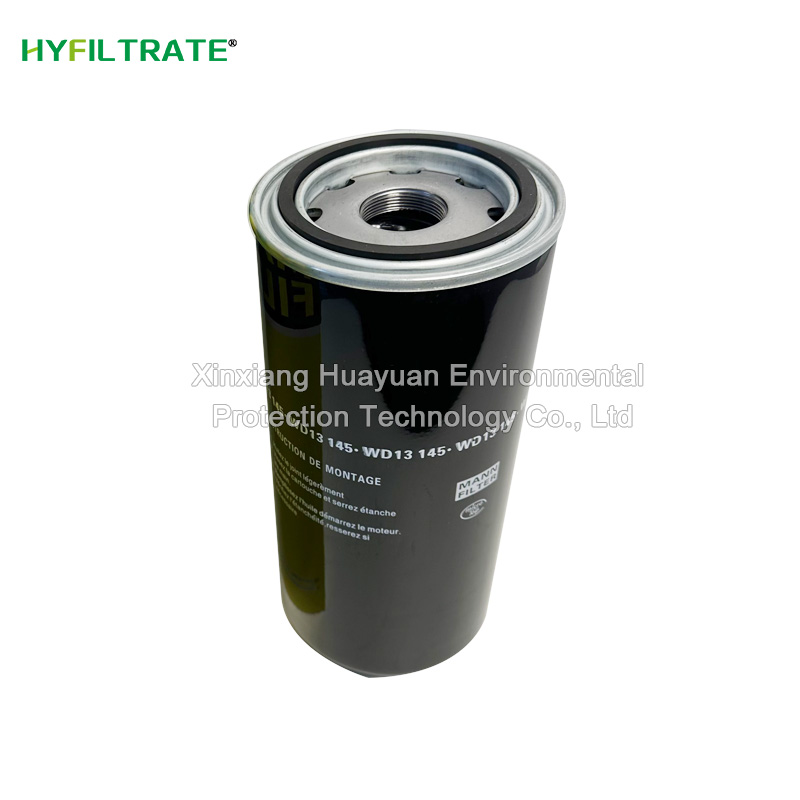

The replacement MANN WD 13 145 air compressor filter is a rotary oil filter suitable for screw and piston compressors. Its filtration accuracy is 3 microns, which can effectively remove particles, debris, and other pollutants from lubricating oil.

The WD 13 145 oil filter has the following characteristics:

Efficient filtration: Using optimized micro glass fiber filtration media, the filtration accuracy can reach 10 microns, effectively removing impurities such as particles and debris in lubricating oil, with a filtration efficiency of up to 99.9%.

High pollutant holding capacity: The filtering medium and pleats of the Filter Element have been optimized to ensure a high pollutant holding capacity, which can accommodate more impurities and extend the service life of the filter element.

Small pressure loss: The pleats and design of the filter element are reasonable, and the initial pressure drop is low. It takes a long time to reach the pressure drop required to replace the filter element (usually 25 psid), which is conducive to maintaining stable operation of the system.

Stable structure: With high burst pressure (261psi) and crush resistance (145psid), even under harsh working conditions, it can ensure that the filter element will not be damaged due to excessive pressure, preventing pollutants from entering downstream systems.

Reliable sealing: Using high-quality sealing materials, such as fluororubber seals commonly used in synthetic oil applications, combined with plastisol and epoxy resin encapsulation, can effectively prevent filter cartridge leakage and ensure filtration efficiency.

Equipped with a backflow suppression valve: When the engine is turned off, the backflow suppression valve can prevent the oil filter from drying out. When the engine is restarted, it can immediately generate pressure, allowing the oil to quickly lubricate the engine.

Wide scope of application: It is applicable to screw air compressors and piston air compressors of Ingersoll Rand, Atlas, Man, Red Five Ring and other models.
