P-CE03-578 spiral air compressor accessories oil and gas separation filter element

Oil and gas separator function:The oil and gas separator is a key component of the air compressor. A high-quality oil and gas separator can not only ensure the efficient operation of the compressor, but also improve the air quality of the compressor. The oil separator separates the oil from the compressed air, so after passing through the compressed air filter, the oil is separated, and then through the oil return pipe, the oil circulates in the compressor.P-CE03-578 oil and gas separator adopts


Basic Barameters

Brand: HUAYUANFILTER

Model: P-CE03-578

Filtration accuracy: 0.1μm

Country of origin: China

Filter media: Oil, water, air

Filter element type: Micron precision filter

Length: standard

Oil and gas separator function:

The oil and gas separator is a key component of the air compressor. A high-quality oil and gas separator can not only ensure the efficient operation of the compressor, but also improve the air quality of the compressor. The oil separator separates the oil from the compressed air, so after passing through the compressed Air Filter, the oil is separated, and then through the oil return pipe, the oil circulates in the compressor.


P-CE03-578 oil and gas separator adopts imported glass fiber, which has good heat resistance; the filter layer adopts folding technology, which has strong dirt holding capacity and more stable filtration accuracy; thickened spiral skeleton; reliable quality and higher cost performance. This series of Filter Elements are processed and manufactured in strict accordance with the original filter element size specifications, with a beautiful and generous appearance, which can fully meet the performance of a crude oil gas separator.

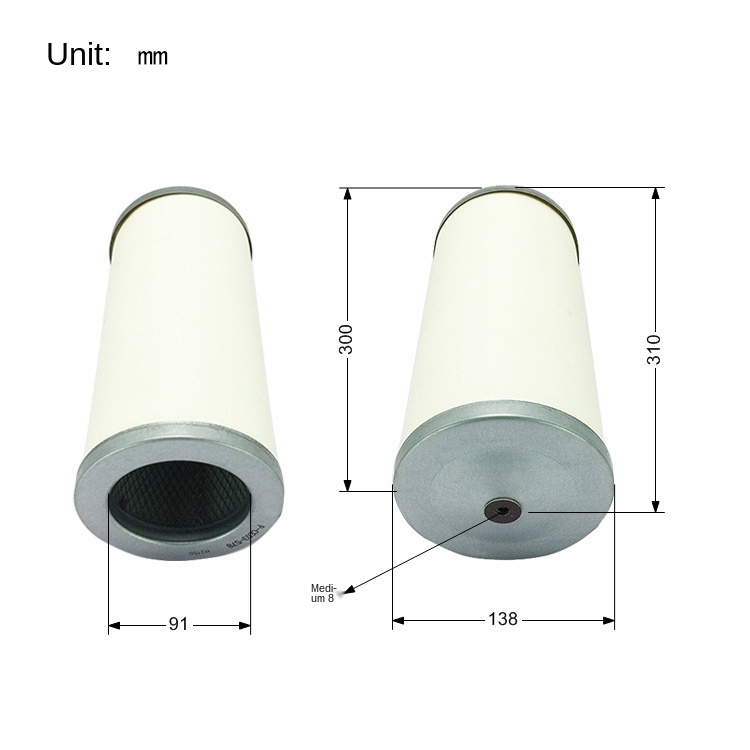

P-CE03-578 spiral air compressor accessories oil and gas separation filter element(图1)

Technical Parameter

1. Filtration accuracy: 0.1 micron.

2. The oil contained in the compression is below 3ppM.

3. Filtration efficiency: 99%.

4. The service life is about 3500h-6000h.

5. The initial pressure difference is less than 0.02Mpa.

6. The oil and gas separator filter element is made of thin glass fiber imported from Germany and the United States.
