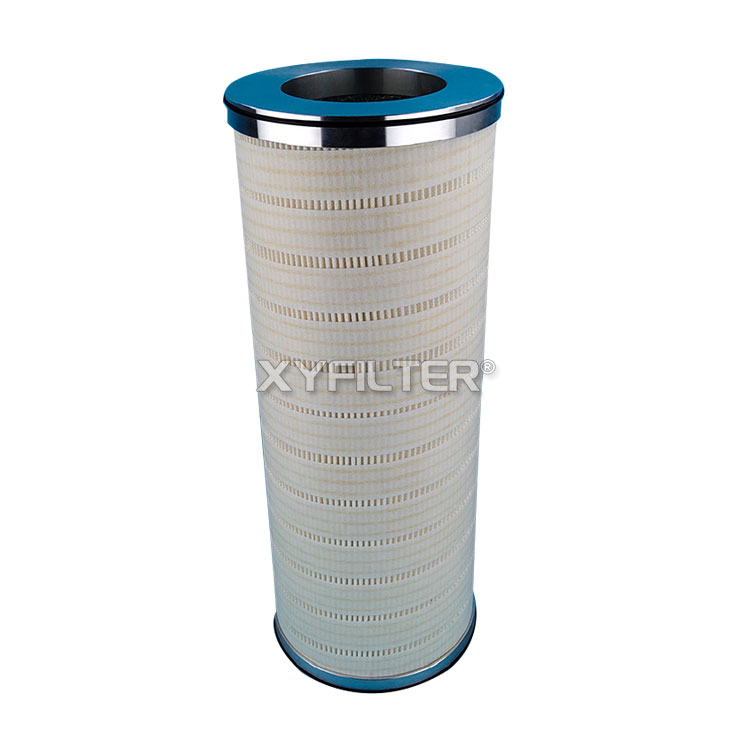

EN 9785 Hydraulic Oil Filter Element Glass Fiber Material

EN 9785 fiberglass hydraulic oil filter element is used in hydraulic systems to filter solid particles and colloidal substances from the working medium. It can effectively control the pollution level of the working medium and protect the normal operation of mechanical equipment by filtering out solid impurities that are mixed from the outside or generated internally in various oil systems. It is an indispensable part of the pipeline series for conveying medium.Supplies high efficiency filter ele


Basic Barameters

Brand: HUAYUAN FILTER

Model: EN 9785

Filtration accuracy: 1-50um

External diameter: 78x39

Length: 239mm

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: Pleated filter element

Country of origin: China

EN 9785 fiberglass hydraulic oil Filter Element is used in hydraulic systems to filter solid particles and colloidal substances from the working medium. It can effectively control the pollution level of the working medium and protect the normal operation of mechanical equipment by filtering out solid impurities that are mixed from the outside or generated internally in various oil systems. It is an indispensable part of the pipeline series for conveying medium.


Supplies high efficiency filter element EN9785 HF1004 HF1018 HF1017 NT4550 NT4554

Supplies hydraulic Oil Filter Element P566254 P566255 P566256 P566257

High efficiency filter element PCHG-336-HP PCHG-336 C-280-51

Application scope:

Used for pressure oil filtration in hydraulic and lubrication systems, to filter out pollutants in the system and ensure normal operation of the system

Pharmaceutical industry: prefiltration of various antibiotic and other pharmaceutical solutions

Food and beverage industry: filtration of alcoholic beverages, mineral water, and drinking water

Petroleum industry: oilfield water injection filtration

Electronic Industry: Pre filtration of High Purity Water

Chemical industry: filtration of various organic solvents, acids, and alkalis


Technical Parameter

Model: EN 9785

Manufacturer: Xinxiang Huayuan Environmental Protection Technology Co., Ltd

Delivery time: 7 days

1. Filtration rate: 3, 5, 10, 20, 25, 50100200,... microns (um)

2. Working pressure: (MAX) 21Mpa

3. Working medium: mineral oil, synthetic oil, turbine oil, cleaning fluid, cutting fluid, fire-resistant oil, hydraulic oil, lubricating oil, transmission oil, etc

4. Working temperature: -30 ℃~110 ℃

5. Filter material: Made of * * * fiberglass filter material

6. Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa


Industry Application
  • Application of filter element
    Application of filter element
  • Filter element for chemical in
    Filter element for chemical in
  • Filter element for steel works
    Filter element for steel works
