Brand: HYFILTRATE
Model: CR-CJSF2.0
Filtration accuracy: 1-50μm
External diameter: Standard size
Length: Standard size
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

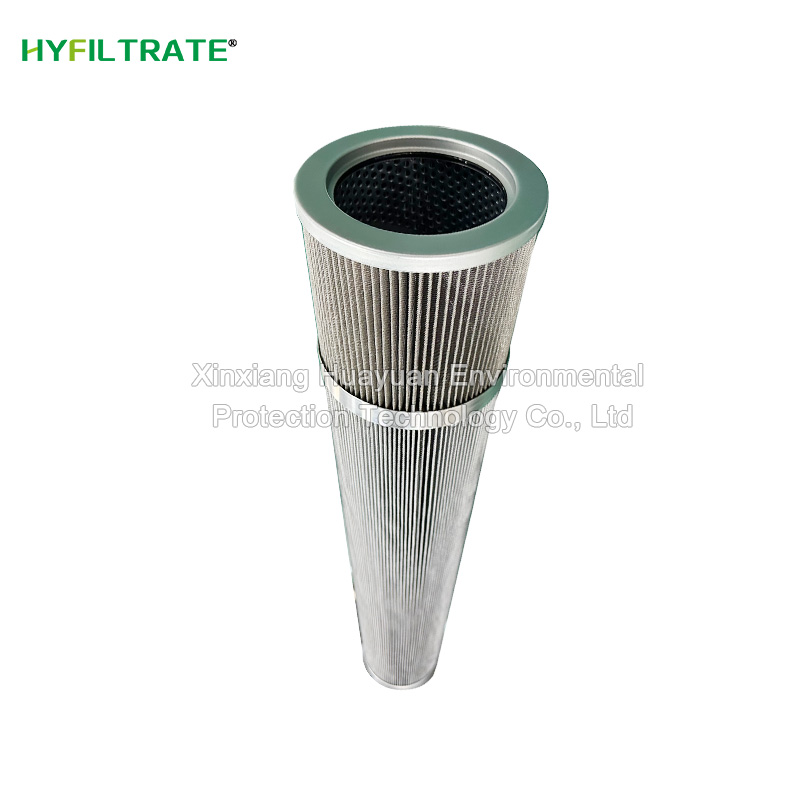

The CR-CJSF2.0 hydraulic oil Filter Element has three core advantages: high-precision filtration, strong pressure resistance and durability, and special machine adaptation. It can effectively extend the service life of wind power gearboxes and reduce maintenance costs.
The features of CR-CJSF2.0 hydraulic oil filter include:
High precision filtration: Made of fiberglass or stainless steel material, the filtration accuracy covers 2-200 μ m, which can effectively intercept solid particles and gel like substances in the lubricating oil of the gearbox
Strong pressure resistance: The working pressure can reach 1.0Mpa, and some models can withstand a high pressure difference of 32MPa, suitable for high-pressure lubrication systems of wind turbine gearboxes
Extreme environment resistance: high temperature resistance (up to 135 ℃), corrosion resistance (suitable for sulfur-containing gases and strong acid and alkali environments), supporting low to high temperature working conditions
Long life design: The stainless steel structure has high strength, supports repeated cleaning and use, and has a regeneration performance of over 90%, reducing maintenance costs
Special machine adaptation: specially designed for the lubrication system of Chuanrun wind power gearbox, compatible with PALL, Pall and other brands of similar filter elements
The technical parameters of CR-CJSF2.0 hydraulic oil filter element are as follows:
Core parameters
Filtering accuracy
Covering 10-25 μ m (medium precision), using fiberglass or stainless steel filter materials, supporting gradient filtration
Some models can be expanded to 2-5 μ m (high precision) or 50 μ m (low precision)
Voltage resistance performance
The working pressure reaches 1.0MPa, and the high-pressure model can withstand a system pressure of 32MPa
Through ISO2941-83 fracture impact test, the pressure difference tolerance is ≥ 0.35MPa
Temperature adaptability
Working temperature range: -30 ℃ to 135 ℃, suitable for extreme working conditions of wind turbine gearboxes
Traffic characteristics
Total pressure drop under rated flow rate ＜ 0.2MPa (ISO3968-91 standard)
Ripple folding design increases filtering area and reduces resistance
Material and Structure
Filter material: domestic/imported fiberglass or stainless steel metal mesh, corrosion-resistant and sulfide resistant
Washable design, regeneration rate>90%, supports repeated use
Compatibility
Can replace PALL (ESC04MCV1), Pall (YL040) and other similar types of filter cartridges
