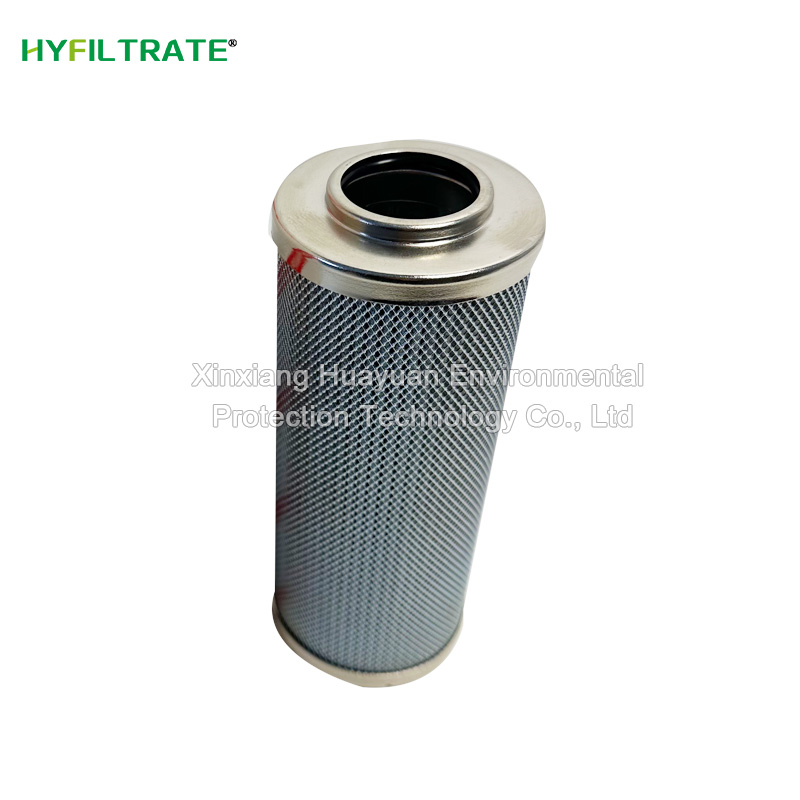

LH0240D040BN3HC hydraulic oil filter element

Features Parameters Related

LH0240D040BN3HC hydraulic oil Filter Element is mainly used in various hydraulic systems, such as engineering machinery, machine tool equipment, metallurgical machinery and other hydraulic systems. It is used to filter solid particles, gum, rust and other impurities in hydraulic oil, maintain the cleanliness of hydraulic oil, protect key components such as hydraulic pumps and valves, prevent wear and jamming due to impurities, and ensure stable and efficient operation of hydraulic systems.

The filter LH0240D040BN3HC has the following characteristics:

Excellent filtering performance

High precision filtration: With a filtration accuracy of 40 μ m, it can effectively intercept solid impurities such as metal particles, dust, and gum in hydraulic oil, ensuring the cleanliness of hydraulic system oil, reducing wear on key components such as hydraulic pumps and control valves, and extending equipment service life.

High pollutant carrying capacity: High quality glass fiber and other filter materials are used, and the unique pleated design increases the filter material area, giving it a larger pollutant carrying space, which can accommodate more impurities, extend the filter element replacement cycle, and reduce maintenance frequency and cost.

Reliable structure and material

High strength casing: The casing is often made of high-strength metal materials such as stainless steel, which have strong compressive strength and can withstand high working pressures (generally up to 16-31.5MPa). It is suitable for high-pressure and high load hydraulic systems, and has good corrosion resistance. It can operate stably under harsh working conditions.

Reliable sealing design: The filter element end cover and housing are well sealed, using oil resistant rubber and other sealing materials to ensure no leakage in high-pressure environments, preventing unfiltered oil from directly entering the system and ensuring filtration efficiency.

Good adaptability and universality

Wide compatibility: It can adapt to various brands and models of hydraulic systems, and has good compatibility with different types of hydraulic oils (such as mineral oil, synthetic oil, etc.), with a wide range of applications.

Easy installation: The interface design meets universal standards, the installation method is simple, and it can directly replace other brands of filter cartridges of the same specifications, making equipment maintenance and replacement convenient and reducing the threshold for use.

Cost effectiveness advantage

Compared to some imported brands of the same type of filter cartridge, while ensuring filtration performance and quality, the price is more competitive, which can save users equipment maintenance and operation costs, and has a higher cost-effectiveness.

Technical Parameter

The technical parameters of hydraulic filter LH0240D040BN3HC are as follows:

Filtering accuracy related

Absolute filtration accuracy: 40 μ m, which means it can intercept over 98% of particles with a diameter greater than or equal to 40 μ m, effectively ensuring the cleanliness of the hydraulic system.

Traffic parameters

Rated flow rate: 240L/min, which means that under normal working conditions, the filter element can smoothly pass hydraulic oil at a flow rate of 240 liters per minute, meeting the oil circulation requirements of the corresponding hydraulic system specifications.

Pressure parameters

Maximum working pressure: usually up to 31.5MPa (315 bar), it can withstand high system pressure and adapt to harsh high-pressure hydraulic system working environments.

Initial pressure difference: ≤ 0.35 bar (0.035 MPa). When the filter element is brand new and has not yet started filtering impurities, the pressure drop generated by the oil passing through the filter element is small, which helps reduce system energy consumption.

Structural dimension parameters

Outer diameter: According to product standards, there may be relatively fixed size specifications to accommodate different installation spaces and filter cartridges. The specific values may fluctuate within a certain range due to production batches or subtle design differences, commonly around 100-120mm.

Height: The common height is about 250-300mm, ensuring sufficient filter material area to achieve large pollutant holding capacity and efficient filtration.

Filter materials and related materials

Filter material type: High performance glass fiber composite filter material is used, which has the characteristics of high filtration efficiency and large pollutant holding capacity.

Polluting capacity: Generally around 1000-1500g, it can accommodate more impurities, extend the service life of the filter element, and reduce the frequency of replacement.
