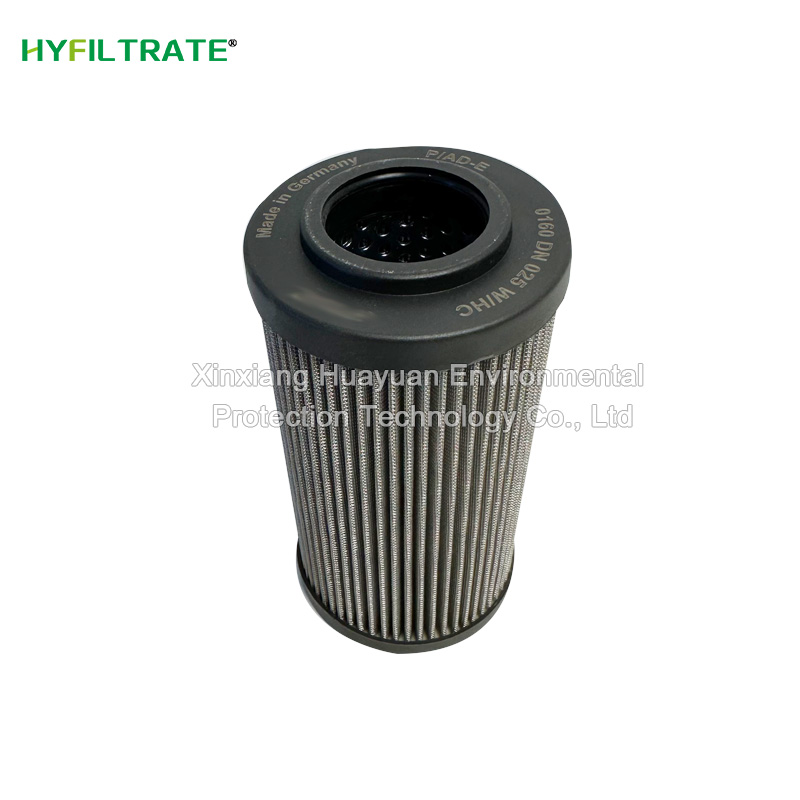

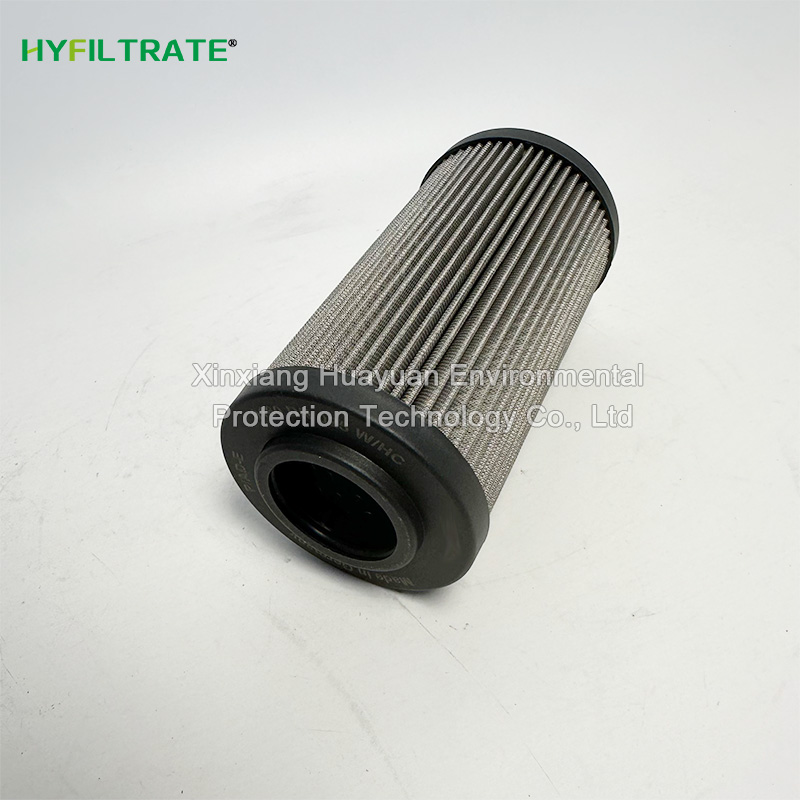

Replace HYDAC 0160 DN 025 W/HC hydraulic oil filter element

Features Parameters Related

The HYDAC 0160 DN 025 W/HC hydraulic oil filter cartridge is mainly used in hydraulic systems to filter hydraulic oil. It can effectively filter out metal particles, dust, gum and other impurities in hydraulic oil, maintain the cleanliness of hydraulic oil, protect key components such as hydraulic pumps, hydraulic cylinders, hydraulic valves, etc., avoid wear, jamming and other faults caused by impurities, and ensure stable and efficient operation of the hydraulic system.

The 0160 DN 025 W/HC filter cartridge has the following characteristics:

Superior filtering performance

High precision filtration: With a filtration accuracy of 25 μ m, it can effectively intercept most solid particles and impurities in hydraulic oil, such as metal debris, dust, etc., providing a clean working medium for the hydraulic system, reducing the wear of key components, extending the service life of hydraulic pumps, hydraulic valves and other components, and reducing the probability of equipment failure.

High pollutant carrying capacity: Using specially designed stainless steel mesh filter material, combined with a reasonable Filter Element structure, it has a large pollutant carrying space. This allows the filter element to be replaced less frequently for a longer period of time, reducing maintenance frequency and costs, and improving the continuous working time of the equipment.

Reliable structure and material

High strength shell: The filter cartridge shell is usually made of high-quality metal materials, which have excellent compressive performance and can withstand high working pressure (Hedeke hydraulic filter cartridges can generally adapt to high pressure environments), ensuring stable operation in high-pressure hydraulic systems without easy cracking or deformation.

Corrosion resistant filter material: Stainless steel mesh filter material not only has good filtration effect, but also has strong corrosion resistance, which can adapt to various hydraulic oils with different properties, including some corrosive synthetic hydraulic oils. It can also maintain good filtration performance and structural integrity under harsh working conditions such as humidity and chemical erosion.

Reliable sealing: The sealing design of the filter element is rigorous, using high-quality sealing materials such as oil resistant rubber to ensure that oil can only be filtered through the filter material in high-pressure environments, without bypass or leakage, thus ensuring the reliability of the filtration effect.

Strong adaptability and universality

Wide system compatibility: This model of filter element can adapt to various brands and specifications of hydraulic systems, whether it is hydraulic equipment in engineering machinery, industrial machine tools, metallurgy, mining and other fields. As long as the system parameters meet the requirements of its rated flow rate, working pressure, etc., it can be selected and has high universality.

Easy installation: Its interface size and installation method follow industry standards, making it easy to install and disassemble, and facilitating equipment maintenance personnel to replace filter elements, saving maintenance time and labor costs.

Technical Parameter

The common technical parameters of 0160 DN 025 W/HC filter cartridge are as follows:

Filtering accuracy related

Absolute filtration accuracy: 25 μ m, which means it can intercept over 98% of particle impurities with a diameter greater than or equal to 25 μ m, providing relatively clean oil for the hydraulic system and effectively reducing the wear of system components caused by impurities.

Traffic parameters

Rated flow rate: 160L/min, which means that under normal working conditions, the hydraulic oil flow rate that the filter element can smoothly pass through per minute is 160 liters, which can meet the oil circulation requirements of the corresponding hydraulic system specifications.

Pressure parameters

Maximum working pressure: usually up to 31.5MPa (315 bar), able to withstand high system pressure and adapt to the working environment of high-pressure hydraulic systems.

Initial pressure difference: generally ≤ 0.35 bar (0.035 MPa). When the filter element is in a brand new state and has not yet started to intercept impurities, the pressure drop generated by the oil passing through the filter element is small, which helps to reduce system energy consumption.

Structural dimension parameters

Nominal diameter (DN): Used to indicate the specifications and dimensions of the filter interface, but the specific value needs to be determined in conjunction with the product manual, and there may be slight differences in different designs.

Filter length: It is not directly reflected in the model and usually requires consulting product details. Generally, the appropriate length will be designed according to the application scenario, while meeting the requirements of filtration area and pollutant holding capacity. It is commonly in the range of 200-400mm.

Filter materials and related materials

Filter material type: According to the "W" in the model, the filter material is stainless steel mesh, which has the characteristics of high strength, corrosion resistance, and repeatable cleaning and use, and can maintain stable filtration performance under complex working conditions.

Pollutant carrying capacity: relatively large, usually around a few hundred grams, the specific value may vary due to differences in production processes and designs. A larger pollutant carrying capacity can extend the filter replacement cycle.

Working medium and temperature

Working medium: Suitable for various common hydraulic oils such as mineral oil and synthetic hydraulic oil.

Working temperature: The applicable temperature range is generally between -10 ℃ and 100 ℃, which can meet the working temperature requirements of hydraulic systems in most industrial environments.
