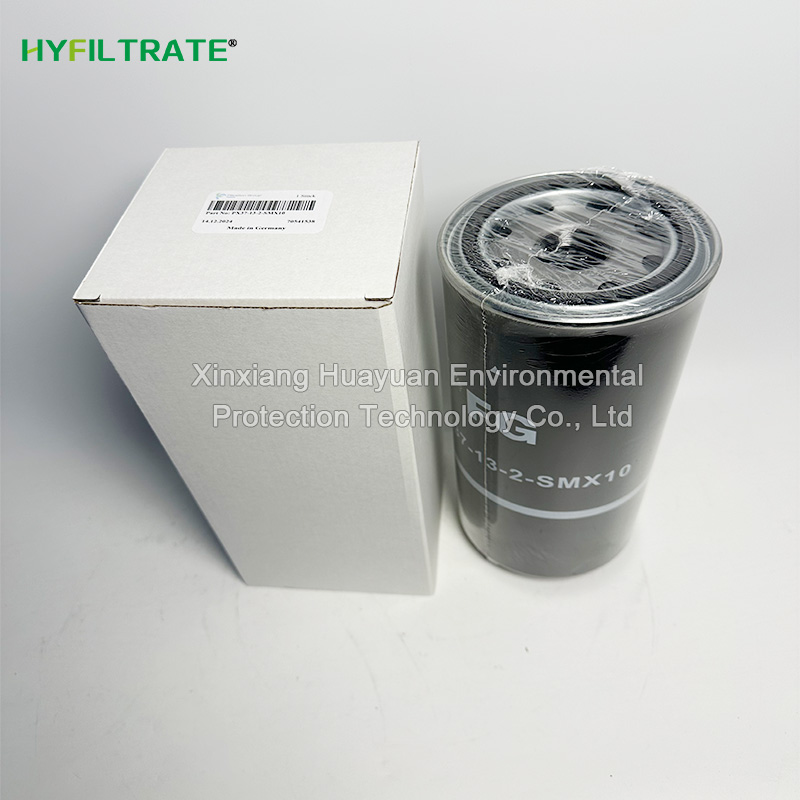

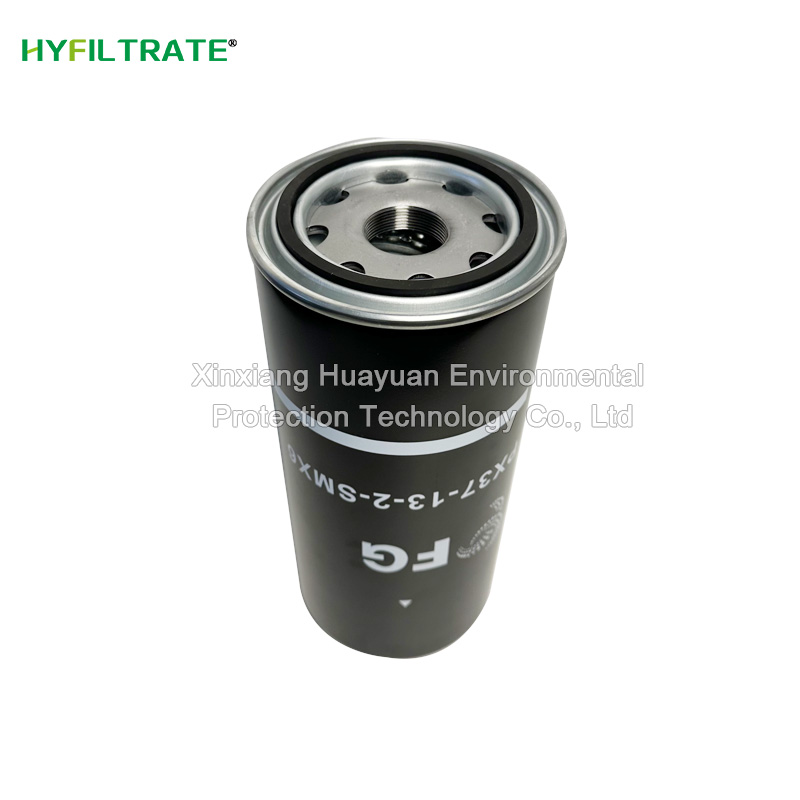

Replace Mahle PX37-13-2-SMX10 hydraulic oil Filter Element with a filtration accuracy of 10 μ m and a maximum working temperature of 225 ° F (approximately 107.2 ℃). The outer diameter of the filter element is 136.65mm, the length is 304.8mm, the thread specification is 1-1/2 "-16, and the sealing material is nitrile rubber (Buna-N). It uses micro glass fiber filter material, which has high dirt absorption capacity and filtration efficiency. It can be installed in the pressure and suction pipelines of hydraulic systems to filter hydraulic oil and lubricating oil, protect downstream components, and is suitable for equipment such as wind turbines.

The PX37-13-2- SMX10 filter element has the following characteristics:

High filtration accuracy: The filtration accuracy is 10 μ m, which can effectively intercept impurity particles in hydraulic oil or lubricating oil and protect key components in the system.

Excellent performance of filter material: using micro glass fiber filter material, it has high dirt absorption capacity, can accommodate more impurities, and extends the service life of the filter element.

Reasonable structural design: It is a screw on design, easy to install and replace. Its components have been optimized through flow channel design, resulting in minimal pressure loss and ensuring smooth passage of oil.

Reliable sealing performance: The sealing material is nitrile rubber (Buna-N), which has good sealing performance, can prevent oil leakage, and ensure filtration effect.

Wide adaptability: The working temperature range is wide, and it can work normally in an environment of -30 ℃ to+110 ℃. It also has good pressure resistance, with a nominal pressure of up to 21MPa, and is suitable for various hydraulic and lubrication systems.

Equipped with bypass function: Some of the filter elements of this model may be equipped with bypass valves, which can reliably ensure the supply of oil to the system during cold start or sudden increase in pressure difference, and maintain the purity of the oil in the system in extreme situations.

Strong corrosion resistance: It has proven corrosion resistance and proven chemical resistance, and can be used stably in various working environments.
