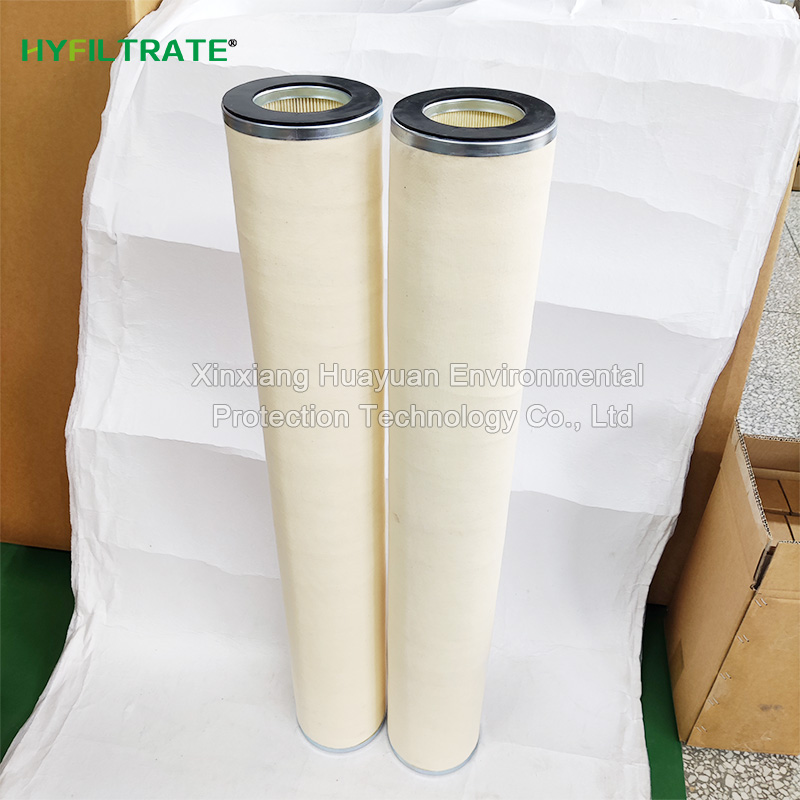

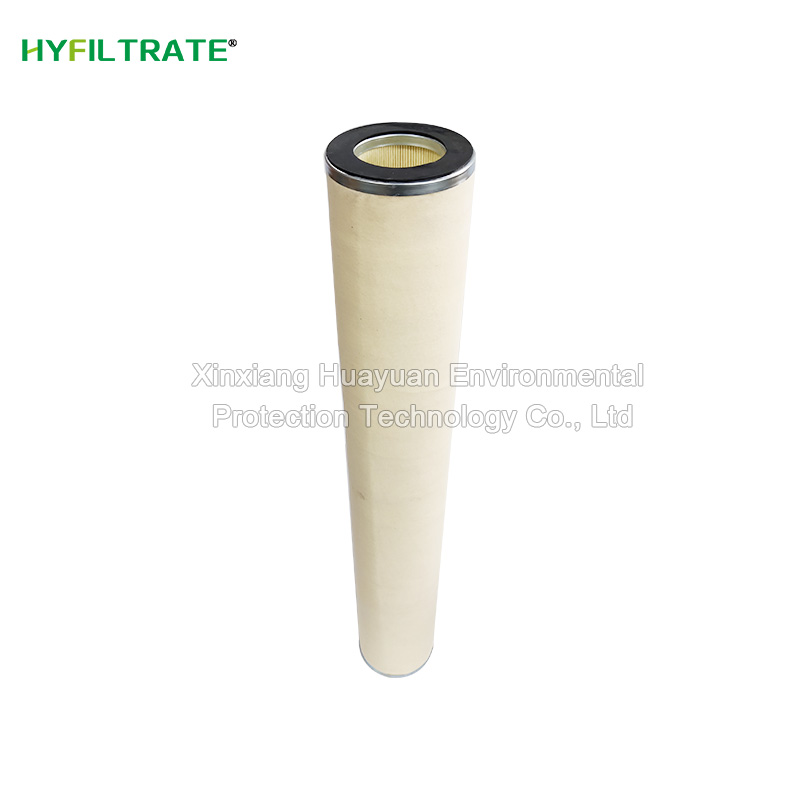

The Coalescing Filter Cartridge with a specification of 152 × 90 × 1016 × 0.5 μ m represents the core component of efficient separation technology. This precision filter material, which adopts a multi-layer composite structure, can effectively intercept droplets and aerosols at the 0.5 micron level. Its standardized design with an outer diameter of 152mm, inner diameter of 90mm, and length of 1016mm makes it the preferred solution for key scenarios such as aviation fuel processing, compressed air purification, and natural gas dehydration.

The Filter Element adopts a gradient density fiber layer design, with the outermost pre filtration layer capable of capturing large particle impurities, and the middle ultrafine glass fiber layer achieving particle aggregation through a triple mechanism of Brownian diffusion, inertial collision, and direct interception. When the mixed fluid passes through a 0.5 μ m precision coalescence layer, tiny droplets collide and merge on the fiber surface, forming sufficiently large droplets that separate under the action of gravity. The specially designed anti re entrainment layer ensures that separated liquids do not re-enter the airflow, and testing data from a manufacturer shows a secondary entrainment rate of less than 0.003%.
