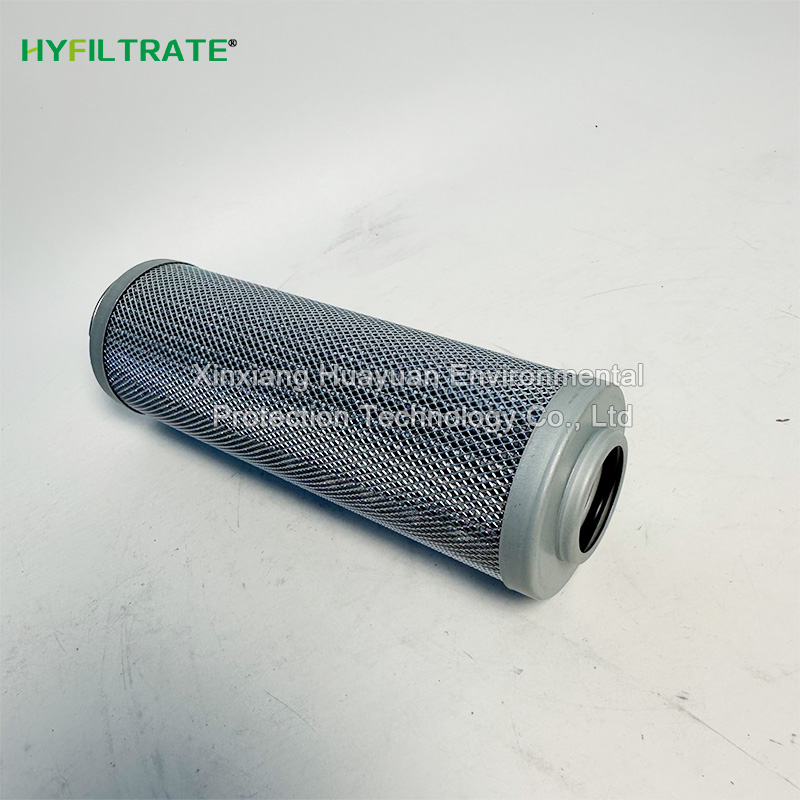

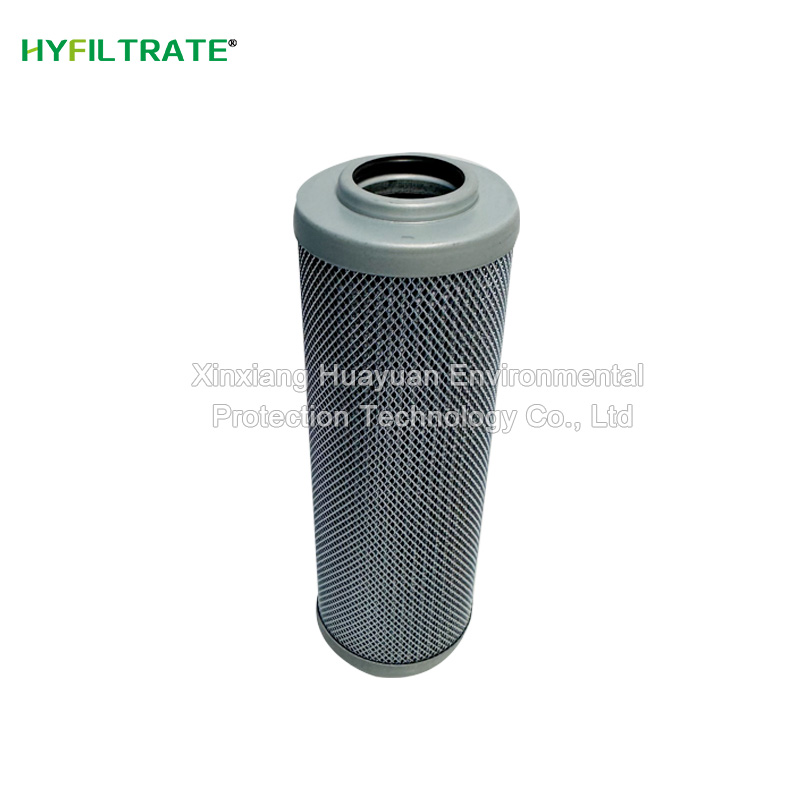

The replacement Pall CRFE-LW-25A-25D hydraulic oil filter cartridge is an industrial oil filtration cartridge mainly used for fluid purification in lubrication systems, hydraulic devices, and chemical energy equipment. Its core function is to intercept particles and impurities in the oil, protect mechanical components from wear and tear, and extend the service life of the equipment.

Efficient filtering performance

Filtering accuracy range: 10-180 μ m, capable of intercepting particulate pollutants in oil

The filtration area reaches 36 square meters, improving the efficiency of oil treatment

High pressure and temperature resistance

The maximum working pressure difference is 280kPa, and the raw water pressure is 28MPa, suitable for high-pressure oil station systems

The working temperature can reach 100 ℃, meeting the requirements of high-temperature working conditions

Structural Design

Adopting a foldable Filter Element form, increasing the filtering area while reducing the volume

Inlet and outlet diameter 45mm, compatible with standard pipeline interfaces

Material and Applicability

Optimization for oil filtration, suitable for lubrication systems in chemical, energy and other fields

Some models may use stainless steel material, which is corrosion-resistant and has high mechanical strength
