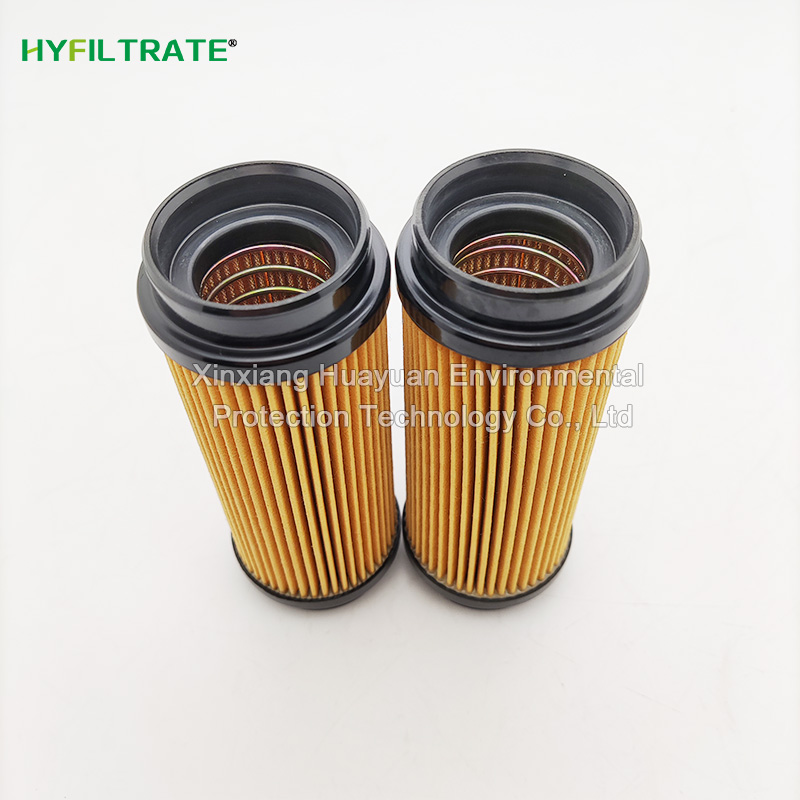

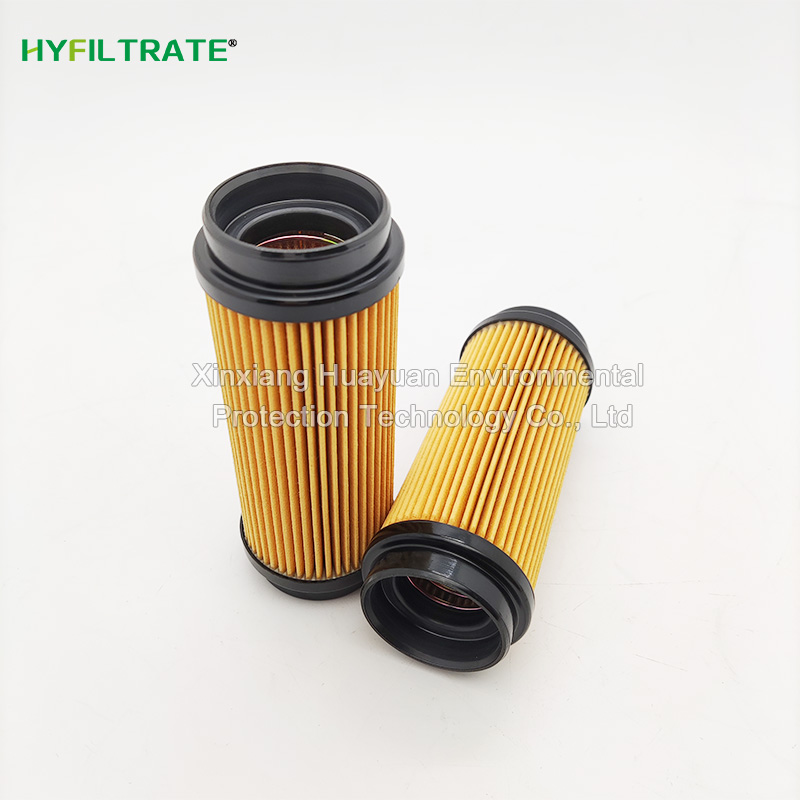

2165059 oil filter element

2165059 oil filter element filters impurities in the steering hydraulic system, protects the oil pump and hydraulic valve, and uses high-strength materials (such as metal mesh or PP cotton) to adapt to harsh working conditions of military vehicles.Filtration efficiency: The filter element is 10-50 microns and can intercept metal shavings, gum, etcWorking temperature: Supports -30 ℃~110 ℃ to meet extreme environmental requirementsInterface type: plug-in or flat mouthSpecial requirements for milit

Basic Barameters

Brand: HYFILTRATE

Model: 2165059

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

2165059 oil Filter Element filters impurities in the steering hydraulic system, protects the oil pump and hydraulic valve, and uses high-strength materials (such as metal mesh or PP cotton) to adapt to harsh working conditions of military vehicles.

Filtration efficiency: The filter element is 10-50 microns and can intercept metal shavings, gum, etc

Working temperature: Supports -30 ℃~110 ℃ to meet extreme environmental requirements

Interface type: plug-in or flat mouth

Special requirements for military vehicles: The filter element needs to pass military environmental tests such as vibration and high and low temperature cycling

Technical Parameter

1. Filtering accuracy

Hydraulic oil filter element: 1-100 μ m (such as the FPC series supplied by Longye, which is 1-20 μ m)

Oil filter element: 10-30 μ m (such as Frega L052-200)

Wire wound filter element: 1-50 μ m (accuracy inversely proportional to flow rate/pressure difference)

SMC air filter: 0.3 μ m (AFM series) to 0.01 μ m (AFD series)

2. Work pressure

Hydraulic filter element: 0.11-0.6MPa (maximum pressure difference)

Oil filter/air filter: standard 1.0MPa

Air filter: 0.05-1.0MPa

3. Temperature range

Hydraulic/oil filter element: -30 ℃~+110 ℃

Air filter: -5 ℃~60 ℃ (unfrozen)

4. Flow rate and pressure difference

The wire wound filter element has a flow rate of 0.4T/H and a pressure difference of 0.15MPa at a precision of 1 μ m; Flow rate of 2.5T/H at 50 μ m, pressure difference of 0.015MPa

SMC AFM40-04-A rated flow rate 1100L/min

5. Material and Structure

Common filtering materials: fiberglass, metal mesh, polypropylene (PP), polytetrafluoroethylene (PTFE)

The design of the end cap/base affects installation, and the depth of the filter is related to the flow rate
