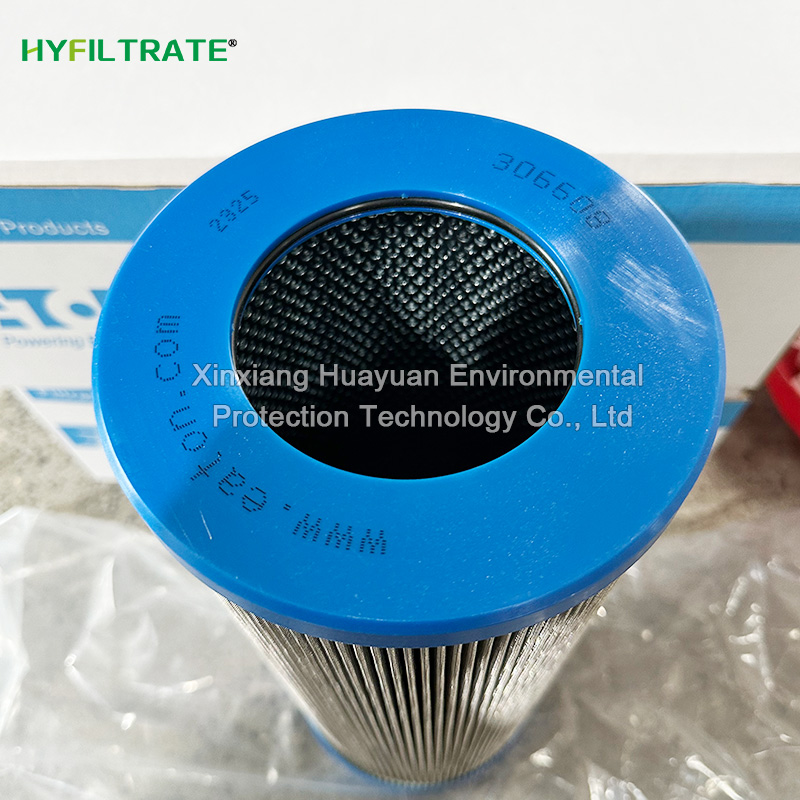

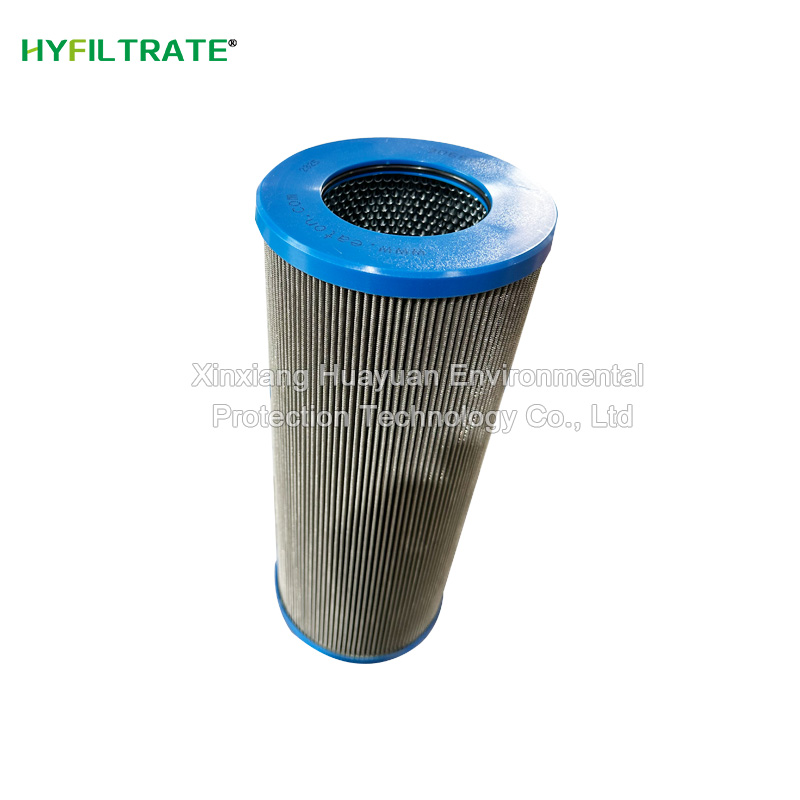

Replace EATON 306608 hydraulic oil filter element

-Wide range of filtration accuracy options: The filtration accuracy is usually between 1-500 microns, which can meet the filtration requirements of oil and other media under different working conditions, and can effectively filter out solid particles and impurities of various sizes. -Excellent material performance: Fiberglass filter paper is often used as the filtering material. This material has uniform aperture, low resistance, large dust holding capacity, and good acid, alkali, and high tempe


Basic Barameters

Brand: HYFILTRATE

Model: 306608

Filtration accuracy: 1-40μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil, lubricating oil

Filter element type: Hydraulic oil filter

Country of origin: China

-Wide range of filtration accuracy options: The filtration accuracy is usually between 1-500 microns, which can meet the filtration requirements of oil and other media under different working conditions, and can effectively filter out solid particles and impurities of various sizes.



-Excellent material performance: Fiberglass filter paper is often used as the filtering material. This material has uniform aperture, low resistance, large dust holding capacity, and good acid, alkali, and high temperature resistance.



-Reasonable structural design: generally in the form of a folding Filter Element. Through folding technology, the filtering area has been increased, allowing for a larger filtering area to be achieved in a smaller space, improving filtration efficiency and pollutant holding capacity.



-Strong adaptability to work pressure: The maximum working pressure difference can reach about 2MPa, which can adapt to various pressure environments of hydraulic and lubrication systems, ensuring stable operation of the filter element under different pressure conditions.



-Easy installation: The inlet and outlet diameter is usually 89, and there are multiple interface forms to choose from, which can be easily installed in the oil suction, pressure oil, return oil and other positions of the hydraulic system, adapting to different equipment and systems.



-Reusable: Some 306608 filter cartridges can be backwashed or cleaned, and their filtration performance can be restored after cleaning, making them reusable and reducing usage costs.


Technical Parameter

-Filtration accuracy: Eaton's related model filter cartridge has a filtration accuracy of 25 μ m, and some brand products have a filtration accuracy of 1-500 μ m to choose from.



-Working medium: usually lubricating oil, used to filter impurities in oil.



-Working temperature: It can generally operate within the temperature range of -25 ℃ to+120 ℃.



-Maximum working pressure difference: Eaton's filter cartridge of this model has a maximum working pressure difference of 10 bar, and some products can reach a maximum working pressure difference of 2 MPa or 5 MPa.



-Size parameters: Eaton 01. NR series 306608 filter cartridge product has a length of 400mm, a diameter of 160mm, and a weight of approximately 4.37kg.



-Filter material: The common material is fiberglass filter paper, and some also use materials such as stainless steel wire mesh. For example, some Eaton models use stainless steel wire mesh material.



-Filter cartridge form: mostly foldable filter cartridges, which can increase the filtration area and improve filtration efficiency.
