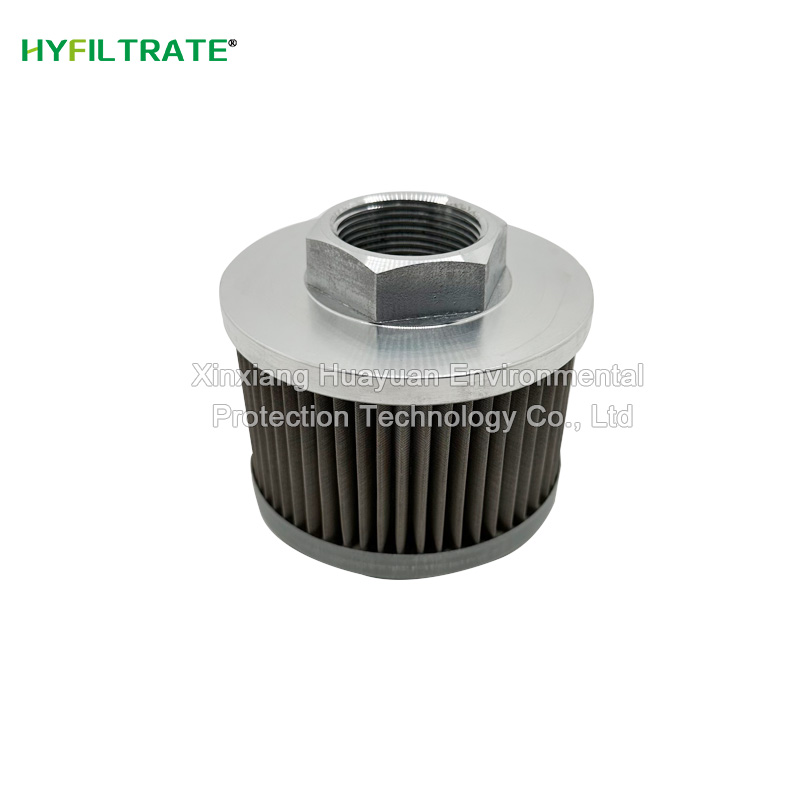

SFG-10-100W hydraulic oil filter element

-SFG-10-100W hydraulic oil filter element has good filtration performance: for the filter particle size of 2-200 μ m, it can achieve uniform surface filtration performance, effectively filter solid particles and gel like substances in hydraulic oil, control oil pollution, and protect hydraulic components. -High strength and pressure resistance: The oil suction filter element should be able to withstand pressure without deformation, without affecting oil flow, ensuring stable filtration accuracy.

Basic Barameters

Brand: HYFILTRATE

Model: SFG-10-100W

Filtration accuracy: 1-40μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

-SFG-10-100W hydraulic oil Filter Element has good filtration performance: for the filter particle size of 2-200 μ m, it can achieve uniform surface filtration performance, effectively filter solid particles and gel like substances in hydraulic oil, control oil pollution, and protect hydraulic components.

-High strength and pressure resistance: The oil suction filter element should be able to withstand pressure without deformation, without affecting oil flow, ensuring stable filtration accuracy. The maximum working pressure of some products can reach 21MPa, which can adapt to the working conditions of various hydraulic systems.

-High quality materials: The filter material can be made of stainless steel wire mesh and can be reused after cleaning. The end cap and frame can be made of materials such as SUS316L stainless steel, which has strong corrosion resistance and fatigue resistance.

-Wide temperature resistance range: It can usually work in the temperature range of -40 ℃ -150 ℃, with slight differences in products from different manufacturers, and can adapt to various working environments.

-Good fluidity: The stainless steel filter element has uniform pores and a large flow rate per unit area, allowing hydraulic oil to pass smoothly and meet the flow requirements of the hydraulic system.

-Easy to install: It can be installed on the oil suction path of the hydraulic system, as well as on the pressure oil circuit, return oil pipe, etc. as needed. Widely used in various fields such as steel, electricity, metallurgy, etc.

Technical Parameter

-Filtering accuracy: usually 100 μ m or 180 μ m, it can effectively filter out particle impurities in hydraulic oil.

-Flow rate: The maximum flow rate can reach 1500L/min, and there are various flow specifications available, such as 100L/min, 200L/min, 330L/min, etc.

-Working temperature: generally between -30 ℃ and 110 ℃, able to adapt to a wide range of temperature environments.

-Nominal pressure: The nominal pressure is usually low, possibly around 0.02 MPa, and may vary among products from different manufacturers.

-Filter materials: Common filter materials include fiberglass filter paper, stainless steel woven mesh, etc., which have good filtration performance and anti fouling ability.

-Sealing material: Fluorine rubber rings or nitrile rubber are commonly used, with good oil resistance and reliable sealing.

-Liquid flow direction: Generally filtered from the outside to the inside, in line with the conventional design of hydraulic system oil suction filters, which can effectively intercept impurities.
