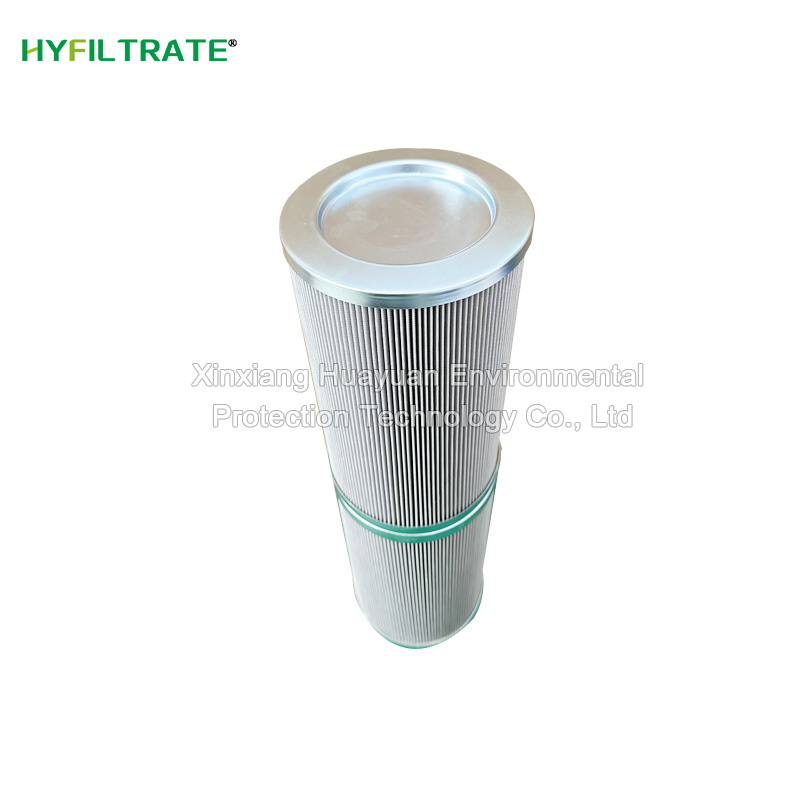

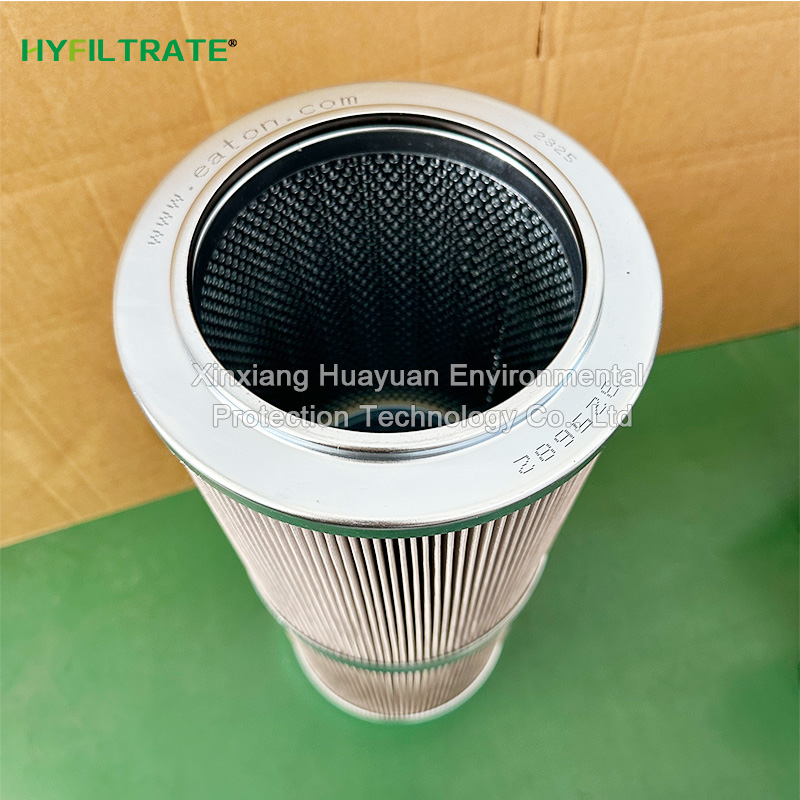

Replace EATON 325682 hydraulic oil filter element

Replace EATON 302227 hydraulic oil filter element has high-precision filtration: it can effectively intercept fine particles, colloids and other impurities in hydraulic oil, with a filtration accuracy of usually several micrometers to tens of micrometers, ensuring the cleanliness of the oil entering the hydraulic system, protecting precision components such as hydraulic pumps, control valves, etc., reducing wear and extending equipment service life. -High pollutant holding capacity: The filter e

Basic Barameters

Brand: HYFILTRATE

Model: 302227

Filtration accuracy: 1-40μm

External diameter: 191mm

Length: 500mm

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

Replace EATON 302227 hydraulic oil Filter Element has high-precision filtration: it can effectively intercept fine particles, colloids and other impurities in hydraulic oil, with a filtration accuracy of usually several micrometers to tens of micrometers, ensuring the cleanliness of the oil entering the hydraulic system, protecting precision components such as hydraulic pumps, control valves, etc., reducing wear and extending equipment service life.

-High pollutant holding capacity: The filter element adopts a pleated design, which increases the filtering area, thereby enhancing the pollutant holding capacity, accommodating more impurities, reducing replacement frequency, lowering maintenance costs and downtime.

-Excellent pressure resistance: With good mechanical strength, it can withstand high working pressure and operate stably in high-pressure hydraulic systems, ensuring that the filtration effect is not affected by pressure fluctuations.

-Good chemical compatibility: The filter and sealing materials can adapt to various hydraulic oil media, including petroleum based hydraulic oil, water ethylene glycol hydraulic fluid, etc., and maintain stable filtration performance in different chemical environments.

Technical Parameter

-Filtering accuracy: 3-30 μ m, special accuracy can be customized.

-Work pressure: The normal working pressure (MAX) is about 1.0MPa.

-Working temperature: -30 ℃ -+110 ℃.

-Nominal flow rate: If it is a return oil filter element, the nominal flow rate may be between 41-950 (16 bar); If it is a medium and high pressure online filter element, the nominal flow rate may be between 30-1350 (30 bar and high anti explosion pressure difference).

-Filtering direction: Except for AS and TS oil suction filter cartridges that flow from the inside to the outside, Eaton's other filter cartridges are generally designed to flow from the outside to the inside, and 325682 filter cartridges are likely to flow from the outside to the inside.

-Testing standards: Following various ISO standards such as ISO 2941 (Testing of burst resistance/burst pressure ratings) and ISO 2942 (Verification of manufacturing integrity).
