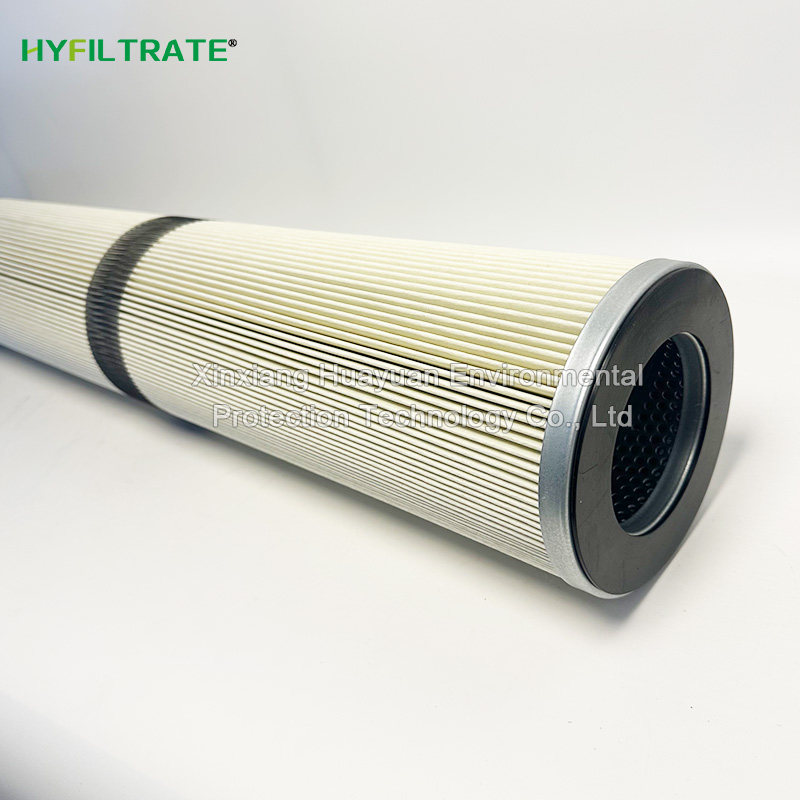

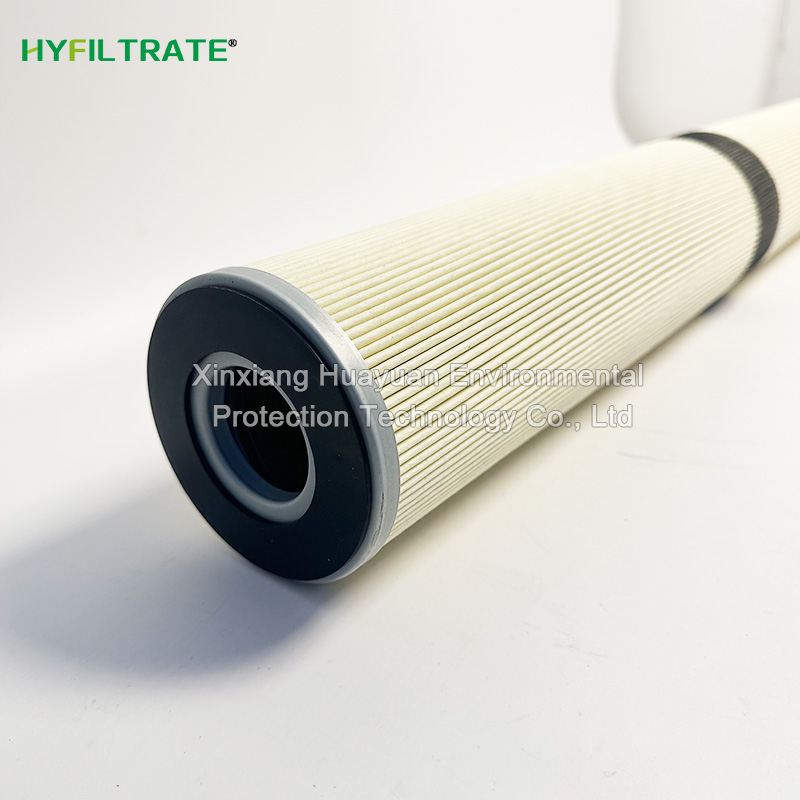

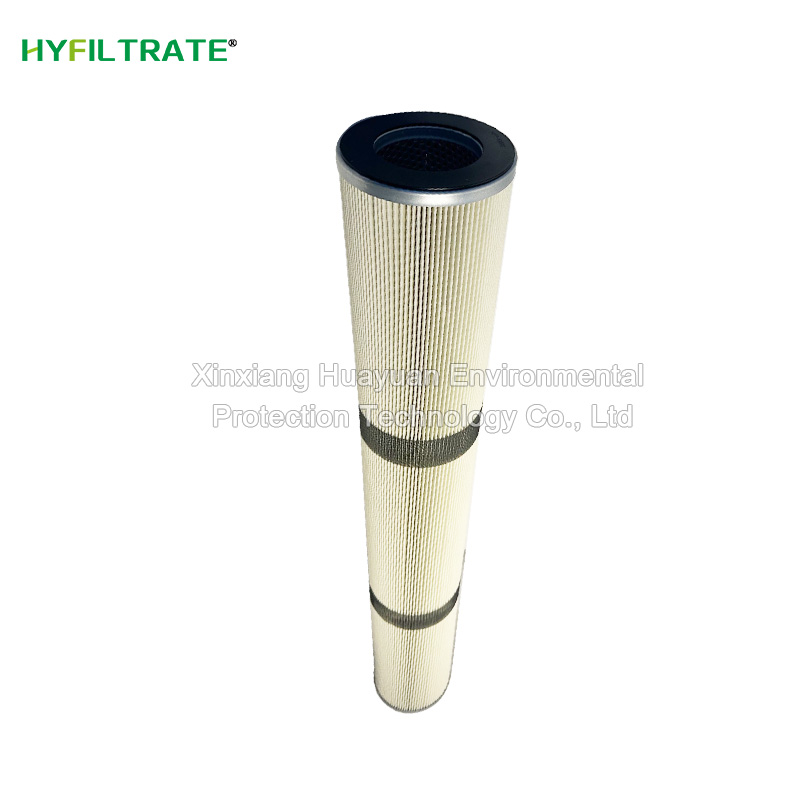

Replace FO-644PLF1M Velcon coalescing filter cartridge is a filtration device used in oil-water separation systems, which is an important functional component of fine filters. It can separate oil-water mixtures, suspension solutions, milk solutions, etc. It is mainly used in the treatment of hydrocarbon compounds such as aviation fuel, turbine oil, liquefied petroleum gas, as well as industrial fields such as petroleum, chemical, environmental protection, and textile.

Replace FO-644PLF1M coalescing filter cartridge uses multi-layer composite structure filter paper and surface treated glass fiber or polyester fiber as the coalescing medium. The coalescence Filter Element achieves impurity filtration and moisture coalescence through composite filter paper and glass fiber layer, while the separation filter element uses PTFE hydrophobic material to separate large water droplets after coalescence. The two work together to complete five stages: solid-liquid separation, emulsion breaking, coalescence, separation, and adsorption [1-2]. It has the characteristics of high filtration accuracy, large pollutant holding capacity, and long service life. The product can remove small water droplets and impurities from aviation kerosene in the aviation field, and has applications in industries such as power, automotive manufacturing, food and medicine

General specifications

1. The maximum pressure differential rating is 75 psi

2. The pH range is 5 to 9

3. Maximum operating temperature 150 ° -160 ° F

4. Aluminum center tube

5. Nitrile rubber gasket

The standard configuration for a 5.6-inch diameter threaded base coalescer is an injection molded end cap;

7.6-inch diameter open ink cartridges come standard with aluminum end caps.

8. All filter cartridge end caps with a diameter of 6 inches are directly bonded to the filter media using high-strength epoxy resin or polyurethane.

9. The 4-inch diameter ink cartridge uses molded polyester resin or injection molded end caps.
