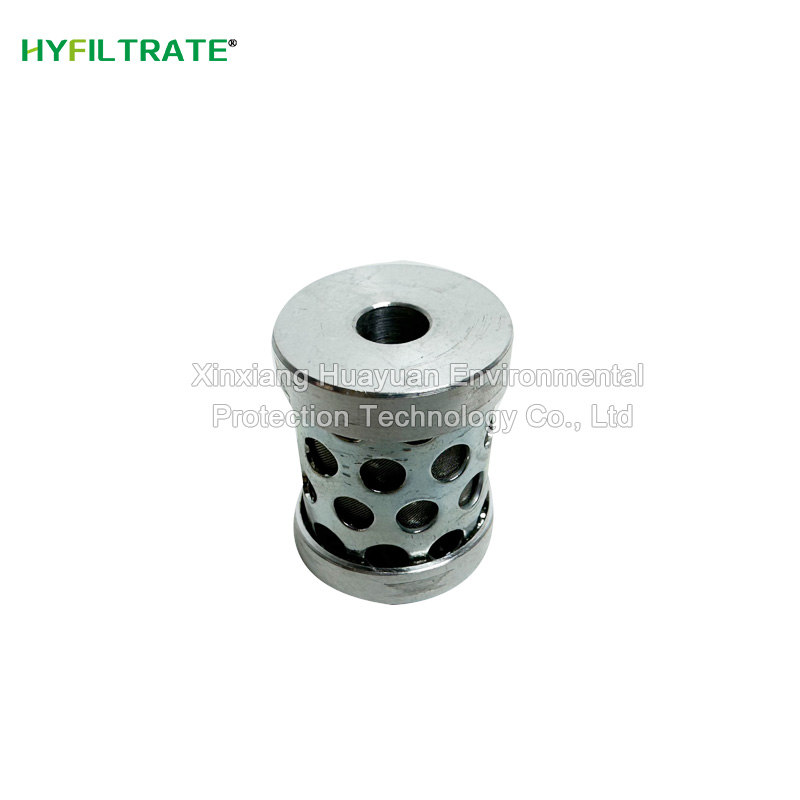

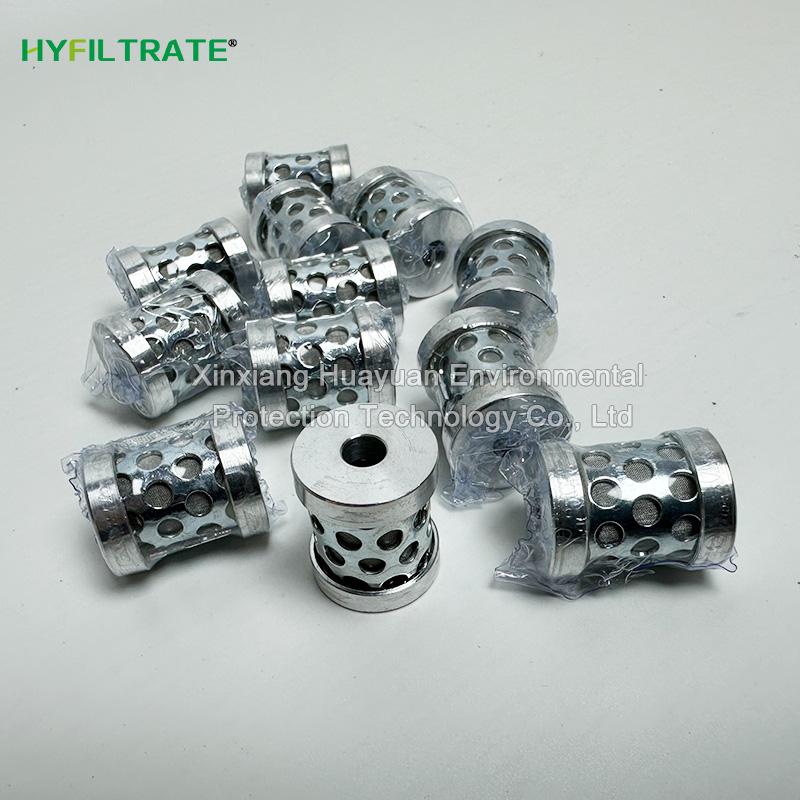

17.5x3.6x21x20um hydraulic oil filter element

The 17.5x3.6x21x20um hydraulic oil filter element has a filtration accuracy of 20 microns to intercept impurities. The specific 17.5x3.6x21 size is suitable for related equipment, and although the brand is niche, it can provide basic filtration guarantee for fluid media.The characteristics of the 17.5x3.6x21x20um filter cartridge are as follows:In terms of filtering performanceClear filtration accuracy: With a filtration accuracy of 20 microns, it can effectively intercept larger particle impuri

Basic Barameters

Brand: HYFILTRATE

Model: 17.5x3.6x21x20um

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

The 17.5x3.6x21x20um hydraulic oil Filter Element has a filtration accuracy of 20 microns to intercept impurities. The specific 17.5x3.6x21 size is suitable for related equipment, and although the brand is niche, it can provide basic filtration guarantee for fluid media.

The characteristics of the 17.5x3.6x21x20um filter cartridge are as follows:

In terms of filtering performance

Clear filtration accuracy: With a filtration accuracy of 20 microns, it can effectively intercept larger particle impurities in common fluid media such as hydraulic oil and lubricating oil, reduce the wear of equipment components caused by impurities, and is suitable for working conditions with certain requirements for cleanliness but not too strict. It can provide basic cleaning guarantee for the system.

The filter material is unknown but has adaptability: although the filter material is not yet clear, the filter element filter material with this accuracy generally has a certain ability to absorb pollutants, can accommodate a certain amount of impurities, and extend the service life; And it may be suitable for the filtration needs of various common fluid media.

In terms of size specifications

Specific size adaptation: The size of 17.5x3.6x21mm is an important external feature that can meet the installation space requirements of specific equipment or filtering devices. It can adapt to corresponding specifications of filter housings and other filtering components to ensure the feasibility and stability of installation.

Technical Parameter

The technical parameters of the 17.5x3.6x21x20um hydraulic oil filter element are as follows:

Filtering accuracy: Known as 20 microns, this means it can intercept particles and impurities with a diameter greater than 20 microns, meet the requirements of general hydraulic systems for oil cleanliness, effectively protect hydraulic components, and reduce wear.

External dimensions: The size is 17.5x3.6x21 (unit not specified, may be in mm), which determines the installation space requirements of the filter element and needs to match the size of the compatible filter housing or filter device to ensure correct installation and use.

Filter material: Due to insufficient information, it is impossible to determine the filter material, but common hydraulic oil filter materials include fiberglass, stainless steel mesh, etc. If it is a glass fiber filter material, it has the characteristics of high filtration efficiency and strong pollutant holding capacity; Stainless steel mesh filter material has good corrosion resistance and can be repeatedly cleaned and used.

Applicable media: Based on its potential use in hydraulic systems, the applicable media may include common hydraulic fluids such as general hydraulic oil and phosphate ester hydraulic oil, as well as other similar oil media such as lubricating oil.

Working pressure: Referring to similar hydraulic oil filter cartridges, the working pressure may be between 0.6-21MPa, depending on the structural strength of the filter cartridge and the pressure resistance of the filter material.

Working temperature: The working temperature range of a typical hydraulic oil filter element is around -20 ℃ -100 ℃. If special sealing materials and filter materials are used for the filter element, it may have a wider temperature adaptation range.

Pollutant holding capacity: The pollutant holding capacity is related to factors such as the area, structure, and filtration accuracy of the filter material. Typically, a filter cartridge with a filtration accuracy of 20 microns has a relatively large dirt holding capacity, but the specific value needs to be determined through experiments or product manuals, and is generally expressed in grams.

Flow rate: The flow rate of the filter element depends on factors such as its size, the permeability of the filter material, and the pressure difference of the system. For this filter element, under suitable working conditions, the flow rate may range from tens to hundreds of liters per minute, for example, a hydraulic oil filter element of similar size and accuracy may have a flow rate of around 400L/Min.
