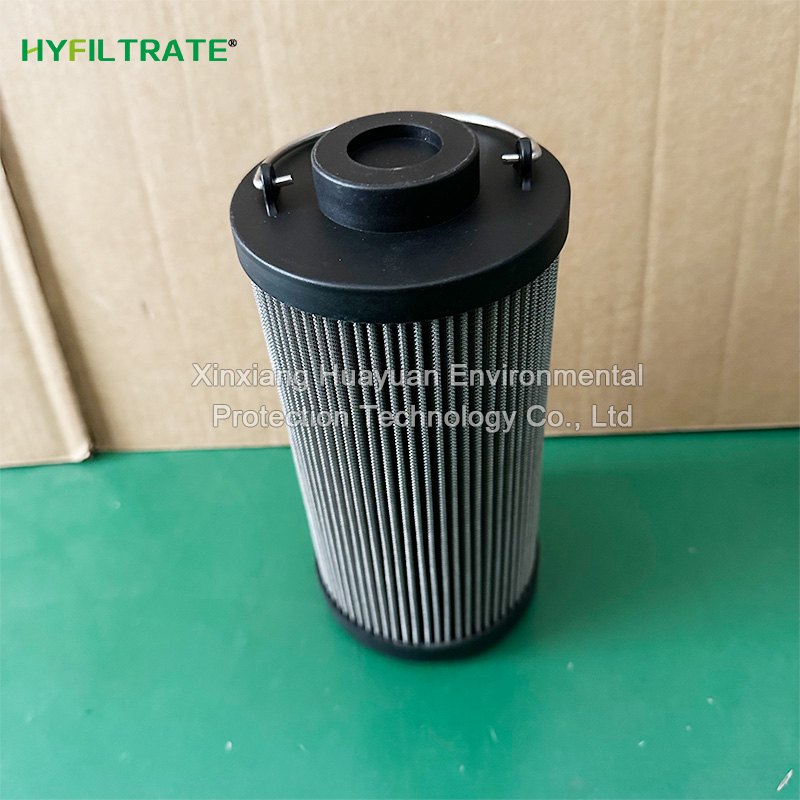

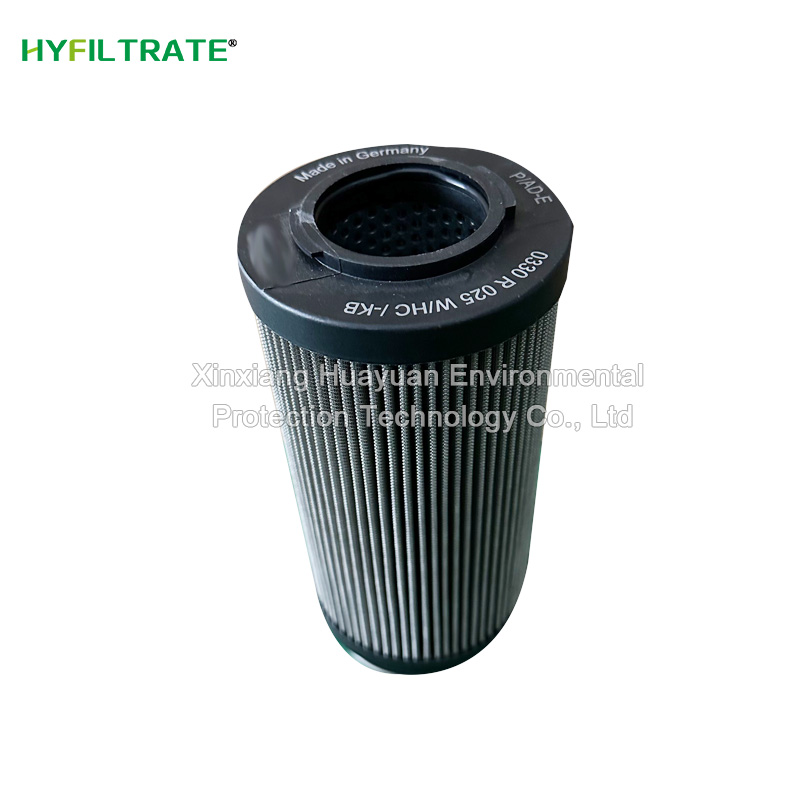

Replace HYDAC 0330 R 025 W/HC -/KR hydraulic oil filter element

Replacing HYDAC 0330 R 025 W/HC -/KR hydraulic oil filter cartridge with a rated flow rate of 330L/min, it is suitable for high flow conditions. The filtration design is reasonable from the outside to the inside, with a filtration accuracy of 25 microns to intercept impurities. The glass fiber filter material, combined with HC high-performance technology, has strong dirt absorption and high efficiency, and its structural characteristics are suitable for multiple scenarios, reliably protecting ke

Basic Barameters

Brand: HYFILTRATE

Model: 0330 R 025 W/HC -/KR

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

The 0330 R 025 W/HC -/KR filter cartridge has the following characteristics:

filterability

Accuracy guarantee: With a filtration accuracy of 25 microns, it can effectively intercept larger particles and impurities in hydraulic oil, maintain system cleanliness, protect key hydraulic components such as pumps and valves, reduce wear, and extend component service life.

Efficient filter material: using glass fiber filter material, with a large dirt holding capacity, can accommodate more impurities, and reduce the frequency of Filter Element replacement; At the same time, combined with HC high-performance technology, the filtration efficiency is high, and the filtering effect on target particle size impurities is excellent.

Traffic processing

The rated flow rate reaches 330L/min, suitable for high flow hydraulic systems. It can quickly process a large amount of hydraulic oil without causing excessive pressure loss, ensuring stable operation of the system and meeting the requirements of high flow conditions.

Structure Design

Reasonable filtration flow direction: The design of the filtration flow direction from the outside to the inside can fully utilize the surface area of the filter material, allowing the hydraulic oil to fully contact the filter material and improve the filtration effect. At the same time, it is easy for impurities to adhere to the outside of the filter material, which is conducive to observing and judging the blockage of the filter element.

Strong structural adaptability: The structure or customized characteristics represented by the "/KR" symbol enable it to better adapt to different brands and models of hydraulic equipment in terms of connection methods, installation dimensions, etc., with a wide range of application scenarios.

Technical Parameter

The technical parameters of 0330 R 025 W/HC -/KR filter cartridge are as follows:

Filter relevant parameters

Filtering accuracy: 25 μ m, can effectively intercept particle impurities with a diameter greater than 25 microns.

Filtration efficiency: Based on glass fiber filter material and HC high-performance technology, it has high filtration efficiency for specific particle sizes and can effectively purify media such as hydraulic oil.

Pollutant carrying capacity: relatively high, can accommodate more impurities, reduce replacement frequency, and lower maintenance costs.

Flow and pressure parameters

Rated flow rate: 330L/min, capable of meeting the requirements of high flow hydraulic systems.

Working pressure: It can usually withstand high pressure, with a common working pressure range of around 210 bar (21 MPa), ensuring stable operation in high-pressure hydraulic systems.

Initial pressure difference: small, generally between 0.3-0.6 bar (0.03-0.06 MPa), with minimal obstruction to system flow.

Material and structural parameters

Filter material: Glass fiber, with good filtering performance and mechanical strength.

End cap material: mostly made of metal (such as aluminum alloy) or high-performance plastic material to ensure sealing and structural strength.

Sealing materials: commonly used are nitrile rubber (NBR), fluororubber (FKM), etc., which can adapt to different media and temperature environments to ensure sealing effect.

Structural form: Folding structure, increasing filtering area and improving filtering performance.

Working environment parameters

Working temperature: The general working temperature range is -20 ℃ -100 ℃, which can adapt to a wide temperature range of working environment.
