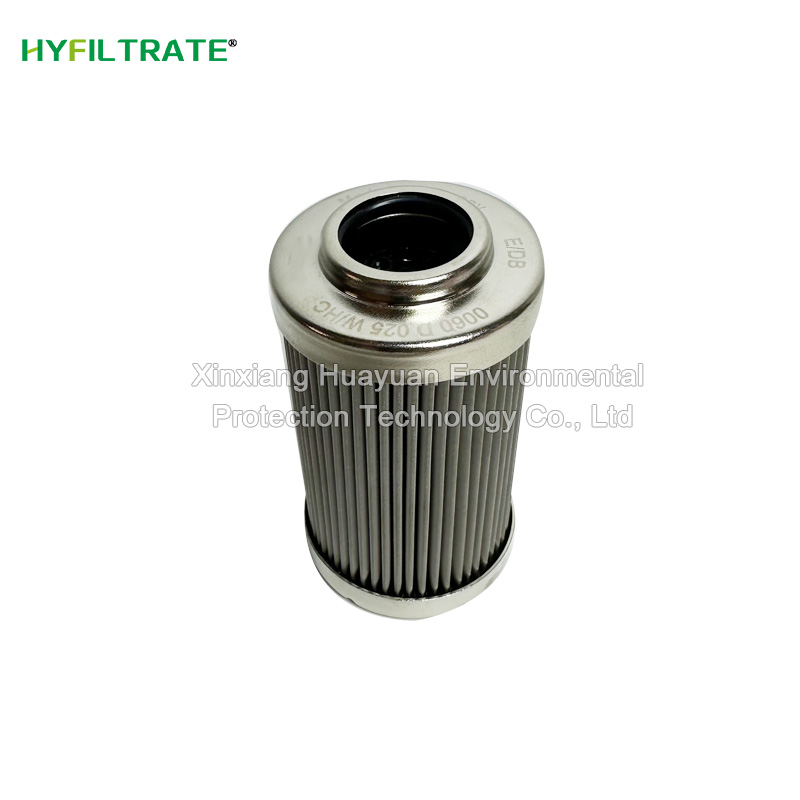

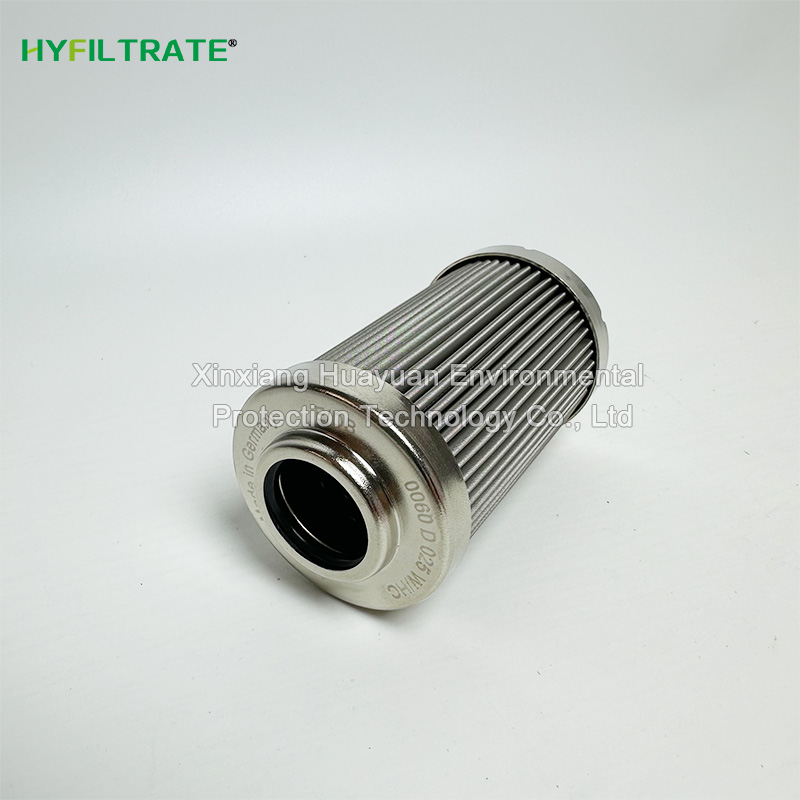

Replace HYDAC 0060 D 025 W/HC hydraulic oil filter element

Replacing the HYDAC 0060 D 025 W/HC hydraulic oil filter element, the 25 micron filtration accuracy effectively intercepts impurities. The glass fiber filter material has a high dirt holding capacity and is equipped with HC high-performance technology, resulting in outstanding filtration efficiency and long service life. It is widely applicable to hydraulic lubrication systems in multiple fields and can reliably protect key components and reduce the probability of failure.The 0060 D 025 W/HC fil

Basic Barameters

Brand: HYFILTRATE

Model: 0060 D 025 W/HC

Filtration accuracy: 1-50μm

External diameter: Standard size

Length: Standard size

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

Replacing the HYDAC 0060 D 025 W/HC hydraulic oil Filter Element, the 25 micron filtration accuracy effectively intercepts impurities. The glass fiber filter material has a high dirt holding capacity and is equipped with HC high-performance technology, resulting in outstanding filtration efficiency and long service life. It is widely applicable to hydraulic lubrication systems in multiple fields and can reliably protect key components and reduce the probability of failure.

The 0060 D 025 W/HC filter cartridge has the following characteristics:

Excellent filtering performance

Precision adaptation: With a filtration accuracy of 25 microns, it can effectively intercept most of the particles and impurities in hydraulic oil, suitable for hydraulic systems that require high cleanliness but are not too strict. It can ensure the normal operation of the system without excessively increasing costs.

High efficiency filter material: using glass fiber filter material, with a large dirt holding capacity, can accommodate more impurities, and reduce replacement frequency; And the filtration efficiency is high, which can ensure the cleanliness of hydraulic oil and extend the service life of components in the system.

Technical support: HC high-performance filtration technology further optimizes the filtration effect. Compared with ordinary filter cartridges, it has significantly improved filtration efficiency and pollutant holding capacity, ensuring stable operation of the system.

Reasonable traffic carrying capacity

The rated flow rate reaches 60L/min, which can better meet the needs of most medium flow hydraulic systems. While ensuring the filtration effect, it will not cause excessive obstruction to the system's flow rate, reduce pressure loss, and maintain the efficient operation of the system.

Widely applicable

Hydraulic and lubrication systems in various fields such as engineering machinery, industrial manufacturing, and wind power equipment can work stably and have good adaptability to different working environments and medium types, with high reliability.

Technical Parameter

The common technical parameters of 0060 D 025 W/HC filter cartridge are as follows:

Filter relevant parameters

Filtering accuracy: 25 μ m, capable of effectively intercepting particle impurities with a diameter greater than 25 microns.

Filtration efficiency: Based on glass fiber filter materials and high-performance HC technology, it has high filtration efficiency for specific particle sizes and can significantly purify media such as hydraulic oil.

Polluting capacity: relatively high, can accommodate more impurities, extend replacement cycle, and reduce maintenance costs.

Flow and pressure parameters

Rated flow rate: 60L/min, suitable for hydraulic systems with moderate flow requirements.

Working pressure: usually around 210 bar (21 MPa), it can withstand a certain pressure environment and ensure normal operation under high-pressure working conditions of the hydraulic system.

Initial pressure difference: small, generally between 0.3-0.5 bar (0.03-0.05 MPa), to reduce obstruction to system flow.

Material and structural parameters

Filter material: Glass fiber, with good filtering performance and mechanical strength.

End cap material: Generally, metal materials (such as aluminum alloy) or high-performance plastics are used to ensure sealing and structural strength.

Sealing materials: commonly used are nitrile rubber (NBR), fluororubber (FKM), etc., suitable for different media and temperature environments, ensuring good sealing effect.

Structural form: Folding structure, increasing filtering area and improving filtering performance.

Working environment parameters

Working temperature: -20 ℃ -100 ℃, able to adapt to a wide temperature range of working environment.
