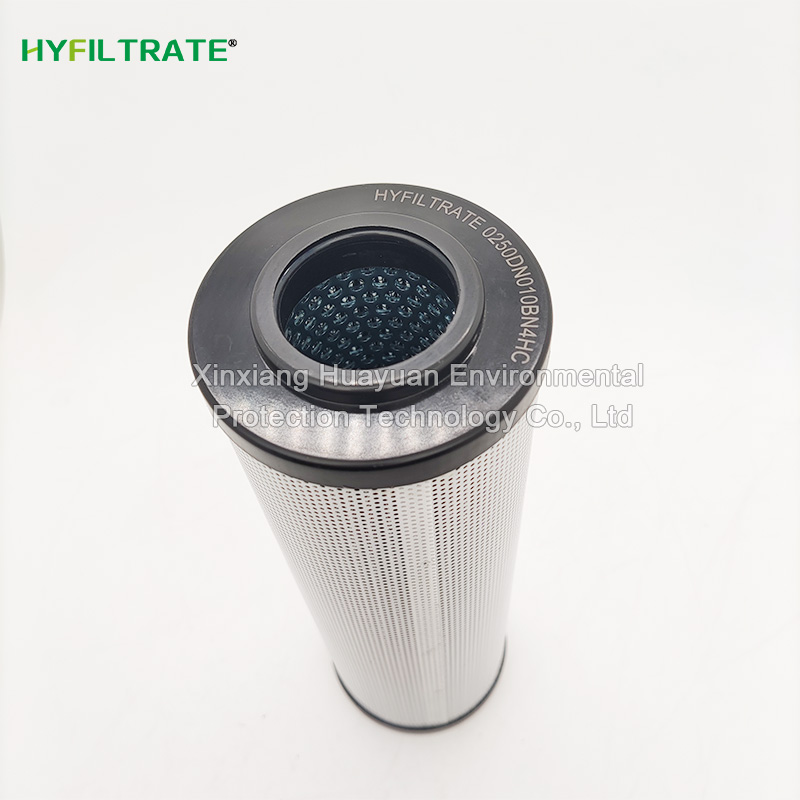

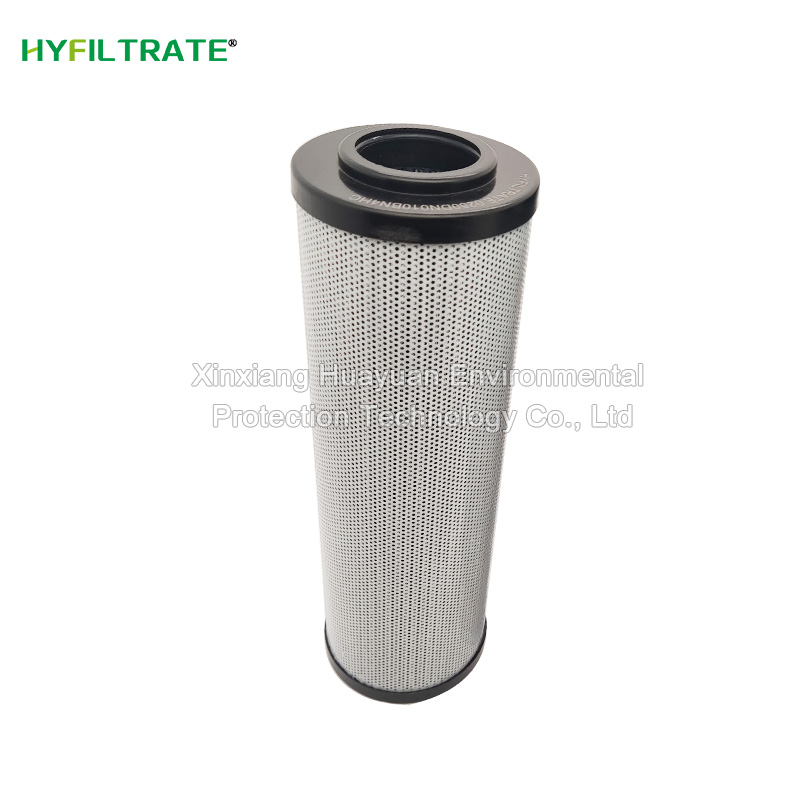

Replace HYDAC 0250DN003BH4HC hydraulic oil filter element

0250DN003BH4HC hydraulic oil filter element has the advantages of high filtration accuracy, large dirt holding capacity, sturdy and pressure resistant structure, strong corrosion resistance and adaptability of filter material, and good sealing effect.The characteristics of 0250DN003BH4HC hydraulic oil filter element are summarized as follows:Filtering accuracy: With high-precision filtering capability, it can effectively intercept fine particles and impurities, ensure the cleanliness of hydrauli

Basic Barameters

Brand: HYFILTRATE

Model: 0250DN003BH4HC

Filtration accuracy: 1-50μm

External diameter: 80mm

Length: 250mm

Filter media: Hydraulic oil

Filter element type: Hydraulic oil filter

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

0250DN003BH4HC hydraulic oil Filter Element has the advantages of high filtration accuracy, large dirt holding capacity, sturdy and pressure resistant structure, strong corrosion resistance and adaptability of filter material, and good sealing effect.

The characteristics of 0250DN003BH4HC hydraulic Oil Filter Element are summarized as follows:

Filtering accuracy: With high-precision filtering capability, it can effectively intercept fine particles and impurities, ensure the cleanliness of hydraulic oil, and maintain stable operation of the hydraulic system.

Pollutant carrying capacity: With a large pollutant carrying capacity, it can accommodate more impurities, reduce the frequency of filter replacement, and lower equipment maintenance costs and downtime.

Structural performance: The structure is sturdy, with excellent compressive performance, and can work stably in high-pressure environments without deformation or damage.

Chemical stability: The filter material has good chemical stability, strong corrosion resistance, and is suitable for various types of hydraulic oils, with a wide range of applicable working conditions.

Sealing effect: Excellent sealing performance can effectively prevent unfiltered oil from bypassing, ensure filtering effect, and improve the reliability of hydraulic systems.

Technical Parameter

0250DN003BH4HC Hydraulic Oil Filter Element Technical Parameters:

Filter material: Glass fiber material is commonly used, but metal material may also be used.

Filtering accuracy: Common specifications include 5 μ m, 10 μ m, 20 μ m, 25 μ m, etc., which can effectively intercept particles of different sizes and impurities.

Nominal pressure: It can generally reach 21 MPa and can work in hydraulic systems with higher pressures.

Working temperature: The working temperature range is usually between -30 ℃ and+110 ℃, which can adapt to a wide range of temperature conditions.

Flow direction: The flow direction of the filter element is from outside to inside.

Allowable pressure difference: BH type glass fiber filter cartridge allows a pressure difference of usually 210 bar, which can work normally under larger pressure differences to ensure filtration efficiency.

Pollutant carrying capacity: With a specific filtration accuracy, it has a certain pollutant carrying capacity. For example, when 3 μ m Δ P=5bar, the ISOMTD pollutant carrying capacity has a corresponding value, which can reduce the frequency of replacement.
