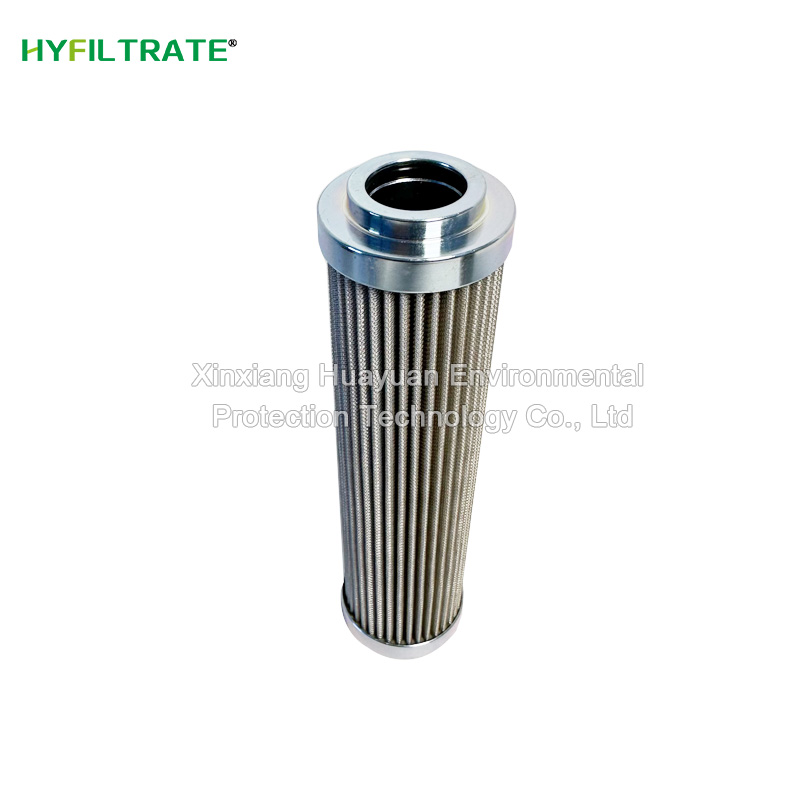

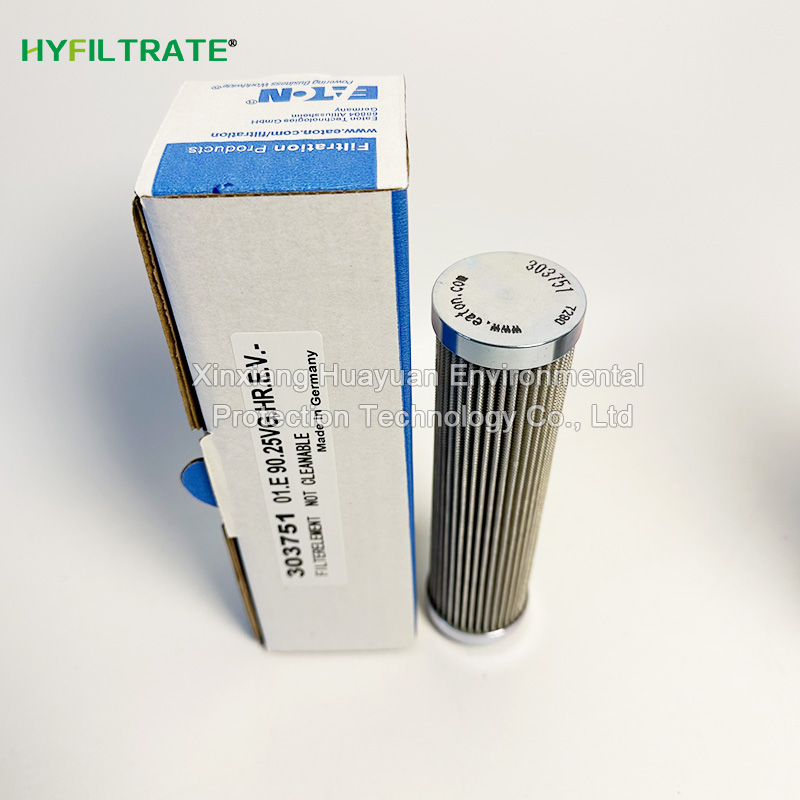

01. E90.25VG. HR. E.V 303751 replace EATON filter element 01. E90.25VG. HR. E.V 303751 replace EATON filter element

01. E90.25VG. HR. E.V 303751 replace EATON filter element

01. E90.25VG. HR. E.V 303751 can replace EATON filter element to remove a small amount of solid particles in liquid, which can protect the normal operation of equipment or the cleanliness of air. When the fluid enters the filter element with a certain specification filter, its impurities are blocked, and the clean fluid flows out through the filter element. Can filter hydraulic oil, emulsion, water ethylene glycol and other media, suitable for lubrication and purification systems of metallurgica


Basic Barameters

Brand: HYFILTRATE

Model: 01. E90.25VG. HR. E.V 303751

Filtration accuracy: 25um

External diameter: 45mm

Length: 175mm

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: Pleated filter element

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

01. E90.25VG. HR. E.V 303751 can replace EATON Filter Element to remove a small amount of solid particles in liquid, which can protect the normal operation of equipment or the cleanliness of air. When the fluid enters the filter element with a certain specification filter, its impurities are blocked, and the clean fluid flows out through the filter element. Can filter hydraulic oil, emulsion, water ethylene glycol and other media, suitable for lubrication and purification systems of metallurgical, petrochemical, textile, thermal power and other equipment.


Technical Parameter

Catalog Number:303751

Model Code:01.E90.25VG.HR.E.V.-

Product Length/Depth:175 mm

Product Diameter:45 mm

Product Weight:0.3 kg

Filter element type:Pressure filter elements

Filter fineness:25 VG

Filter media type:Glass fiber fleece (VG)

Sealing material:Viton

Nominal size:90

Retention rating:20.0 µm

Delta P resistance:232 psi (16 Bar)


TAG: Oil Filter Element Hydraulic oil filter Hydraulic Oil Filter Element
