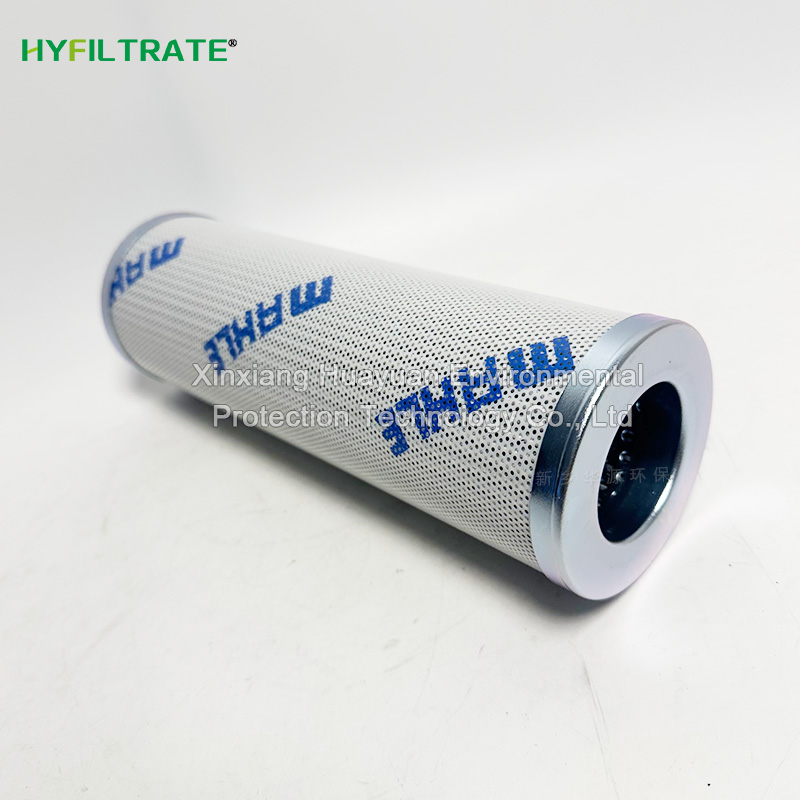

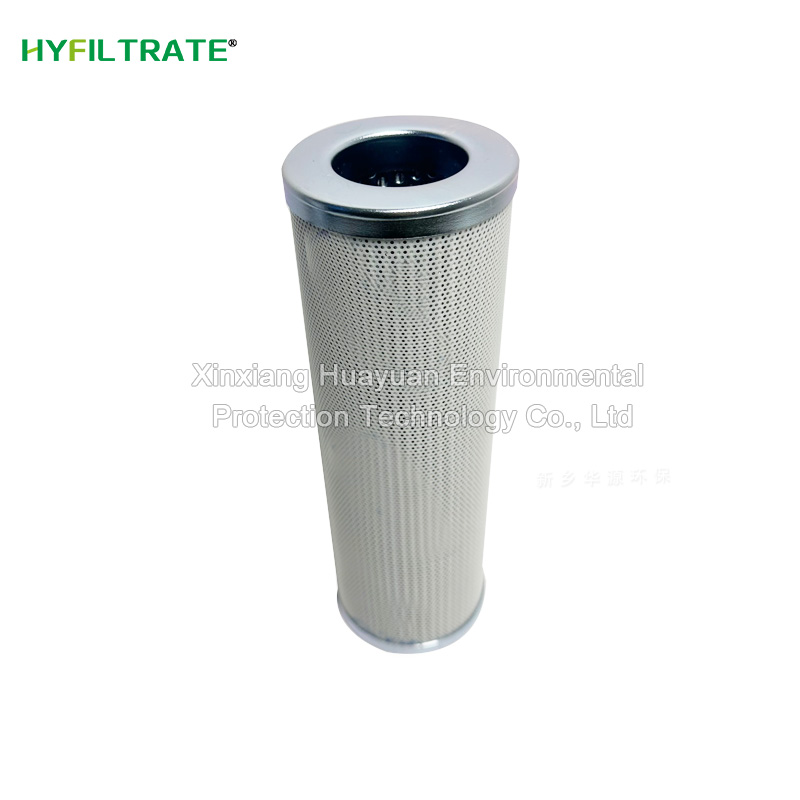

PI4230PSVST25 77680549 Replaces MAHLE filter element

PI4230PSVST25 77680549 replaces the MAHLE filter element with a white PVC outer protective plate and a thickened galvanized steel punch control frame, which can improve the pressure resistance of a single filter element. The precision of the filter element is 10-25 microns, and the end cap is made of metal material, which is easy to install and has a long service life.PI4230PSVST25 77680549 filter cartridge is used for oil suction filtration, filtering out solid particles and gel like substances

Basic Barameters

Brand: HYFILTRATE

Model: PI4230PSVST25 77680549

Filtration accuracy: 10um

External diameter: 83mm

Length: 254mm

Filter media: Hydraulic oil, lubricating oil, glycol, water

Filter element type: Pleated filter element

Country of origin: Xinxiang, Henan, China

jack@cnxyfilter.com

Features Parameters Related

PI4230PSVST25 77680549 replaces the MAHLE Filter Element with a white PVC outer protective plate and a thickened galvanized steel punch control frame, which can improve the pressure resistance of a single filter element. The precision of the filter element is 10-25 microns, and the end cap is made of metal material, which is easy to install and has a long service life.

PI4230PSVST25 77680549 filter cartridge is used for oil suction filtration, filtering out solid particles and gel like substances in the working medium, effectively controlling the pollution level of the working medium. Installed inside the fuel tank and must be installed below the tank level. The filter element is made of stainless steel woven mesh or copper mesh, which can be repeatedly cleaned and used.
