Brand: HYFILTRATE
Model: 0850R025W
Filtration accuracy: 1-50μm
External diameter: Standard size
Length: Standard size
Filter media: Hydraulic oil
Filter element type: Hydraulic oil filter
Country of origin: China

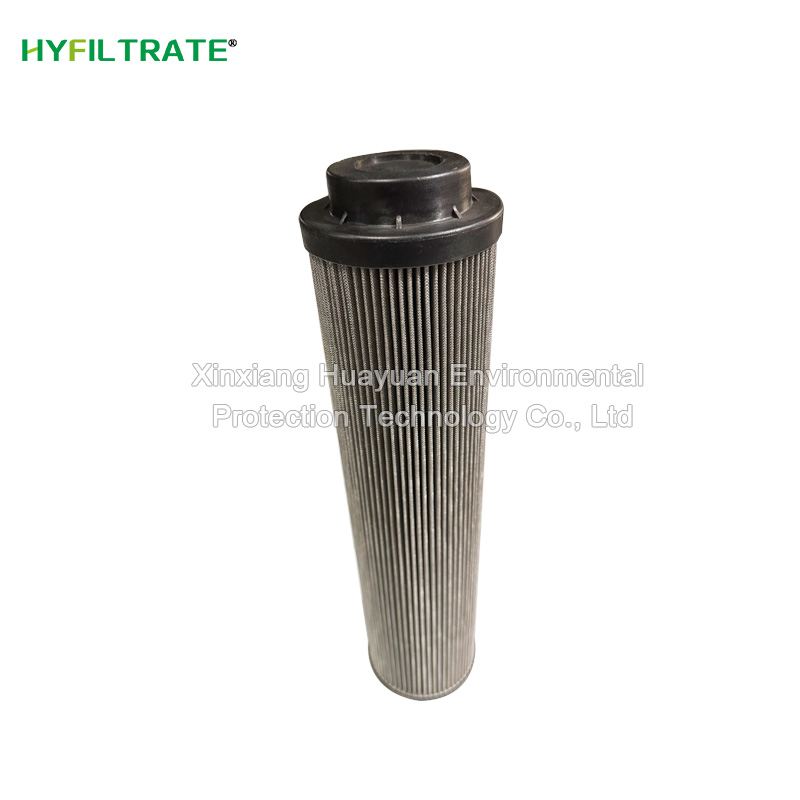

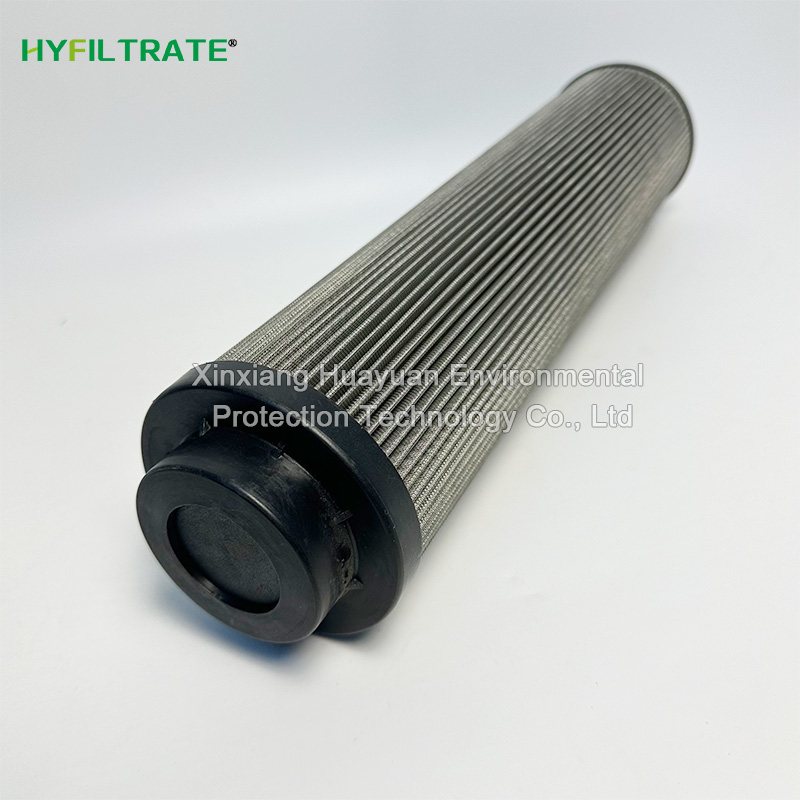

The 0850R025W hydraulic oil Filter Element ensures efficient and stable operation of industrial hydraulic systems with a high flow rate of 850L/min, precise filtration of 25 μ m, high pressure and corrosion resistance of metal mesh, and long-lasting cleaning and reuse characteristics.
The main features of HYDAC 0850R025W hydraulic Oil Filter Element are as follows:
1. Efficient filtration performance
Filtering accuracy: 25 μ m, effectively intercepting solid particles and gel like substances in hydraulic oil
Flow capacity: up to 850L of oil per minute, suitable for high flow hydraulic systems
2. Durable material design
Filter material type: metal mesh (W model) or glass fiber (HC version), corrosion-resistant and washable for reuse
Structural advantages: Foldable deep filtration membrane, strong dirt holding capacity, low pressure difference, long service life
3. Wide compatibility
Chemical compatibility: Suitable for strong acids, strong bases, organic solvents, and conventional hydraulic oils
Application scenarios: Industrial hydraulic systems for metallurgy, wind power, petrochemicals, etc., protecting critical equipment such as coal mills and rolling mills
The technical parameters of HYDAC 0850R025W hydraulic oil filter element are as follows:
Basic parameters
Filtering accuracy: 25 μ m, effectively intercepting solid particles and gel like substances in hydraulic oil
Flow capacity: 850L/min, suitable for high flow hydraulic systems
Working temperature range: 1 ℃~110 ℃, suitable for wide temperature conditions
Maximum working pressure difference: 32MPa, strong high pressure resistance performance
Material and Structure
Filter material type: Glass fiber (HC version) or stainless steel metal mesh (W model), corrosion-resistant and washable for reuse
Sealing material: Fluorine rubber or nitrile rubber (- V suffix model), ensuring sealing under high temperature and high pressure
Application and compatibility
Applicable media: hydraulic oil, lubricating oil, emulsion and water ethylene glycol, etc
Adaptation scenarios: metallurgical rolling mills, wind power hydraulic systems, industrial lubrication equipment, etc
Alternative compatibility: It can replace the original model of Hedeke, and the domestic option has high cost-effectiveness
Other characteristics
Filtration efficiency: above 99.5% (some models)
Inlet and outlet diameter: 110mm
Filter area: 120
