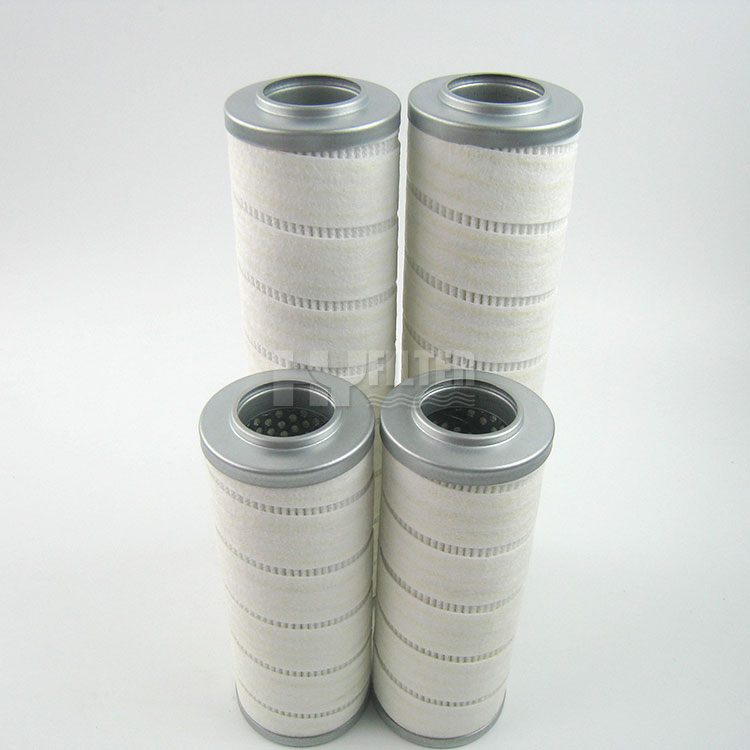

HC9600FKP13H high quality hydraulic oil filter element oil filter

HUAYUANFILTER HC9600FKP13H hydraulic oil filter element is made of high-quality glass fiber, stainless steel wire mesh and other materials. High strength, corrosion resistance, strong dirt holding capacity, good filtering performance and long service life. It is installed in the hydraulic system to remove the worn-out metal power and other mechanical impurities of various components to keep the oil circuit clean and prolong the service life of the hydraulic system. Used in environmental protecti

Basic Barameters

Brand: HUAYUANFILTER

Model: HC9600FKP13H

Filtration accuracy: 1μm~100μm

External diameter: 78mm

Length: 329mm

Filter media: General hydraulic oil

Filter element type: Pleated filter element

Country of origin: China

jack@cnxyfilter.com

Features Parameters Related

HUAYUANFILTER HC9600FKP13H hydraulic oil Filter Element is made of high-quality glass fiber, stainless steel wire mesh and other materials. High strength, corrosion resistance, strong dirt holding capacity, good filtering performance and long service life. It is installed in the hydraulic system to remove the worn-out metal power and other mechanical impurities of various components to keep the oil circuit clean and prolong the service life of the hydraulic system. Used in environmental protection, petrochemical, electric power, metallurgy, shipbuilding, engineering, machinery, agricultural machinery, automobiles, railways, pharmaceuticals, and chemicals.

HUAYUANFILTER is a professional manufacturer of filter elements, which can provide customized processing services for various filter elements with favorable prices and complete models. Welcome to consult and cooperate.

Related models

HC8304FCT39H	HC6500FDN26H	HC9600FKS4H
HC8300FCN16H	HC9600FCS16H	HC9104FKN8H
HC9804FKN8H	HC9404FKS16H	HC9650FKT8H
HC9104FCP13H	HC9104FMN8H	HC9600FCP16H
HC8304FCN39H	HC8900FCN16H	HC9020FCT4Z
HC9601FDP13Z	UE219AS04H	UE319AS20H
HC9601FDP16Z	HC9404FKN26H	HC9604FKS13H
HC9104FMN8H	HC8300FCS16H	HC9600FCN16H
HC2233FKP13H	HC8304FCN39H	HC8300FCT39Z
HC9801FDP8H	HC9601FUT4H	UE219AS13H
HC8314FKN16H	HC8314FKN39H	UE619AN40Z

Technical Parameter

model	HC9600FKP13H
Types of	Hydraulic oil filter element
size	Length: 329 mm. Outer diameter: 78 mm. Inner diameter: 43.2mm
Operating temperature	-25℃--110℃
work pressure	21bar ~ 210bar
Material	Fiberglass, high-quality stainless steel
Working medium	Mineral oil, emulsion, water-glycol, phosphate ester hydraulic oil, etc.
Filtration accuracy	1μm-100μm
Life	3500h-4000h
Advantage	1. Easy to remove pollutants 2. Large flow area 3. Small pressure loss 4. Simple structure 5. Light weight 6. Uniform filter material
pack	In PP bag, carton, wooden box or according to your requirements
Mailing method	Sea, air, express
