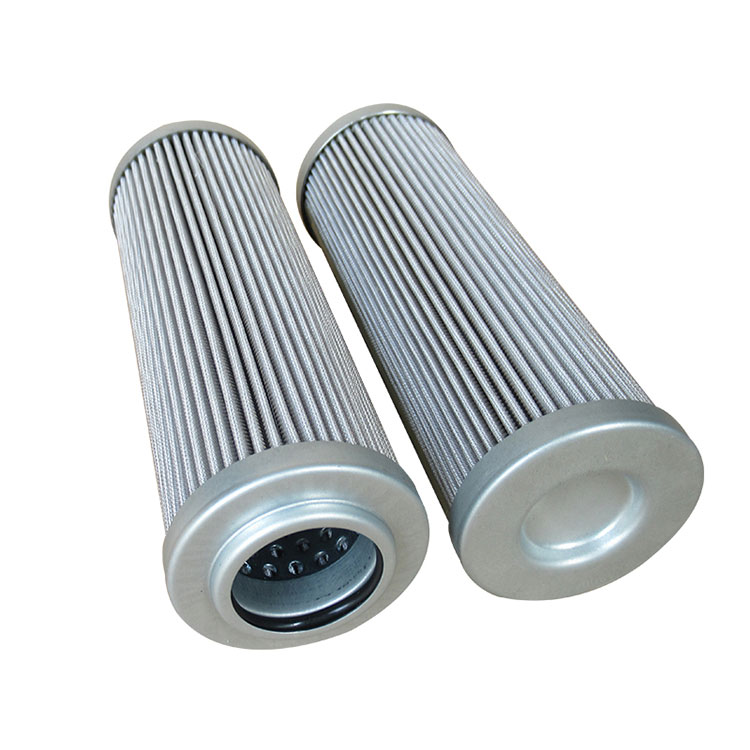

300148 10 micron hydraulic oil filter

HUAYUANFILTER 300148 hydraulic oil filter element adopts deep-type filter material, tapered hole structure, and gradient filtration, which can intercept particles to the greatest extent and prolong its service life. We use high-tech support materials, which can not only support the filter material, avoid compression and deformation, but also protect the material from damage during processing. We also used a special spiral wound belt to make the filter layer firmly connected. The fixed folding di


Basic Barameters

Brand: HUAYUANFILTER

Model: 300148

Filtration accuracy: 1μm~100μm

External diameter: Standard

Length: Standard

Filter media: General hydraulic oil, lubricating oil, water, glycol

Filter element type: Pleated filter element

Country of origin: China

HUAYUANFILTER 300148 hydraulic oil Filter Element adopts deep-type filter material, tapered hole structure, and gradient filtration, which can intercept particles to the greatest extent and prolong its service life. We use high-tech support materials, which can not only support the filter material, avoid compression and deformation, but also protect the material from damage during processing. We also used a special spiral wound belt to make the filter layer firmly connected. The fixed folding distance ensures that the fluid flows evenly when penetrating the filter layer. Not only improves the pressure drop, but also extends the service life.


application:

In hydraulic and lubricating systems, this kind of filter can be used to filter solid particles, colloidal substances and other pollutants in the working medium. In addition, they can effectively control the pollution degree of the working medium and ensure the normal operation of the system.


Our products pass the following tests

ISO 2941 collapse and explosion resistance

ISO 2942 Compatibility of materials and fluids

ISO 2943 Compatibility of materials and fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 pressure drop and flow rate

ISO 16889 multi-channel performance test


Technical Parameter

model300148
 Types ofHydraulic oil filter element
sizeStandard, customizable
 Operating temperature-25℃--110℃
 work pressure21bar ~ 210bar
 MaterialFiberglass, high-quality stainless steel
Working mediumMineral oil, emulsion, water-glycol, phosphate ester hydraulic   oil, etc.
 Filtration accuracy1μm-100μm
Life3500h-4000h
Advantage1. Easy to remove pollutants 2. Large flow area 3. Small   pressure loss 4. Simple structure 5. Light weight 6. Uniform filter material
packIn PP bag, carton, wooden box or according to your   requirements
Mailing methodSea, air, express
