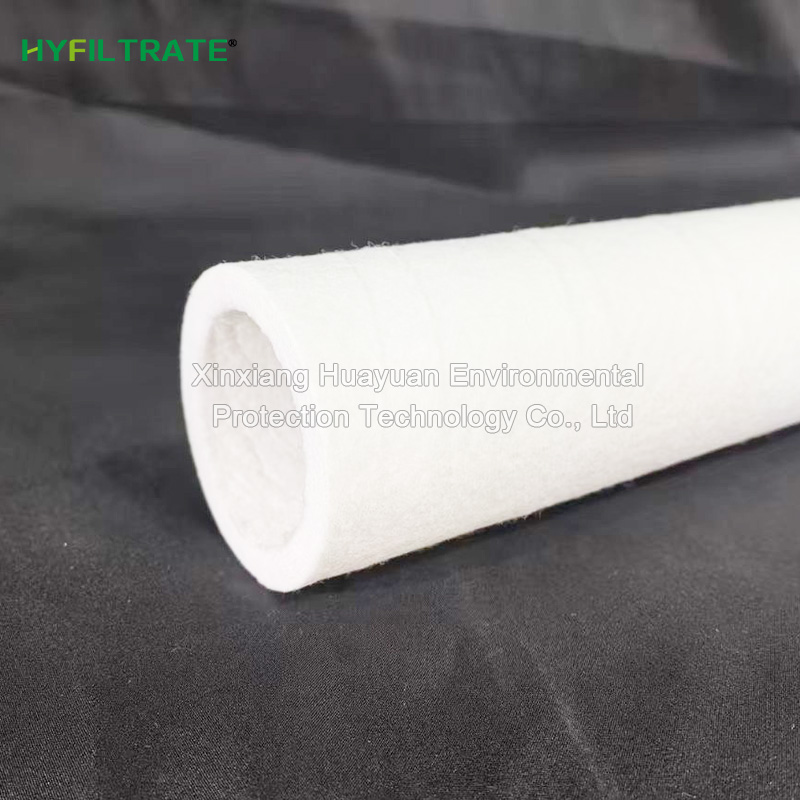

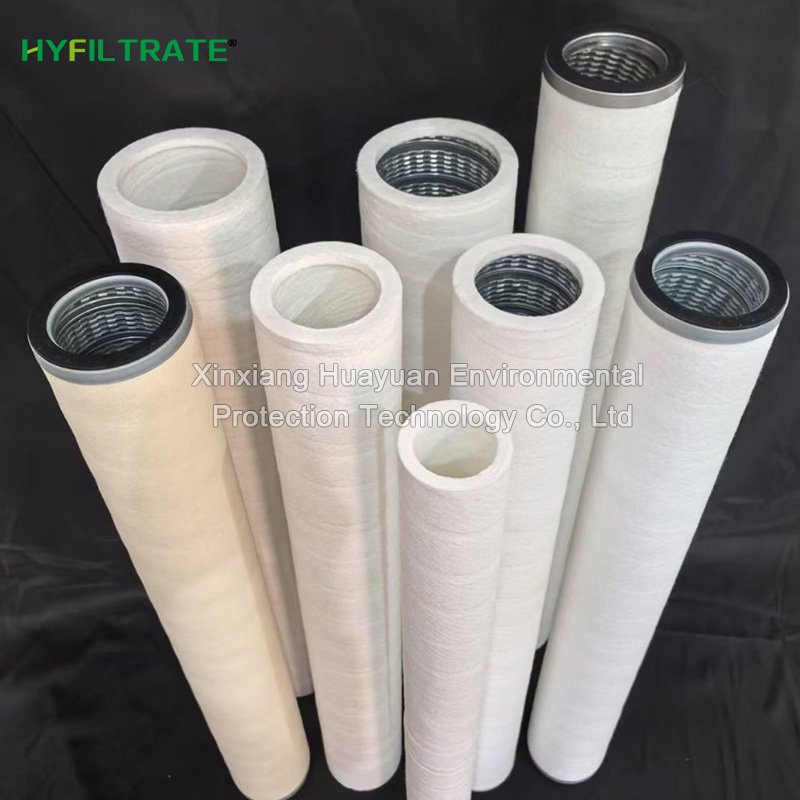

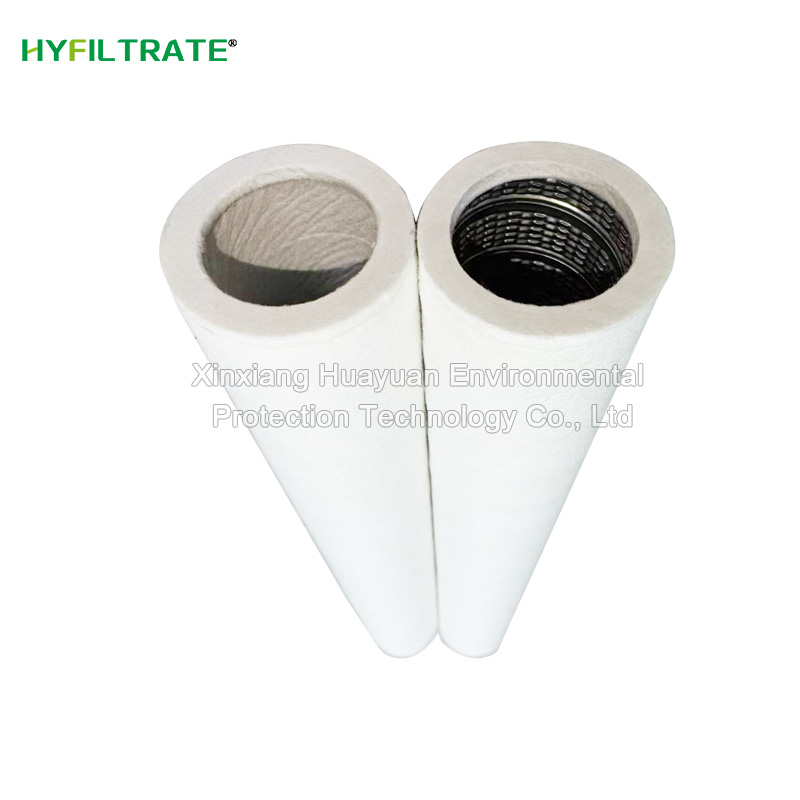

PCHG-336-A natural gas coalescing Filter Element is made of polyester fiber sintered filter material, which has the characteristics of high filtration accuracy and high temperature resistance. The filter element is adhesive free and can be better applied in various filtration media, such as air, oil, natural gas, etc. PCHG-336-A has an outer diameter of 114mm, an inner diameter of 79mm, and a height of 914mm. Its filtration accuracy is as high as 0.5 microns.

SIZE O.D. I.D. LENGTH

12 3” / 76mm 2.1” / 54mm 12” / 305mm

24 3” / 76mm 2.1” / 54mm 24” / 610mm

36 3” / 76mm 2.1” / 54mm 36” / 914mm

72 3” / 76mm 2.1” / 54mm 72” / 1829mm

312 4.5” / 114mm 3.1” / 79mm 12” / 305mm

318 4.5” / 124mm 3.1” / 79mm 18” / 458mm

324 4.5” / 114mm 3.1” / 79mm 24” / 610mm

336 4.5” / 114mm 3.1” / 79mm 36” / 914mm

372 4.5” / 114mm 3.1” / 79mm 72” / 1829mm

536 5.5” / 140mm 4.25” / 108mm 36” / 914mm

572 5.5” / 140mm 4.25” / 108mm 72” / 1829mm

Related Model:

PCHG-12-A

PCHG-24-A

PCHG-36-A

PCHG-72-A

PCHG-312-A

PCHG-318-A

PCHG-324-A

PCHG-336-A

PCHG-372-A

PCHG-536-A

PCHG-572-A

PCHG-12-CE

PCHG-24-CE

PCHG-36-CE

PCHG-72-CE

PCHG-312-CE

PCHG-318-CE

PCHG-324-CE

PCHG-336-CE

PCHG-372-CE

PCHG-536-CE

PCHG-572-CE
