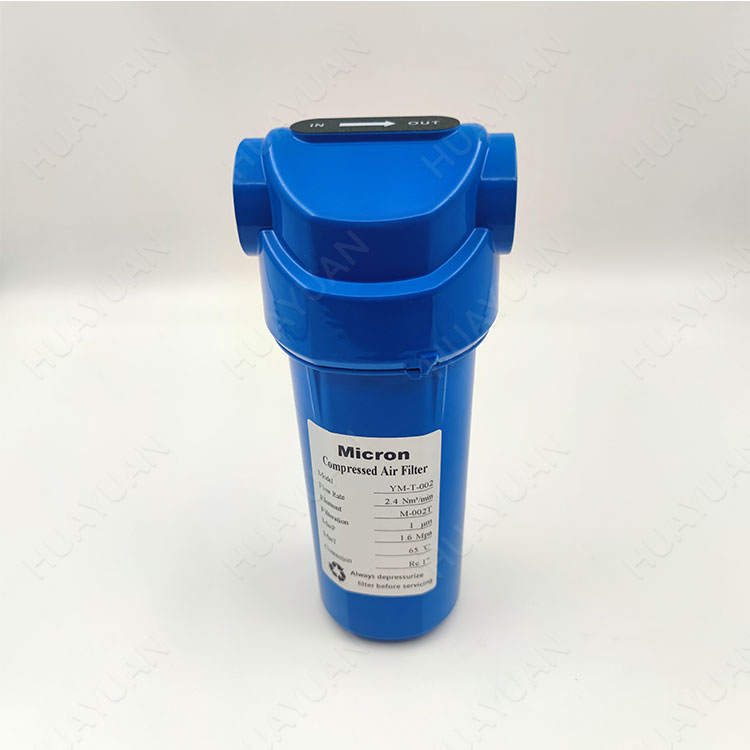

0.01 micron precision filter

HUAYUANFILTER 0.01 micron precision filter can be divided into four levels: C/T/A/H/F, and the filtering accuracy can reach 3um, 1um, 0.01um.Micron filter precision selectionFilter levelFilter typeFilter out particles（Water and oil mist）Oil contentClass CCollision separation3 Micron5ppmClass TCohesive1Micron1ppmClass ACohesive0.01Micron0.01ppmClass FCohesive0.01Micron0.001ppmClass H(Activated carbon)Oil vapor removal0.01Micron0.001ppm

Basic Barameters

Model: YM-*-001,YM-*-002,YM-*-003,YM-*-005,YM-*-008,YM-*-010

Brand: HUAYUANFILTER

Filtration accuracy: 0.001-3um

Origin: China

Size: View parameter table

jack@cnxyfilter.com

Features Parameters Related

HUAYUANFILTER 0.01 micron precision filter can be divided into four levels: C/T/A/H/F, and the filtering accuracy can reach 3um, 1um, 0.01um.

Micron filter precision selection
Filter level	Filter type	Filter out particles（Water and oil mist）	Oil content
Class C	Collision separation	3 Micron	5ppm
Class T	Cohesive	1Micron	1ppm
Class A	Cohesive	0.01Micron	0.01ppm
Class F	Cohesive	0.01Micron	0.001ppm
Class H(Activated carbon)	Oil vapor removal	0.01Micron	0.001ppm

Technical Parameter

Model	Connection size（RC）	Processing capacity	Dimensions
YM-*-001	1/2"、3/4"	1.2Nm3/min	98x213x236
YM-*-002	3/4"、1“	2.4Nm3/min	98x213x236
YM-*-003	1“、1.5"	3.8Nm3/min	117x253x286
YM-*-005	1.5"	5.8Nm3/min	117x382x415
YM-*-008	1.5"	8.5Nm3/min	117x382x415
YM-*-010	2"	10.2Nm3/min	133x509x550
YM-*-013	2"	13Nm3/min	133x509x550
YM-*-015	2"、2.5”	15Nm3/min	150x675x715
YM-*-018	2"、2.5”	20Nm3/min	150x782x830
YM-*-022	2"、2.5”	25Nm3/min	150x936x985

Note: The YM-*-001—YM-*-013 filter is a new cast aluminum housing, and the filter larger than the YM-*-013 model is an old Hankson carbon steel housing.
