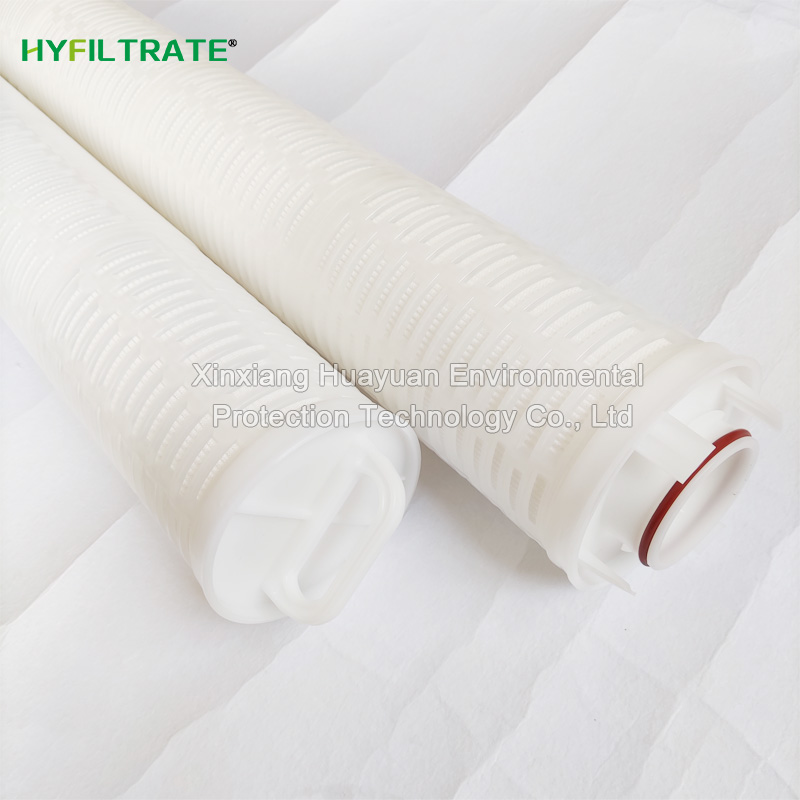

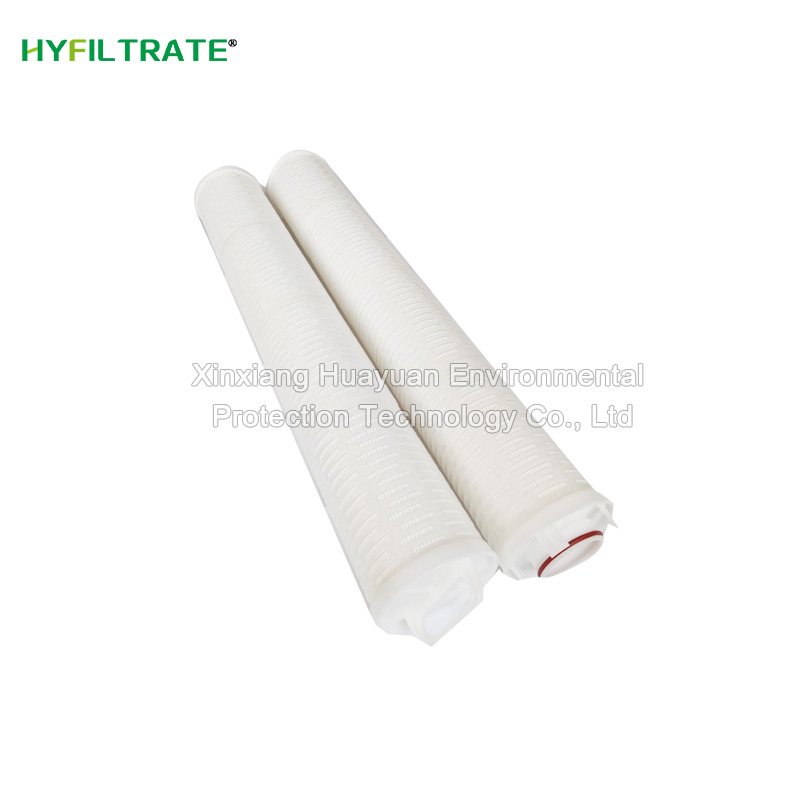

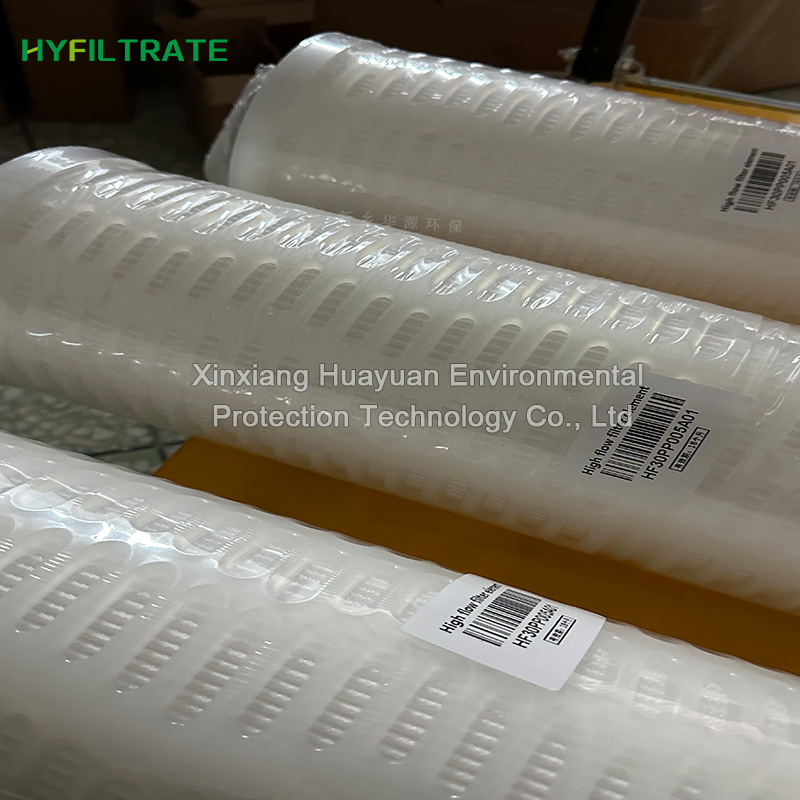

Replace 3M HF30PP005A01 high flow folding water filter cartridge It is a high flow security filter cartridge made of polypropylene melt blown material, with a filtration accuracy typically ranging from 1-100 μ m. This Filter Element is widely used in ultra large flow reverse osmosis pretreatment in industries such as power, electronics, chemical, and metallurgy, or as a security filter and pretreatment protection for ultrafiltration systems.

The HF40PP005A01 filter element has the characteristics of high flow rate, high filtration efficiency, and large pollutant holding capacity, as follows:

-High flow rate: Adopting an outward flow and inward flow direction, with a 3-inch inner diameter of the filter element, the maximum flow rate of a single filter element can reach 70 tons/hour, far exceeding the flux of conventional filter elements.

-High filtration efficiency: The filtration accuracy is usually 5 μ m, with a filtration efficiency of over 99.9% for 5-micron particles and over 99.5% for 3-micron particle impurities.

-Large pollutant holding capacity: High quality imported filter materials are selected, with loose fiber structure and high porosity, which increases the capacity for impurities. The unit area of filter material can hold high quality particle pollution, and the single filter element can hold up to 10 kilograms of pollutants.

-Excellent structural design: Adopting a handle style humanized design, the bottom is sealed with a single O-ring and the filter element is guided and positioned. When installing, insert the positioning column and rotate it 90 degrees to lock it. When replacing, rotate it 90 degrees in the opposite direction to remove it without the need for special tools.

-Long service life: The large aperture part can accommodate large particles with sufficient space, while the small aperture part can block small particles, ensuring filtration accuracy and extending service life.

-Material safety: The raw material is polypropylene, which is non-toxic, harmless, and odorless. There are no chemical substances generated during the production process, making it safe and reliable.

-Small footprint: The unique folding design increases the filtering area, maximizing the area of the filtering medium within a limited space, reducing the number of filter cartridges and housing size. Compared to similar products, it can save 33% to 50% of space.
