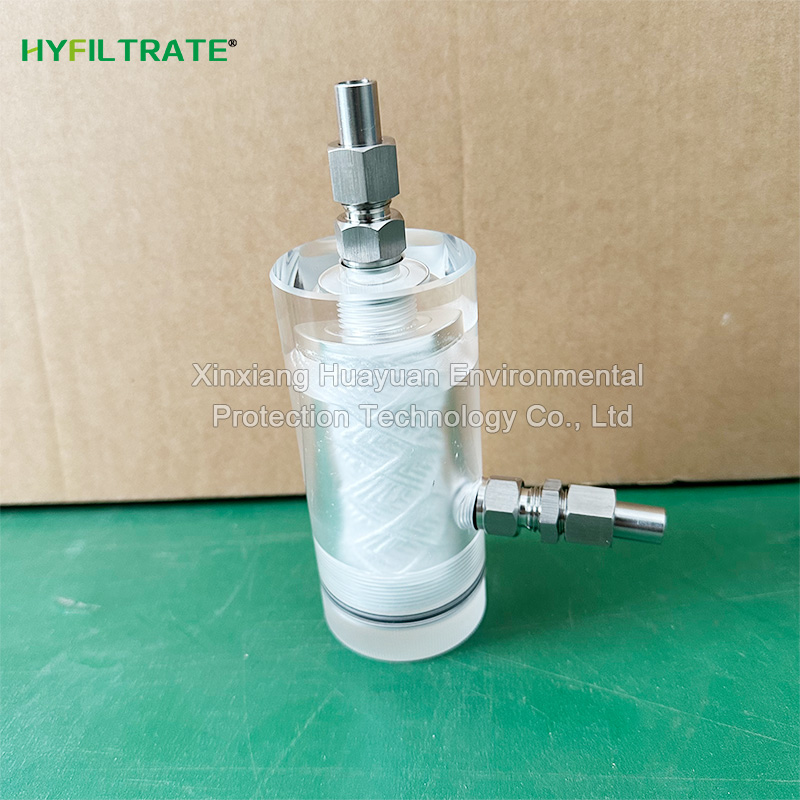

GQ-03 Water Sample Filter

-High filtration accuracy: Using ceramic and other filter materials, it can finely filter the sample water, effectively remove fine impurities, protect the instrument electrodes, and reduce or delay pollution in the instrument electrodes and electrode cups. -Good visibility: The shell is made of colorless and transparent organic glass, which allows for intuitive observation of filter contamination and facilitates timely replacement of the filter, ensuring filtration efficiency. -Reasonable struc


Basic Barameters

Model: GQ-03

Brand: HYFILTRATE

Filtration accuracy: 1-5μm

Origin: China

-High filtration accuracy: Using ceramic and other filter materials, it can finely filter the sample water, effectively remove fine impurities, protect the instrument electrodes, and reduce or delay pollution in the instrument electrodes and electrode cups.



-Good visibility: The shell is made of colorless and transparent organic glass, which allows for intuitive observation of filter contamination and facilitates timely replacement of the filter, ensuring filtration efficiency.



-Reasonable structural design: adopting a structure of lateral inlet, upper outlet, and bottom maintenance, which is convenient for operation and maintenance personnel to operate. A check valve is installed at the outlet to prevent water loss from the instrument electrode and avoid electrode damage during filter replacement.



-Convenient replacement of Filter Element: When replacing and cleaning the filter element, simply unscrew the lower cover, which is easy to operate and can quickly complete the filter element replacement, reducing maintenance time and workload.



-Convenient connection: Threaded connections are usually used, such as M14x1.5 threads, which are easy to install and disassemble in the system.



-Diverse materials to choose from: filter materials include ceramic, fiber materials, wire wound filters, etc., which can meet different user needs and usage scenarios, and adapt to various water quality conditions.


Technical Parameter

-Nominal pressure: ≤ 0.8MPa



-Test pressure: ≤ 1.0MPa



-Applicable temperature: ≤ 60 ℃



-Flow rate: approximately 2000ml/min



-Nominal diameter: Φ 8, Φ 10



-Connection form: threaded connection



-Sealing material: NBR rubber



-Filter material: optional wire wound filter, ceramic sintered filter, etc



-Filtering purpose: mainly used for filtering instrument sample water and removing impurities from it
