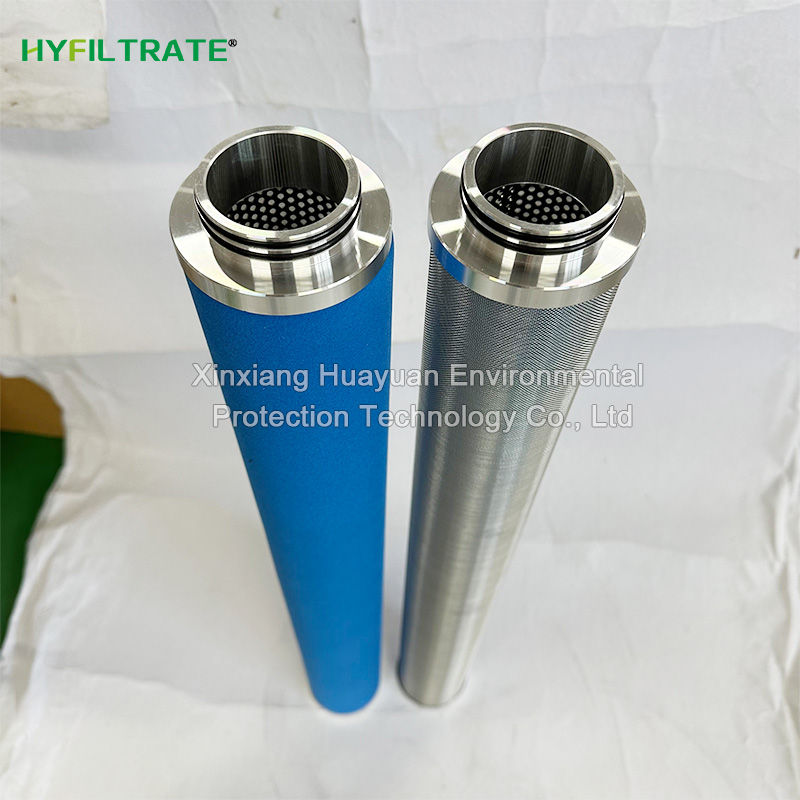

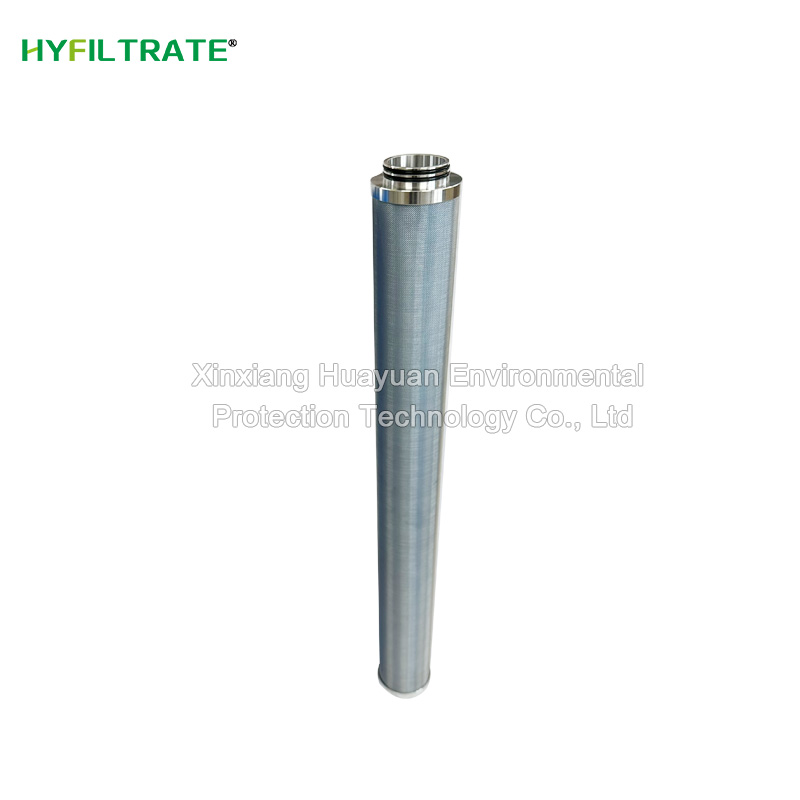

Replace Ultrafilter MF 30/30 air compressor filter element

The Replace Ultrafilter MF 30/30 air compressor filter element is packaged with high-quality materials, with high filling density and a filtration accuracy of up to 0.01 microns. It can effectively remove water, oil vapor, and other pollutants from compressed air, providing clean compressed air for the system.While ensuring efficient filtration, it can still maintain good breathability, allowing compressed air to pass smoothly with minimal pressure loss, ensuring the normal operation of equipmen

Basic Barameters

Brand: HYFILTRATE

Model: MF 30/30

Filtration accuracy: 1-50μm

Country of origin: China

Filter media: glass fibre

Filter element type: Air filter element

Length: 770mm

jack@cnxyfilter.com

Features Parameters Related

The Replace Ultrafilter MF 30/30 air compressor Filter Element is packaged with high-quality materials, with high filling density and a filtration accuracy of up to 0.01 microns. It can effectively remove water, oil vapor, and other pollutants from compressed air, providing clean compressed air for the system.

While ensuring efficient filtration, it can still maintain good breathability, allowing compressed air to pass smoothly with minimal pressure loss, ensuring the normal operation of equipment such as air compressor systems, without affecting air flow and pressure.

Technical Parameter

-Filtering accuracy: 0.01 microns, capable of effectively filtering out impurities such as small particles, oil droplets, and water droplets.

-Flow rate: about 24m ³/min, which can meet the compressed air processing needs of a certain scale.

-Working pressure: The nominal pressure is usually between 21 bar and 210 bar, which can adapt to various pressure environments in air compressor systems.

-Working temperature: generally ranging from -30 ℃ to+110 ℃, it can work stably within a wide temperature range.

-Residual oil content: The residual oil content in compressed air can be reduced to 0.003ppm to ensure the cleanliness of the output air.

-Filter material: The filter material is imported fiberglass, and the frame is usually made of stainless steel 304 or injection molded. The end cap is injection molded, and the outer filter layer may be wrapped with imported sponge.

-Dimensions: Connection size is approximately 2.402 inches, overall height is approximately 30.63 inches, and outer diameter is approximately 3.228 inches.

-Service life: Under normal use, the service life is 3000-4000 hours, which may vary depending on the usage environment and working conditions.
