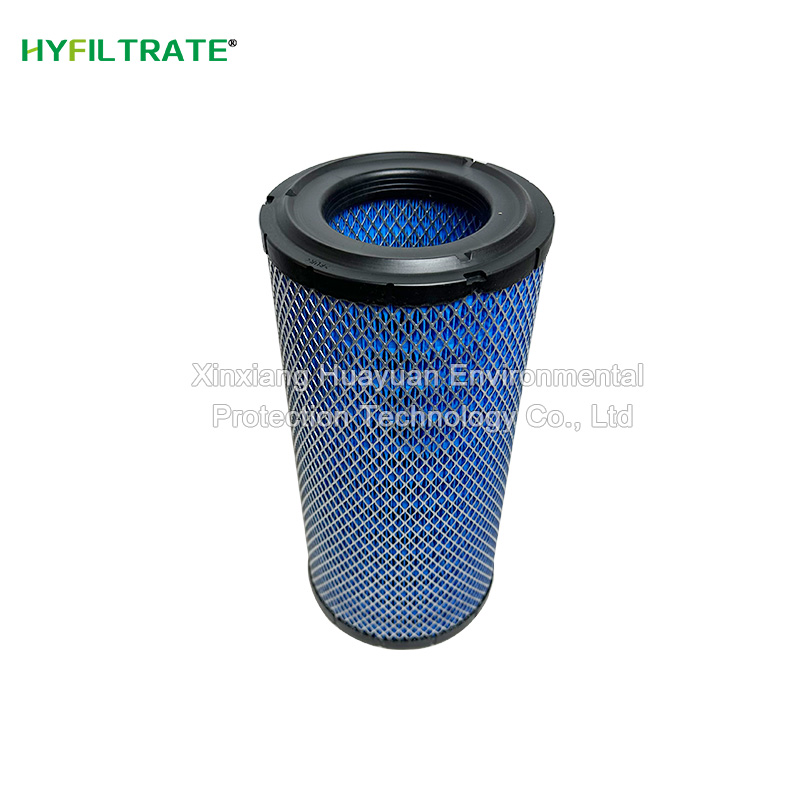

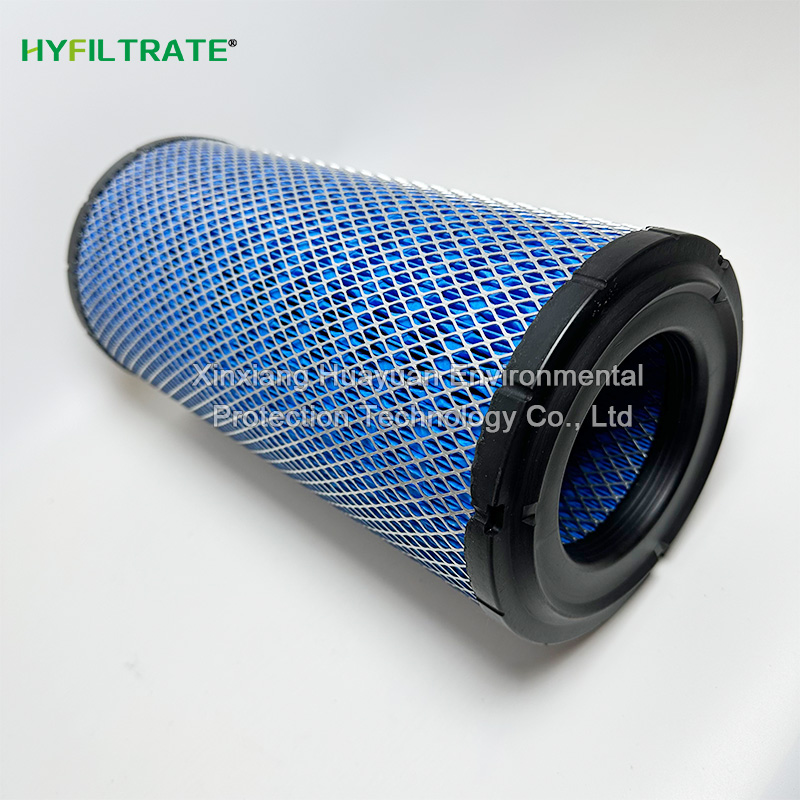

Replace SULLAIR 02250125-372 air filter cartridge

The replacement of SULLAIR 02250125-372 air filter cartridge has excellent adaptability, efficient filtering and large dust holding capacity of the filter material, sturdy and durable structure, which can effectively ensure the cleanliness of the air compressor intake and extend the service life of the equipmentfilterabilityEfficient filtration: Using high-quality filter materials, it can effectively intercept impurities such as dust, sand, pollen, etc. in the air, with high filtration accuracy,

Basic Barameters

Brand: HYFILTRATE

Model: 02250125-372

Filtration accuracy: 1-50μm

Country of origin: China

Filter media: glass fibre

Filter element type: Filter element of air compressor

Length: 345mm

jack@cnxyfilter.com

Features Parameters Related

The replacement of SULLAIR 02250125-372 Air Filter cartridge has excellent adaptability, efficient filtering and large dust holding capacity of the filter material, sturdy and durable structure, which can effectively ensure the cleanliness of the air compressor intake and extend the service life of the equipment

filterability

Efficient filtration: Using high-quality filter materials, it can effectively intercept impurities such as dust, sand, pollen, etc. in the air, with high filtration accuracy, providing clean air intake for the air compressor, reducing the wear of internal components by impurities, and improving the stability and service life of equipment operation.

Large dust holding capacity: With a large dust holding space, it can maintain stable filtration efficiency for a long time, reduce the frequency of Filter Element replacement, and lower maintenance costs and downtime.

Structure Design

Durable and sturdy: The filter structure is designed reasonably, with a sturdy outer frame and support structure that can withstand certain pressure and vibration. It is not easily damaged or deformed under complex working conditions, ensuring the reliability of the filter during the operation of the air compressor.

Good sealing: The connection part with the air compressor has excellent sealing design, which can effectively prevent unfiltered air from bypassing and ensure that the air entering the air compressor is fully filtered.

Technical Parameter

The technical parameters of the 02250125-372 air filter are as follows:

Filtering accuracy: The filtering accuracy can reach 5 μ m or even lower, effectively intercepting most of the impurity particles in the air. The filtering accuracy of this filter element is likely within this range, ensuring that the air entering the air compressor is clean.

Rated flow rate: Suitable for different power air compressors with varying flow rates. Generally, the rated flow rate of the filter element for medium and small power air compressors may range from a few cubic meters to over ten cubic meters per minute, which can meet the intake requirements of the corresponding equipment.

Initial resistance: The initial resistance is usually low, such as between 100-300Pa, to reduce the energy consumption of the air compressor intake. As the filter material adsorbs more impurities during use, the resistance will gradually increase.

Service life: Under normal working environment and usage conditions, the service life of the Sullair air filter is about 1000-2000 hours, or a cumulative filtration of a certain volume of air. The actual service life is affected by factors such as air quality in the usage environment and the operating time of the air compressor.

Filter material: High performance paper filter materials are commonly used, with special surface treatment to enhance the ability to adsorb impurities and resist moisture. Some materials such as synthetic fibers are also used to improve filtration efficiency and dust holding capacity.

Applicable temperature range: It can usually adapt to environmental temperatures ranging from -20 ℃ to 80 ℃ to ensure normal operation in different regions and working conditions.
